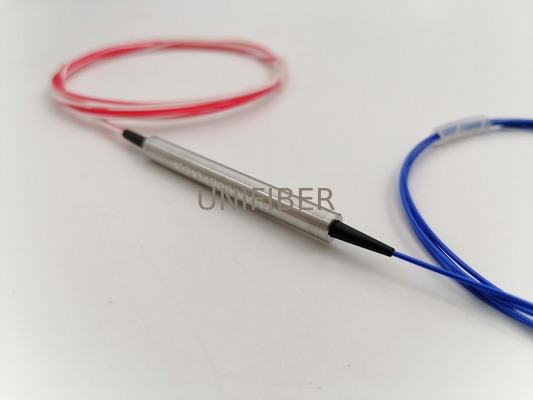

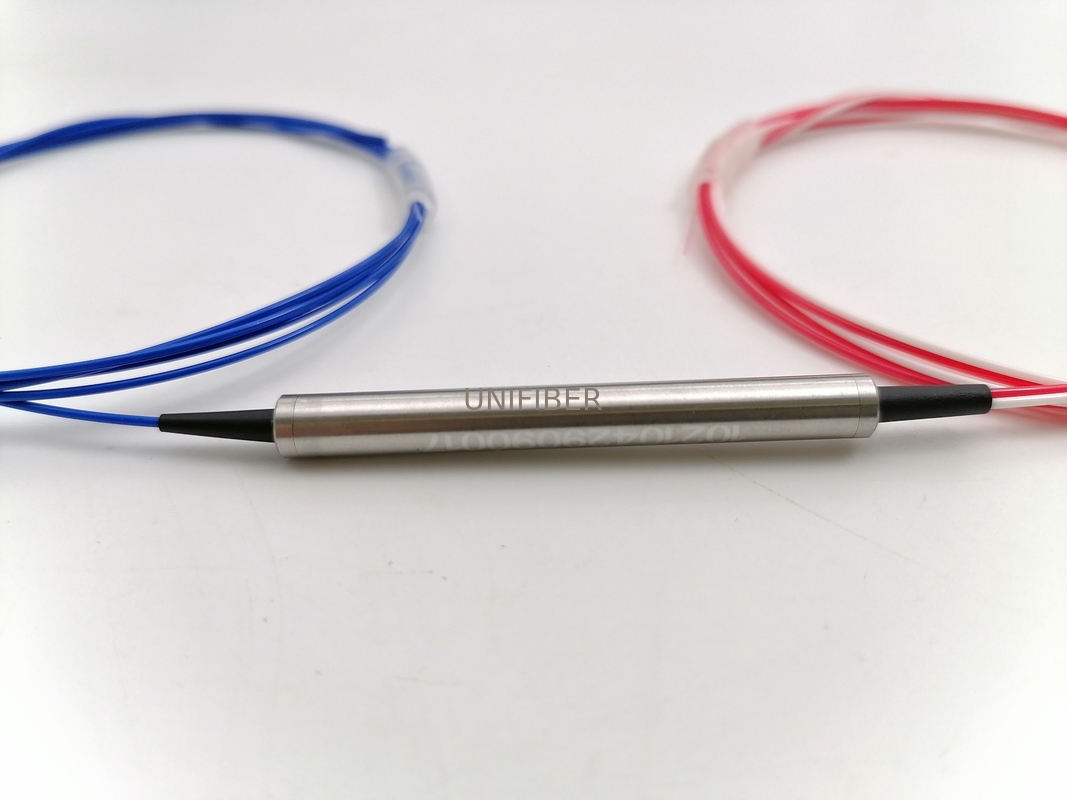

3 Ports 1550nm Polarization Insensitive Optical Circulator

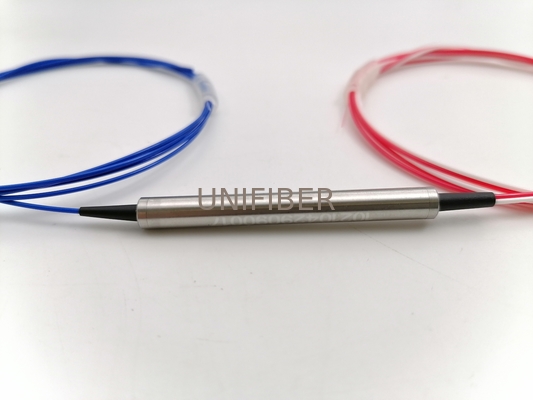

Large Image : 3 Ports 1550nm Polarization Insensitive Optical Circulator

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	3 Ports Optical Circulator

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable

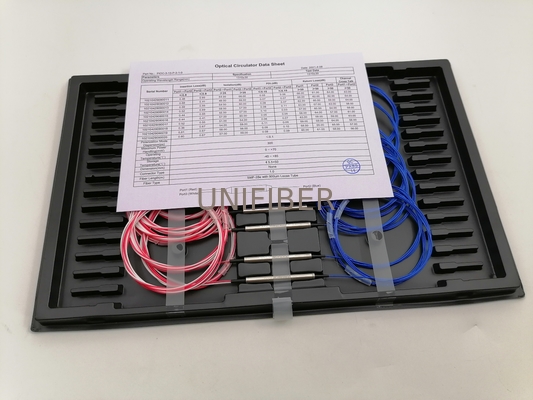

Packaging Details:	Blister Case
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Products:	3 Ports Fiber Optical Circulator	Ports:	3 Ports
Grade:	P Grade	Pigtail Style:	900um Jacket
Wavelength:	1550nm Or 1310nm	Connector:	None

Polarization Insensitive Optical Circulator utilizes proprietary designs and metal bonding micro optics packaging. It’s a compact, highperformance components, with high isolation, low insertion loss, low PDL, high stability and reliability. It is widely used in combination with fiber gratings and other reflective components in DWDM systems, wavelength add/drop, high speed systems, bi-direction communication systems, dispersion compensation, EDFA application and optical time domain reflectometer (OTDR) measurements.

Features

Low Insertion Loss

Wide Band High Isolation

Low PDL

High Stability and Reliability

Epoxy-free on Optical Path

Application

Optical Amplifier
Metro Area Network

Wavelength Add/Drop
Dispersion Compensation

Bi-Direcation Communication

Specification

Parameter		P Grade
Configuration		Port 1 to Port 2 to Port 3
Operation Wavelength (nm)		1310±30 or 1550±30
Insertion Loss (dB)	Typical	0.6
	Maximum	0.8
Typical Isolation (dB)		≥50
Minimum Isolation (dB)		≥40
Cross Talk (dB)		≥50
Polarization Dependent Loss (dB)		≤0.15
Polarization Mode Dispersion(dB)		≤0.1
Return Loss(dB)		≥50
Power Handling (mW)		300
Opterating Temperature (℃)		-10~+75
Package dimension (mm) (Steel tube)		Φ5.5xL50
Package dimension (mm) (ABS box)		90x20x10
