1310nm or 1550nm 3 Port Polarization-Insensitive Optical Circulator SC/APC

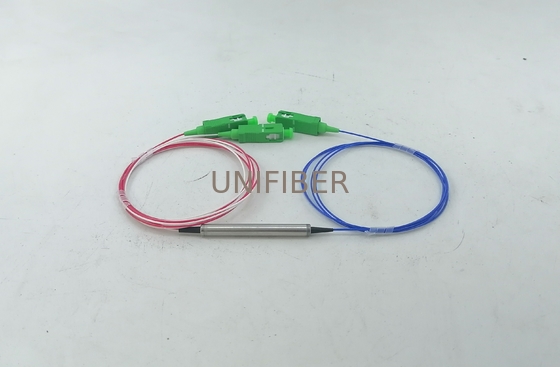

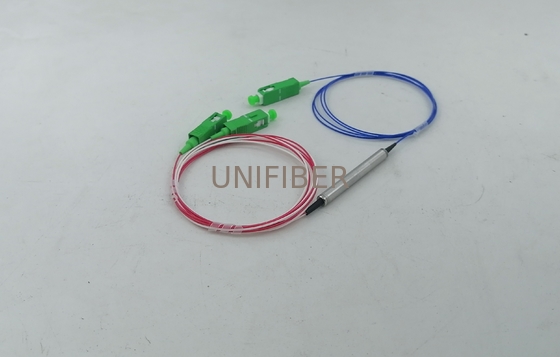

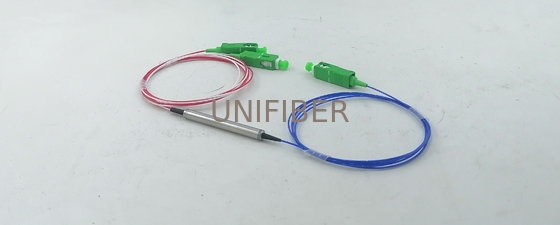

Large Image : 1310nm or 1550nm 3 Port Polarization-Insensitive Optical Circulator SC/APC

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	3 Port Polarization-Insensitive Optical Circulator

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	100pcs/day

Contact Now

Detailed Product Description

Products:	3 Port Optical Circulator	Ports:	3
Pigtail Style:	900um	Connector:	SC/APC
Wavelength:	1310nm Or 1550nm	Application:	Wavelength Add/Drop

3 Ports Optical circulator is a special fiber-optic component that can be used to separate optical signals that travel in opposite directions in an optical fiber, analogous to the operation of an electronic circulator. An optical circulator is a three-port device designed such that light entering any port exits from the next. This means that if light enters port 1 it is emitted from port 2, but if some of the emitted light is reflected back to the circulator, it does not come out of port 1, but instead exits from port 3.

Features

Low Insertion Loss

Low PDL

High Channel Isolation

Compact Package

High Reliability & Stability

Cost Effective

Application

Add-Drop Multiplexing

Fiber Sensors

Bidirectional Signal Transmission Systems

Bidirectional Pumping

Coupling In-Line Chromatic Dispersion Compensation Devices

Specification

Parameter		P Grade
Configuration		Port 1 to Port 2 to Port 3
Operation Wavelength (nm)		1310±30 or 1550±30 or 1585±30
Isolation (dB)	Typical	0.6
	Maximum	0.8
Typical Isolation (dB)		≥50
Minimum Isolation (dB)		≥40
Cross Talk (dB)		≥50
Polarization Dependent Loss (dB)		<0.15
Polarization Mode Dispersion		<0.1
Return Loss(dB)		≥50
Power Handling (mW)		500
Opterating Temperature (℃)		-10~+75
Package dimension (mm)		Φ5.5xL50 or Φ5.5xL63
