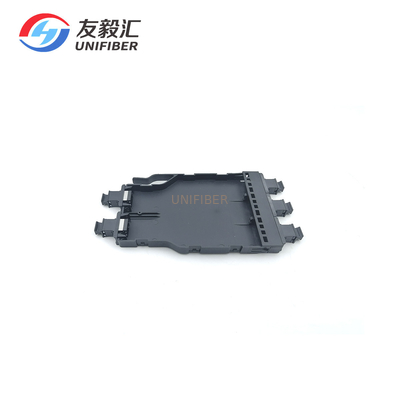

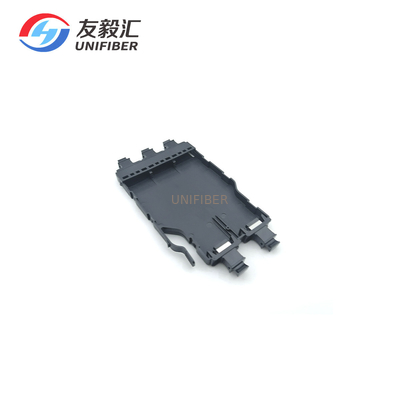

MPO/MTP To MPO/MTP Fiber Cassette Module Black SPCC For HD FO Panel

Large Image : MPO/MTP To MPO/MTP Fiber Cassette Module Black SPCC For HD FO Panel

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	MPO/MTP HD Fiber Cassette Module

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton Box
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	MPO To MPO Fiber Cassette Module	Model:	MP6
Material:	SPCC	Color:	Black
Panel Height:	1U 2U 4U	Capacity:	144 288 576F
High Light:	Black Fiber Cassette Module , MPO MTP Fiber Cassette Module , SPCC Fiber Optic Cassette Module

Cassette for HD FO Panel MPO/MTP to MPO/MTP

Unifiber offers a variety of MPO fiber optic cassette modules in single mode and multimode. The cassettes always come as pre-terminated, it is simple and convenient installation, with MPO or MTP adapter available.

FEATURES:
Easy to use, convenient installation and time-save
Improve cable manageability and spce-saving
Suitable for 19” HD Panels
MPO or MTP adapter available

APPLICATIONS:
Data center
Telecommunications
Local Area Network
Data communication network

Specification:

Connector Type	12-Fiber Or 24Fiber MPO/MTP (non-pinned)
Polish	PC(MM); APC(SM)
Housing Colour	MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow)
Insertion Loss, Typical (MTP/MPO)	≤ 0.10 dB
Insertion loss, max. (MTP/MPO)	≤ 0.3 dB
Return loss (MTP/MPO SM)	PC >55dB; APC> 60dB
Insertion Loss, Typical (LC/SC)	≤ 0.10 dB
Insertion loss, max. (LC/SC)	≤ 0.3 dB
Return loss (LC/SC SM)	PC >55dB; APC> 65dB
Durability(500 Matings)	< 0.2dB
