Product: | MPO/MTP Fiber Optic Patch Panel | Material: | Cold Rolled Steel Plate |
---|---|---|---|
Connector: | LC Or SC | Capacity: | 144 Ports |
Cassette Modules: | 12x12F Or 18x8F | Color: | Black Or Customized |
High Light: | Three Layer Fiber Chassis,1U Fiber Chassis |
19" Rack Mount MPO/MTP Cassettes fiber patch panel
MP6 is a modular, standard-based pre-terminated system that increases port density, improves connector access, and saves data center space. the MP6-1U chassis system can accommodate up to 12x12F modules or 18x8F core modules. it can quickly and effectively control and maintain multiple fiber connections to support regular movement, addition and change. provides integrated fiber management functions to ensure the safety of the backbone cable, and a separate fiber optical cord maintains a safe bending radius during the fiber routing process.
Product Features
1U 19" Rack mount.
Three-layer guide rail drawing structure.
The patch panel can install up to 144 core fiber cord.
Splicing with SC, MTP/MPO and LC adapter panel strips.
Removable upper cover.
Laminated structure, easy to operate.
Material: cold rolled steel plate.
Color: black (fine sand grain spray).
Applications
Ethernet, LAN, WAN and Fibre Channel.
Data communication, telecommunication network.
Data center and infrastructure.
Specification
Capacity
|
144F-1U 288F-2U 576F-4U |
Color
|
Black or Customized |
Fiber Cassette Module
|
12pcs 12ports Cassette Module or 18pcs 8ports Cassette Module |
Cassette version | Perterminated or Splicing |
Connector Type | LC or SC |
Dimension(WxDxH):
|
483mm×350mm×1U |

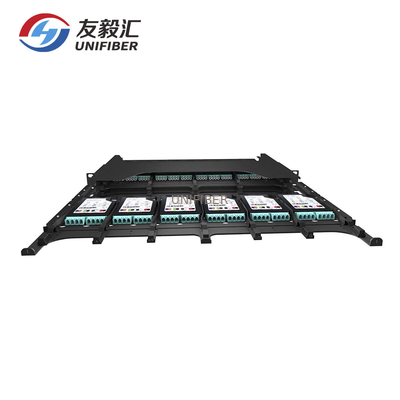

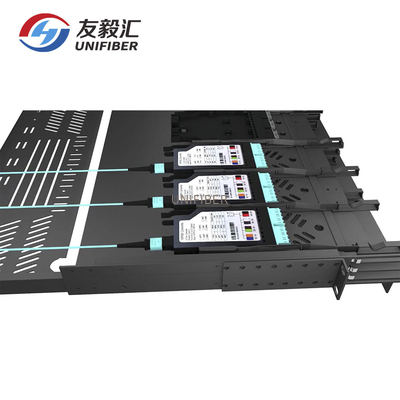

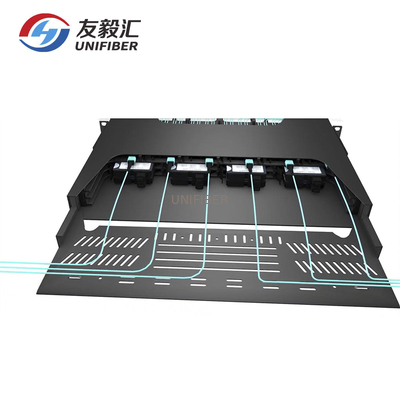

Picture of high density fiber enclosure 144 core
