Product Details:
Payment & Shipping Terms:
|

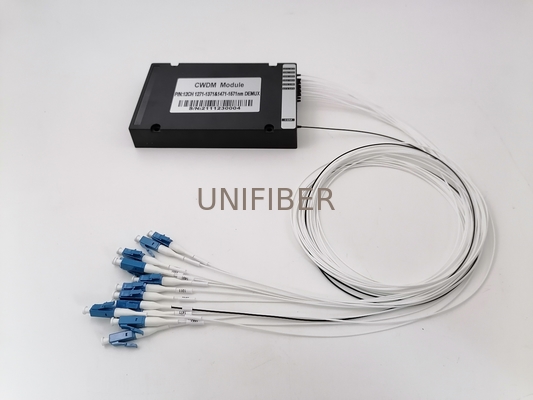

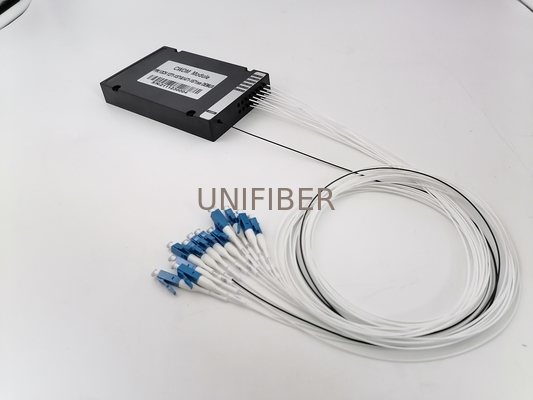

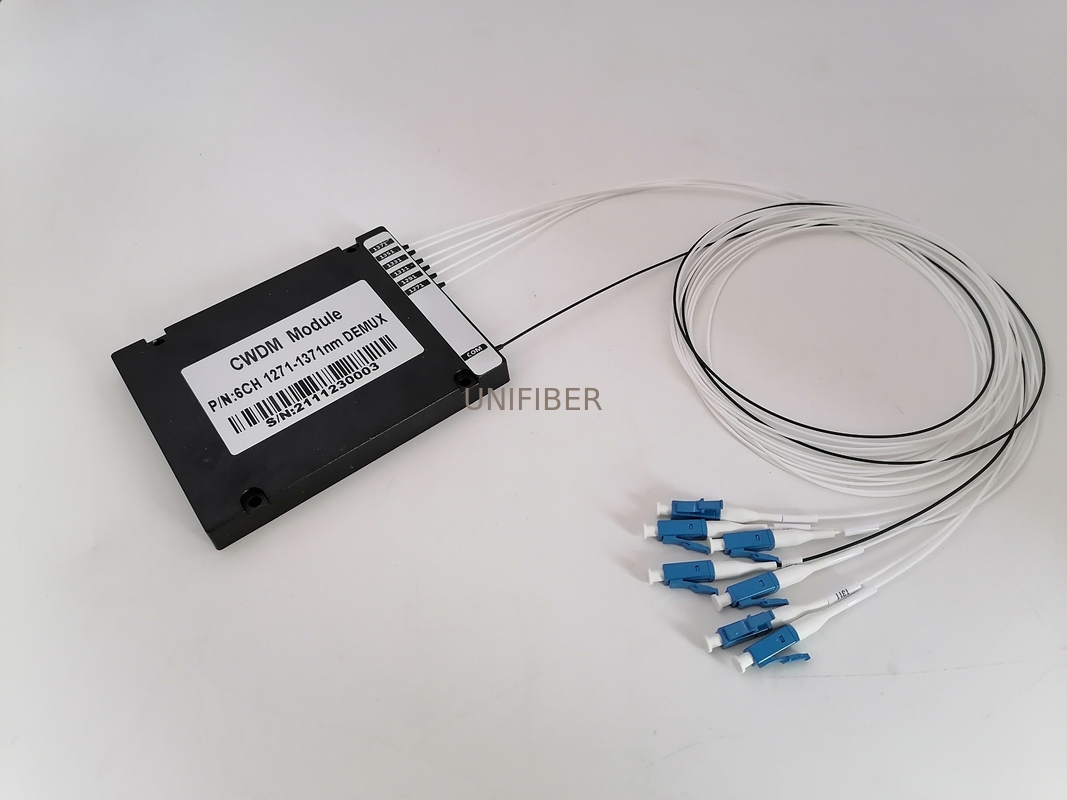

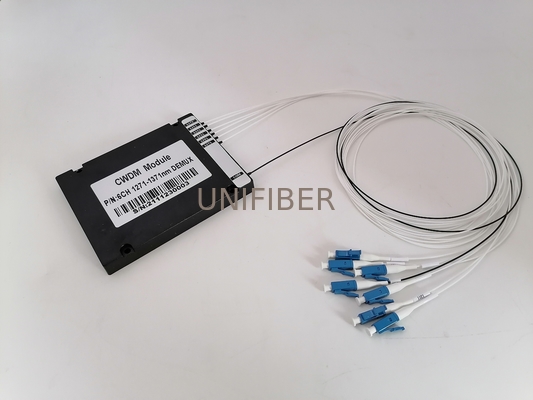

| Rroduct: | CWDM Mux Demux Module | No Of Channels: | 4,8,16,18 |
|---|---|---|---|
| Package: | ABS Module | Connector: | LC/UPC |
| Fiber Type: | 900um Loose Tube | Wavelength: | 1270~1610nm |
Features
High Stability & Reliability
Low Insertion Loss
Excellent Channel Isolation
Low Cost
Application
CWDM Channels Add/Drop
CWDM
CATV Fiber Optical Links
Accessing LAN Networks
Short-Distance Communications
Specification
| Parameter | 4 Channels | 8 Channels | 16 Channels | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength(nm) | 1270~1610 or 1271~1611 | ||||||
| Channel Spacing(nm) | 20 | ||||||
| Channel Passband (@-0.5dB bandwidth (nm) | ≥13 | ||||||
| Insertion Loss(dB) | ≤1.5 | ≤2.5 | Low≤3.5 Standard≤4.5 | ||||
| Isolation(dB) | Adjacent | ≥30 | |||||
| Non-adjacent | ≥40 | ||||||
| Insertion Loss Temperature Sensitivity(dB) | ≤0.5 | ||||||
| Wavelength Temperature Shifting (nm/℃) | ≤0.002 | ||||||
| Polarization Dependent Loss(dB) | ≤0.2 | ||||||
| Polarization Mode Dispersion(ps) | ≤0.1 | ||||||
| Directivity(dB) | ≥50 | ||||||
| Return Loss(dB) | ≥45 | ||||||
| Maximum Power Handling (mW) | 300 | ||||||
| Opterating Temperature(℃) | -10~+70 | ||||||
| Storage Temperature (℃) | -40~+85 | ||||||
| Package dimension (mm) | L100×W80×H10 | L120×W80×H18 | |||||
| 19" 1U Rackmount | |||||||
1,Above specifications are for devices without connector.
2,Specifications may change without notice.
