Product Details:
Payment & Shipping Terms:
|
| Product: | Polarization Maintaining PM Optical Isolator | Wavelength: | 1310nm 1550nm |
|---|---|---|---|
| Axis Alignment: | Fast Axis Or Both Axis Working | Isolator Type: | Single Stage Or Dual Stage |
| Pigtail Type: | Bare Fiber Or 900um Loose Tube | Fiber Type: | PM Panda Fiber |
| High Light: | Polarization Fiber Optical Isolator,900um Polarization Independent Isolator,Polarization High Power Optical Isolator |
||
Polarization Maintaining Fiber Optical Isolator Dual Stage 900um
Description of Polarization Maintaining PM Optical Isolator Single Stage or Dual Stage
The polarization-maintaining isolator uses panda polarization-maintaining fiber and maintains the input light polarization with a high extinction ratio, it is a passive optical device that allows only one-way light to pass through. Unifiber provides single stage and dual stage isolator with different wavelength including 1030nm 1040nm 1050nm 1053nm 1060nm 1064nm 1310nm 1480nm 1550nm or others, it usually used to protect lasers or amplifiers from back-reflected light.
Feature
High IsolationLow Insertion Loss
High Return Loss
High stability and reliability
Epoxy free on optical path
Application
Fiber sensor
Fiber Laser
Fiber optic Amplifiers
Optical network
Power monitoring
Specification

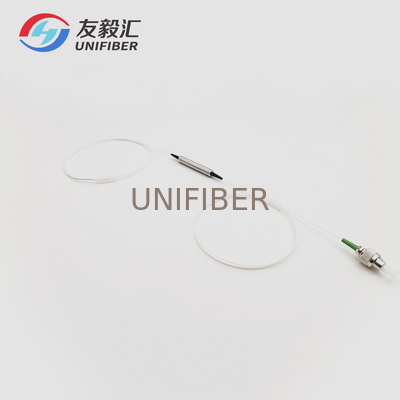

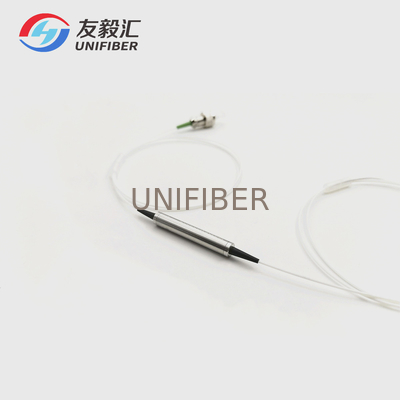

Picture of Single/Dual Stage Polarization Maintaining PM Fiber Optic Isolator
