1310nm or 1550nm In-Line Fiber Optic Polarizers 900um SM Fiber In PM Fiber Out LC/UPC

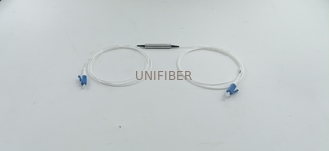

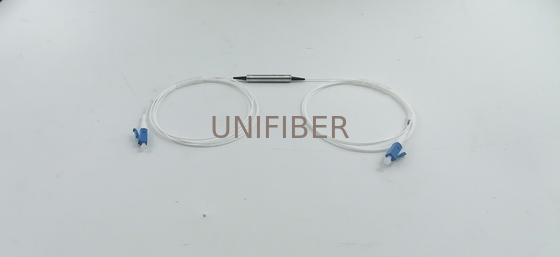

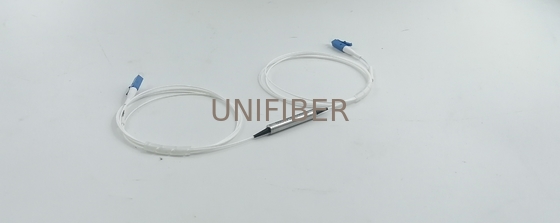

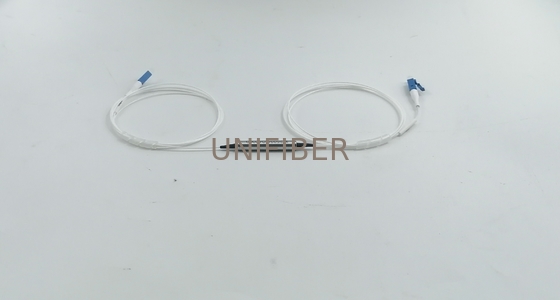

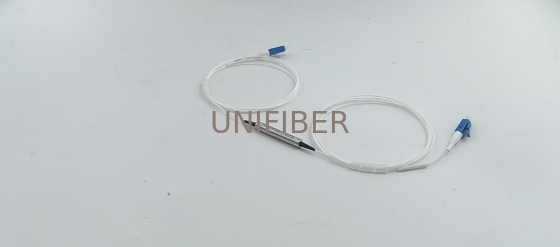

Large Image : 1310nm or 1550nm In-Line Fiber Optic Polarizers 900um SM Fiber In PM Fiber Out LC/UPC

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ROHS
Model Number:	In-Line Fiber Optic Polarizers

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	100pcs/day

Contact Now

Detailed Product Description

Product:	In-Line Fiber Optic Polarizers	Wavelength:	1310nm/1480nm/1550nm
Max. Optical Power:	300mW	Pigtail Style:	900um Loose Tube
Connector Type:	LC/UPC	Min. Extinction Ratio, 23 ℃:	28dB

The In-line Polarizer is designed to pass light with one specific polarization while blocking the other polarization. It can be used to convert unpolarized light into polarized light with high extinction ratio. It can also be used to enhance the extinction ratio of signals with its excellent polarization properties. It is ideal for high speed communication systems and test instrumentations where high polarization extinction ratio is required.

Feature

High Isolation

Low Insertion Loss

High Return Loss

High stability and reliability

Epoxy free on optical path

Application

Fiber optic Amplifiers

Optical network

Power monitoring

Fiber sensor

Specification

Specifications
Parameter	Unit	Single Stage
Center Wavelength (λc)	nm	1310, 1480 or 1550
Operating Wavelength Range	nm	λc ± 50
Typ. Insertion Loss, 23 ℃	dB	0.3
Max. Insertion Loss	dB	0.5
Typ. Extinction Ratio, 23 ℃	dB	30
Min. Extinction Ratio, 23 ℃	dB	28
Max. Optical Power (Continuous Wave)	mW	300
Min. Return Loss	dB	50
Operating Temperature	℃	-5 to +70
Storage Temperature	℃	-40 to +85
