6 Port Fiber Adapter Module Single Mode Duplex LC/UPC

Large Image : 6 Port Fiber Adapter Module Single Mode Duplex LC/UPC

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	6 Port Fiber Adapter Module

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Blister Case
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Product:	6 Port Fiber Adapter Module	Material:	Cold Roll Steel
Adapter:	Single Mode LC/PC Duplex Adapter	Ports:	6
Finish:	Powder Coat Matt Finish	Application:	Fiber Patch Panels

Adapter Plates are designed to hold individual mating sleeves or fiber optic adapters. A mating sleeve is a mechanical device designed to align two fiber optic connectors. Adapter plates are typically installed within fiber optic enclosures and patch panels. Adapter plates are offered with a variety of configurations with varying connector types, fiber types, port density, and colors. They are typically designed with options for 6, 8, 12 or 24 total fibers. Note: Not all adapter plates are designed to fit all enclosures. Adapter plates from some manufacturers are not ‘LGX’ compatible, and should only be installed within that manufacturer’s specifically recommended enclosures or patch panels. UNIFIBER’ adapter plates use an industry standard ‘LGX’ footprint, which are installable within any OEM equipment that also uses an ‘LGX’ compatible footprint.

Features

White-colored number labeling for easy identification of connectors

Can be ordered either loaded type or unloaded type

Different connectors with LC/SC/FC/ST for options Fast and easy installation for fiber optic patch panel

Customized design avaliable

Application

Telecommunication.

CATV. LAN & WAN.

Network. Broadband.

Specification

Front Connector	LC/SC/ST/FC
Channel Insertion Loss	≤ 0.2dB
Cassette Material	Metal (SPCC)
Fiber Type	SM and MM optional
Return Loss	SM≥ 55dB MM≥ 35dB
Color	Black

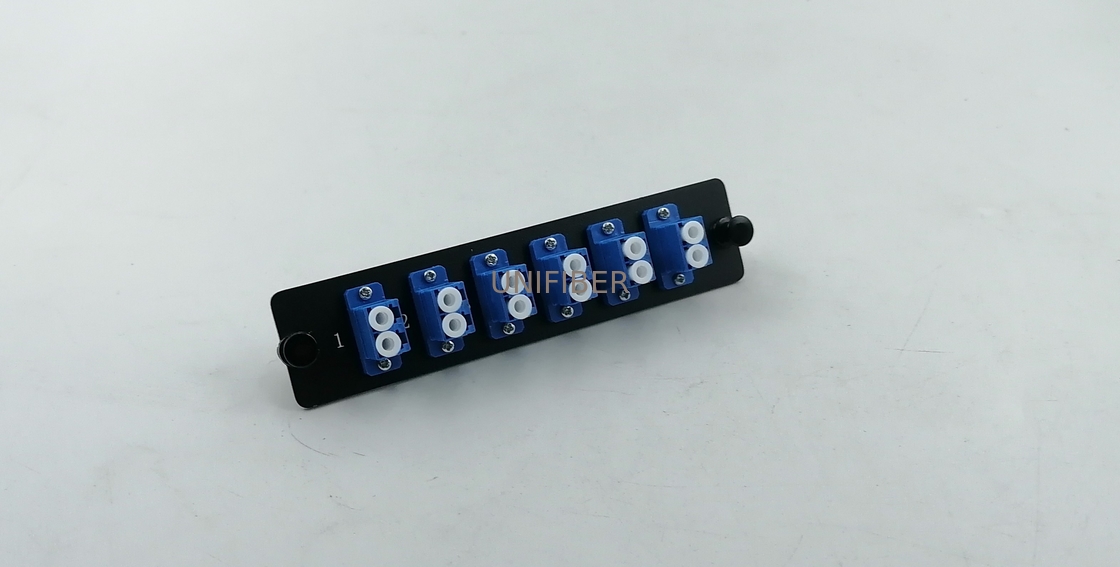

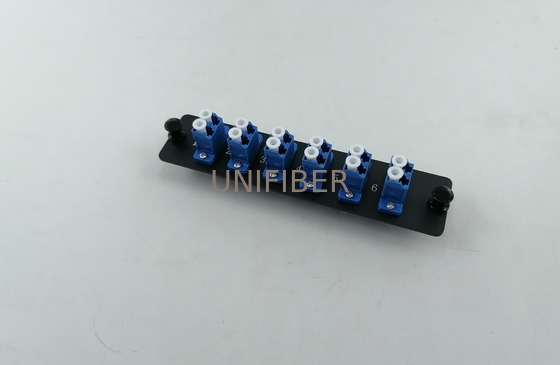

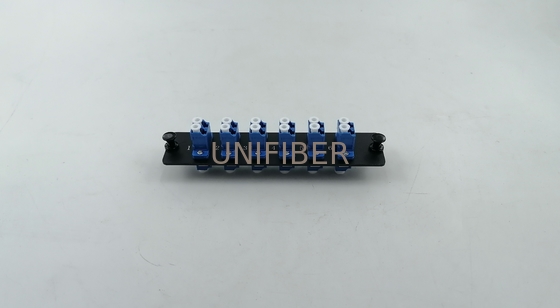

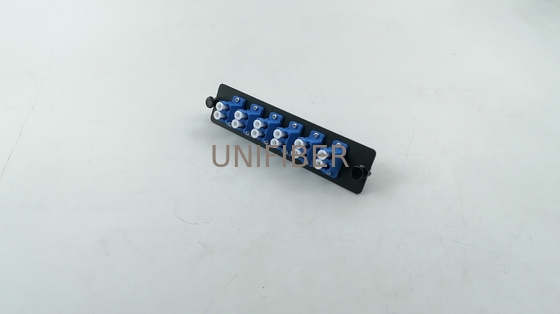

Picture of 6 Port Fiber Adapter Module Single Mode Duplex LC/UPC

6 Port Fiber Adapter Module Single Mode Duplex LC/UPC 0
