40CH Athermal AWG 100Ghz DWDM Mux Demux Flat top C21~C60 LC/UPC 1U Rackmount

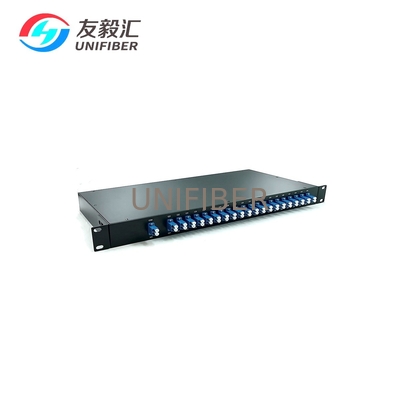

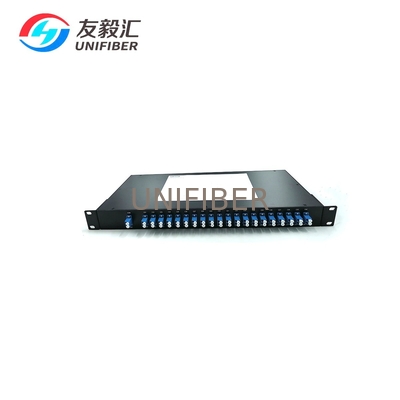

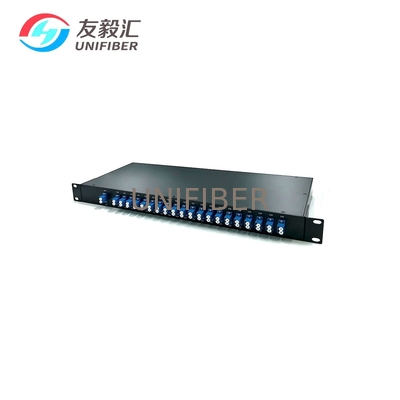

Large Image : 40CH Athermal AWG 100Ghz DWDM Mux Demux Flat top C21~C60 LC/UPC 1U Rackmount

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	40CH Athermal AWG 100Ghz DWDM Mux Demux

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Blister Case
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	100pcs/day

Contact Now

Detailed Product Description

Product:	100Ghz AAWG DWDM Mux Demux	Number Of Channels:	40 Channels
Configuration:	Mux+Demux	1st Channel:	C21 C22 C23...C59 C60 C61
Fiber Type:	0.9mm	Connector:	LC UPC

40/48CH 100G Athermal AWG DWDM Mux/Demux Module in 1U Rackmount is a highperformance DWDM mux/demux device operating on 100GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths. Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics.These AWG offer low insertion loss,excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package.

Features

MUX/DEMUX Functionality
Compact Package
Multi-channel Number
Telcordia GR-1209/1221 compliant
Athermal Design, Electrical Power is Not Required
Low Insertion Loss,Low PDL,High Channel Isolation

Application

DWDM Transmission
Metro Area Networks
Long-haul Networks
PON Networks
Building Blocks for ROADM
Building Blocks for VMUX

Specification

Parameter	Specification			Units	Notes
Parameter	Min	Type	Max	Units	Notes
Channel Spacing	100			Ghz
Nos of Channel	40/48			Channels
Channel Frequencies	ITU Grid			THz
Available Channel Frequency Range	191.70		196.40	THz
Channel Passband	-12.5		+12.5	Ghz
Channel Passband	-0.10		+0.10	nm
Center Wavelength Accuracy	-0.05		+0.05	nm
Insertion Loss			5.5	dB	@Center Wavelength
Insertion Loss			6.0	dB	Full Bandwidth
Passband Ripple		1.0	1.5	nm	Full Bandwidth
Bandwidth @1.0dB	0.32			nm
Bandwidth @3.0dB	0.58			nm
Bandwidth @20dB			1.20	nm
Insertion Loss Uniformity at ITU			1.50	dB
Polarization Dependent Loss			0.5	dB
Adjacent Channel Isolation	27	30		dB
Non-Adjacent Channel Isolation	30	35		dB
Total Cross Talk	24	24		dB
Directivity	45			dB
Return Loss with connectors	40	45		dB
Chromatic Dispersion	-20		+20	ps/nm
PMD			0.5	ps
Optical Power Handling of Common Port			24	dBm

Channel	ITU	Frequency	Wavelength	Channel	ITU	Frequency	Wavelength
No.	Channel	THz	nm	No.	Channel	THz	nm
1	60	196	1529.553	25	36	193.6	1547.715
2	59	195.9	1530.334	26	35	193.5	1548.515
3	58	195.8	1531.116	27	34	193.4	1549.315
4	57	195.7	1531.898	28	33	193.3	1550.116
5	56	195.6	1532.681	29	32	193.2	1550.918
6	55	195.5	1533.465	30	31	193.1	1551.721
7	54	195.4	1534.25	31	30	193	1552.524
8	53	195.3	1535.036	32	29	192.9	1553.329
9	52	195.2	1535.822	33	28	192.8	1554.134
10	51	195.1	1536.609	34	27	192.7	1554.94
11	50	195	1537.397	35	26	192.6	1555.747
12	49	194.9	1538.186	36	25	192.5	1556.555
13	48	194.8	1538.976	37	24	192.4	1557.363
14	47	194.7	1539.766	38	23	192.3	1558.173
15	46	194.6	1540.557	39	22	192.2	1558.983
16	45	194.5	1541.349	40	21	192.1	1559.794
17	44	194.4	1542.142	41	20	192	1560.606
18	43	194.3	1542.936	42	19	191.9	1561.419
19	42	194.2	1543.73	43	18	191.8	1562.233
20	41	194.1	1544.526	44	17	191.7	1563.047
21	40	194	1545.322	45	16	191.6
22	39	193.9	1545.322	46	15	191.5
23	38	193.8	1546.119	47	14	191.4
24	37	193.7	1546.917	48	13	191.3

AWGM	××	×	×	×	××	×××	×	×
	Package	Module	Channel Space	Pass band Profile	Channel	Start	Com	Pass
	Package	Type	Channel Space	Pass band Profile	Number	Channel	Com	Pass
A=Athermal	1U=1U	M=Mux	1=100GHz	F=Flat-top	32=32	C17=C17	0=None	0=None
A=Array	2U=2U	D=Demux	2=50GHz	G=Gauss	40=40	C21=C21	1=FC/UPC	1=FC/UPC
W=Wavelength	ST=Box	1=Mux and Demux			48=48		2=FC/APC	2=FC/APC
G=Grating							3=SC/UPC	3=SC/UPC
M=Module							4=SC/APC	4=SC/APC
							5=LC/UPC	5=LC/UPC
							6=LC/APC	6=LC/APC
