Product Details:
Payment & Shipping Terms:
|
| Product: | Ultra High Density MPO/MTP Fiber Patch Panel | Rack Height: | 1U/2U/4U |
|---|---|---|---|
| Capacity: | 1U-144F, 2U-288F And 4U-576F | Cassette Module: | 8/12/16/24 Fibers |
| Material: | Cold Rolled Steel | Installation: | 19-inch Rack Rail |

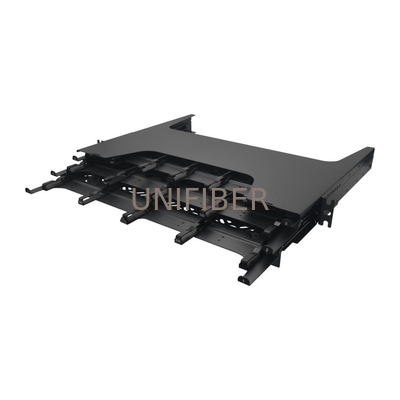

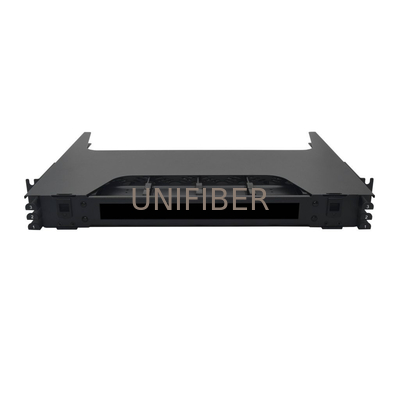

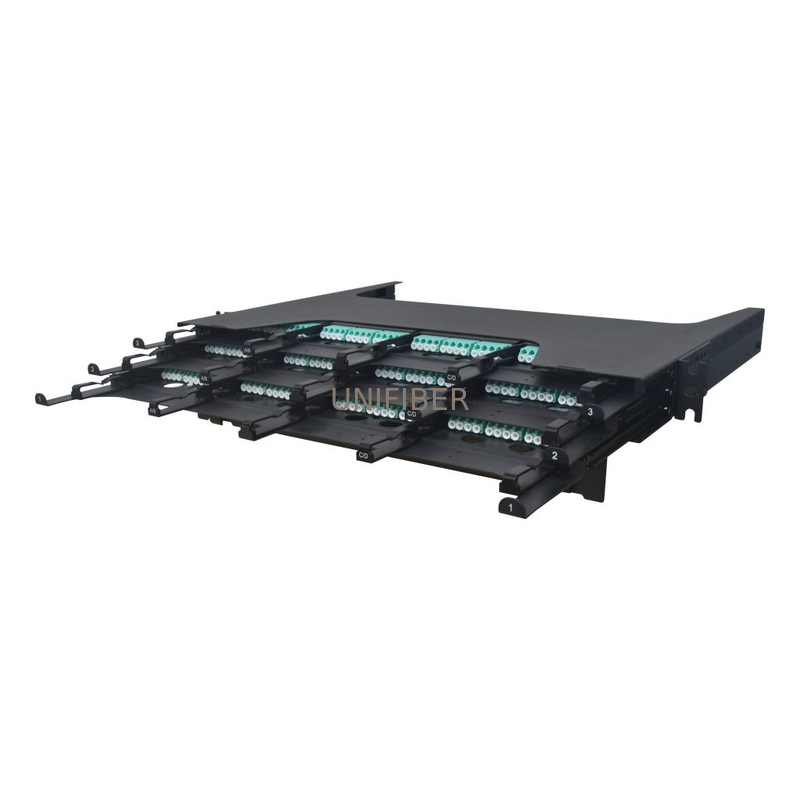

The modular design and the front and rear pull-out mechanical structure are the biggest features that differentiate this product from competing products, including rapid deployment, rapid response, and accurate troubleshooting. The optional LC adapter supports up to 1U-144F, 2U-288F, and 4U-576F, and the optional CS adapter supports up to 1U-216F.
Feature
Modular design, can be pulled out by rails
Each floor can install 4 or 6 cassettes
Provides front and rear cable management functions* 1U supports up to 144-core LC or 216-core CS connections
2U supports up to 288-core LC, and 4U supports 576-core LC connections.
1U supports up to 1728-core MPO/MTP access
Support MTP/MPO-MTP/MPO conversion
Optional MTP/MPO/LC/CS connection
Support pigtail splicing
Specification
