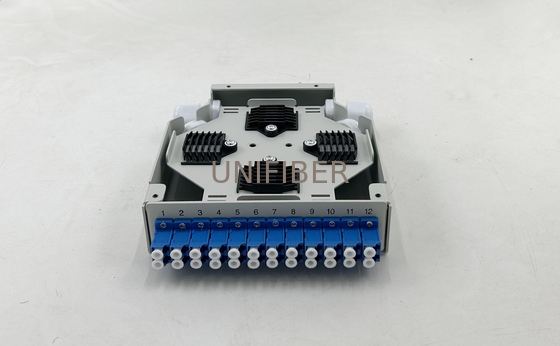

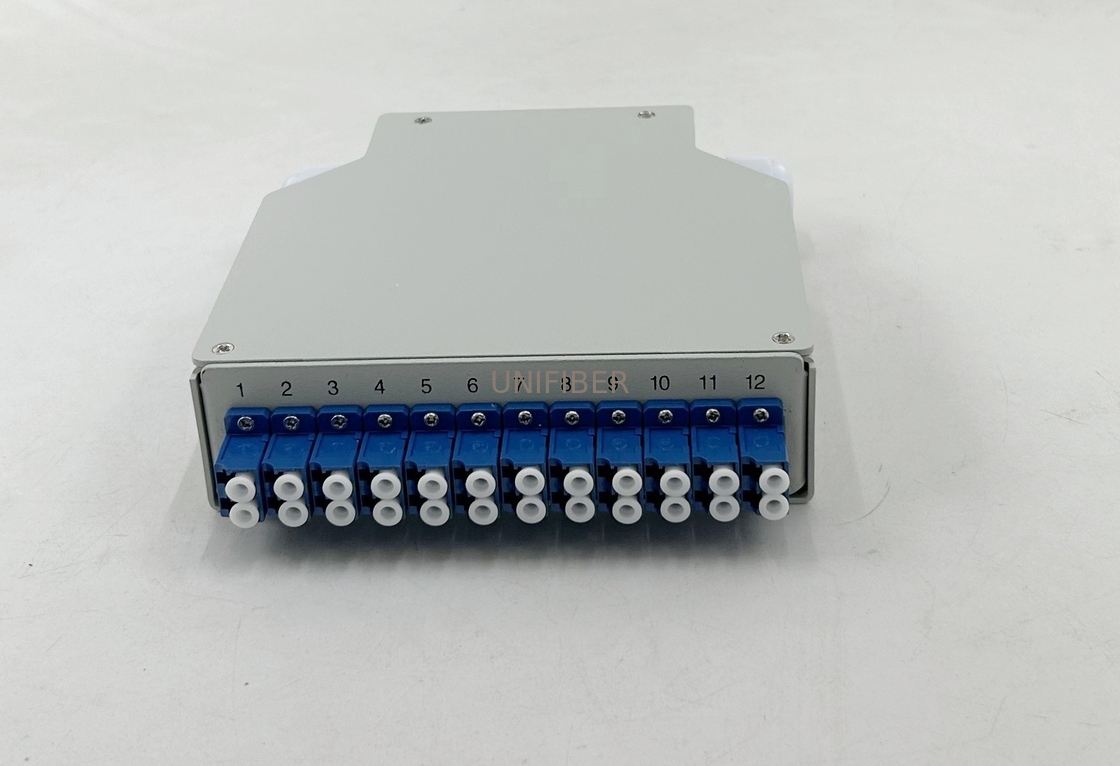

12 Ports LC duplex DIN Rail Mounted Fiber Patch Panel

Large Image : 12 Ports LC duplex DIN Rail Mounted Fiber Patch Panel

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	DIN Rail Mounted Patch Panel

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	DIN Rail Mounted Patch Panel	No Of Ports:	12
Connector:	Duplex LC Or SC	Material:	Cold Rolled Steel
Painting Color:	Grey	Application:	Fttx

Din Rail Patch Panel with 12 LC duplex adapter is metal box special designed to be snapped on din rail, DIN RAIL fiber box accepts one modular panel making it ideal for smaller fibre count applications of up to 24 fibers. This compact enclosure makes it possible to direct terminations or fusion splices in much smaller protected areas.

Features
Cold-roll steel, electrostatic painting
Suitable for different adapters: FC, SC, ST, LC …
Max. 6pcs adapters can be loaded

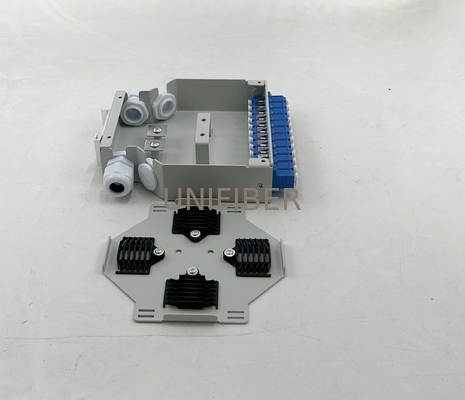

Integrated splice holders (fusion splices)
2pcs cable entry/exit ports; 24 pigtail entry/exit ports
IP20 protection
Rear or aside DIN rail fixation

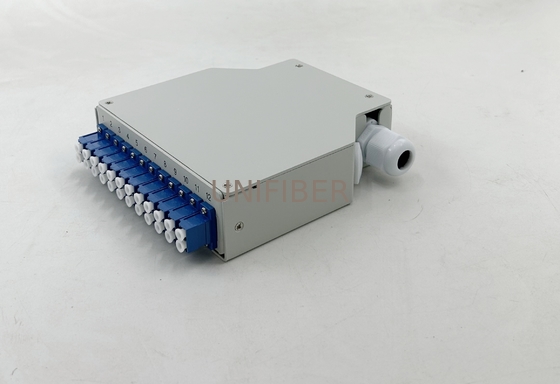

2x rear entries (PG 11 cable gland)
Grey color
Dimensions: 125*130*34MM

Application
Suitable for Pigtail, ribbon and bunch cable connect distribution Used for wall-mounted applications
Used in FTTH, Telecommunications, CATV etc.

Specification

12 Ports Din rail Mount LC duplex Fiber Optic Patch Panel
Design	Splice distributor
Housing	Aluminium alloy
Mount Type	Din-rail
Entries Count	two way
Cable Access/outlet	from top to bottom, straight, inclined
Flange Type	LC quad/SC duplex/ST/ FC , other adapter customized
Capacity	MAX 24 fibers
Dimension	131.50 x 131.70 x 52.60 mm (5.177 x 5.185 x 2.071 inch)
Net Weight	0.6KGS
