Data Center Ultra High Density MPO/MTP Fiber Optic Patch Panel 1U-144F 2U-288F 4U-576F

Large Image : Data Center Ultra High Density MPO/MTP Fiber Optic Patch Panel 1U-144F 2U-288F 4U-576F

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	Ultra High Density MPO/MTP Fiber Optic Patch Panel

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	100pcs/day

Contact Now

Detailed Product Description

Products:	Ultra High Density MPO/MTP Fiber Optic Patch Panel	Capacity:	1U-144F 2U-288F 4U-576F
Connector:	MPO/MTP	Material:	Cold Rolled Steel
Painting Color:	Black Or Grey	Cassettes:	8F 12F 16F 24F
Application:	Data Cente

The modular design and the front and rear pull-out mechanical structure are the biggest features that differentiate this product from competing products, including rapid deployment, rapid response, and accurate troubleshooting. The optional LC adapter supports up to 1U-144F, 2U-288F, and 4U-576F, and the optional CS adapter supports up to 1U-216F.

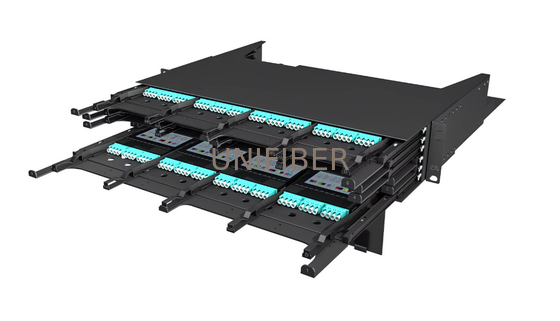

Data Center Ultra High Density MPO/MTP Fiber Optic Patch Panel 1U-144F 2U-288F 4U-576F 0

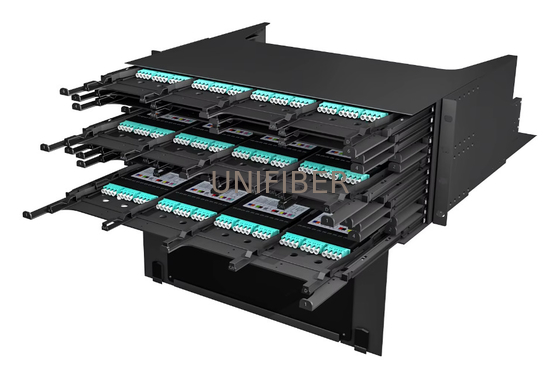

Data Center Ultra High Density MPO/MTP Fiber Optic Patch Panel 1U-144F 2U-288F 4U-576F 1

Features:

● Modular design, guide rail pull-out design, front and rear cable management board design

● Supports MTP®/MPO-MTP®/MPO conversion, supports MTP®/MPO/LC/CS connection, supports pigtail splicing

● 1U supports up to 144-core LC or 216-core CS connections, 1U supports up to 1728-core MPO/MTP® connections, 2U supports up to 288-core LC connections, and 4U supports 576-core LC connections.

Application:

● Data Center infrastructure;

● Storage Area Network;

● Fiber Channel;

Specification:

Max Capacity	1U - 144core 2U- 288cores 4U- 576cores
Connector Type	MPO/MTP-LC/SC
Materiaal	Cold Rolled Steel Plate
Afmetingen (mm)	482.8350 H
Operatie Temperatuur	-40℃~75℃

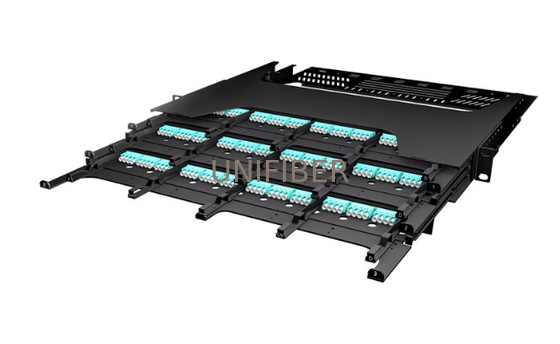

Data Center Ultra High Density MPO/MTP Fiber Optic Patch Panel 1U-144F 2U-288F 4U-576F 2
