980/1550nm 1480/1550nm Ultra Compact Size 1x2 Single Mode Fused WDM Coupler 3.0*30mm

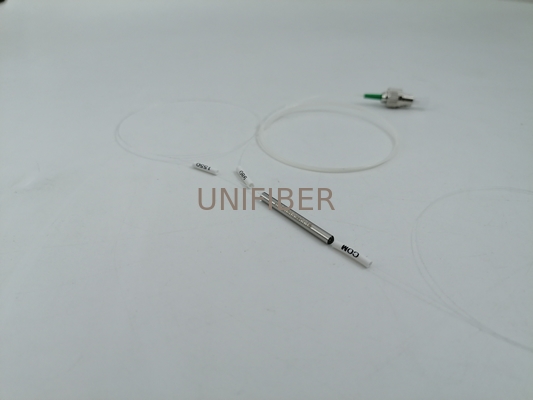

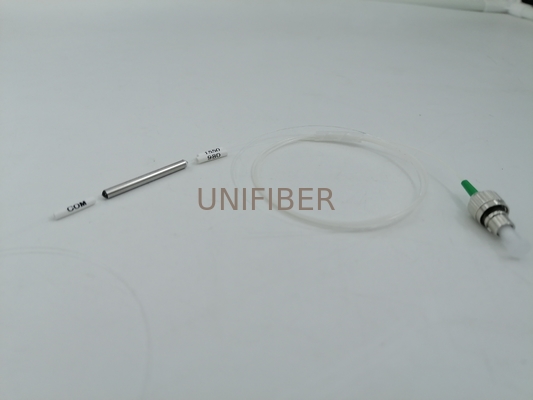

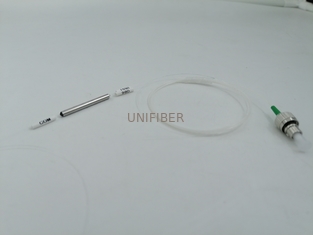

Large Image : 980/1550nm 1480/1550nm Ultra Compact Size 1x2 Single Mode Fused WDM Coupler 3.0*30mm

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	1x2 Single Mode Fused WDM Coupler

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable

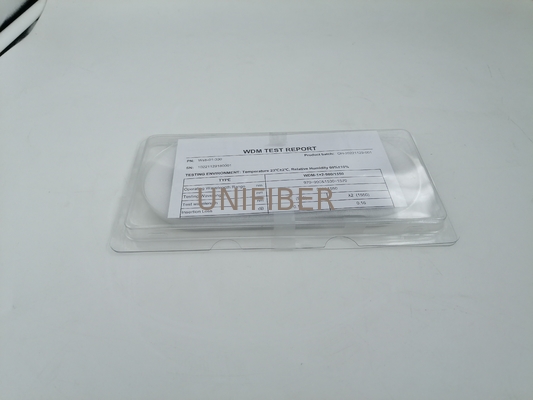

Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	100pcs/day

Contact Now

Detailed Product Description

Products:	1x2 Single Mode Fused WDM Coupler	Wavelength:	980/1550nm 1480/1550nm
Fiber Type:	Single Mode HI1060	Package Type:	Steel Tube
Size:	3.0*30mm	Connector:	FC/APC

WDM components can effectively combine or separate single mode signals at two wavelength ranges. Available in three wavelength ranges (980/1550 nm, 980/1310 nm, and 1480/1550 nm). Based on the proven Fused Biconic Taper (FBT) technology, these multiplexers provide broad operating wavelengths and low insertion loss. All our WDM are available with any connector style (FC as standard, other connectors available upon request), and include 900 um loose tubing to protect the fibers.

Features

Low Insertin Loss

High Isolation

Application

Erbium Doped Fiber

Amplifiers (EDFA)

Specification

Parameter	980/1550nm WDM		1480/1550nm WDM
Grade	P	A	P	A
Max. Insertion Loss (dB)	≤0.20	≤0.25	≤0.25	≤0.35
lsolation(dB)	≥20	≥18	≥16	≥14
Polarization Sensitivity(dB)	≤0.05	≤0.10	≤0.10	≤0.15
Operating Wavelength (nm)	980±10/1550±20		1480/1550±5
Directivity(dB)	≥60
Operating Temperature (℃)	-10~+70
Storage Temperature (℃)	-40~+85
Fiber Pigtail Length (m)	1 m or Specify
Fiber Type	OFS980 or HI 1060 FLEX		Corning 980, Corning SMF-28e
Fiber Pigtail Length (m)	1 m or Specify
Port Configuration	1x2 or 2x2
Package Dimension	1,2,3
