1U 19-inch 96 Ports LC Fiber Distribution Panel

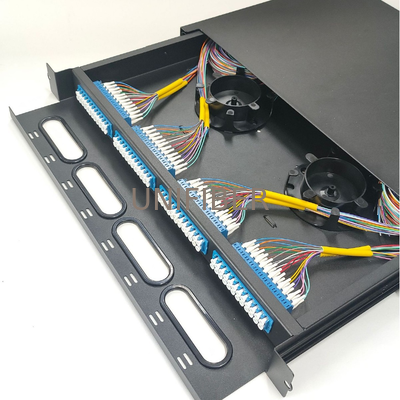

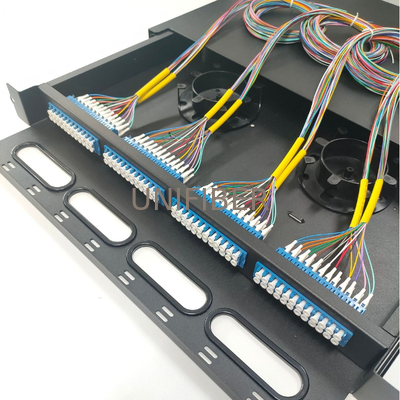

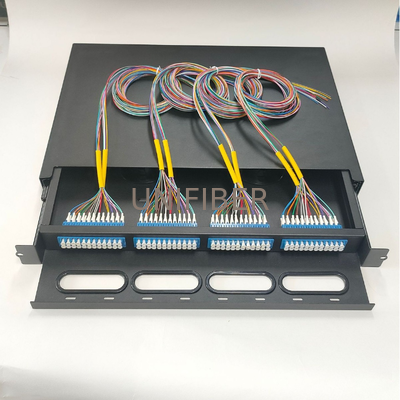

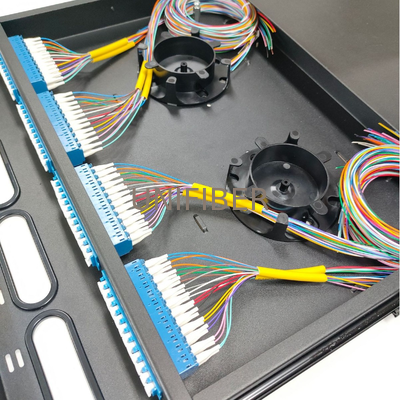

Large Image : 1U 19-inch 96 Ports LC Fiber Distribution Panel

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	96 Ports LC Fiber Distribution Panel

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	100pcs/day

Contact Now

Detailed Product Description

Product:	1U 19-inch 96 Ports LC Fiber Distribution Panel	No Of Ports:	96 Ports
Adapter Type:	Duplex LC	No Of Trays:	2
Tray Capacity:	48 Core	Material:	Cold Rolled Steel
Color:	Black
Highlight:	1U 19-inch fiber distribution panel , 96 ports LC fiber patch panel , rack mount fiber optic panel

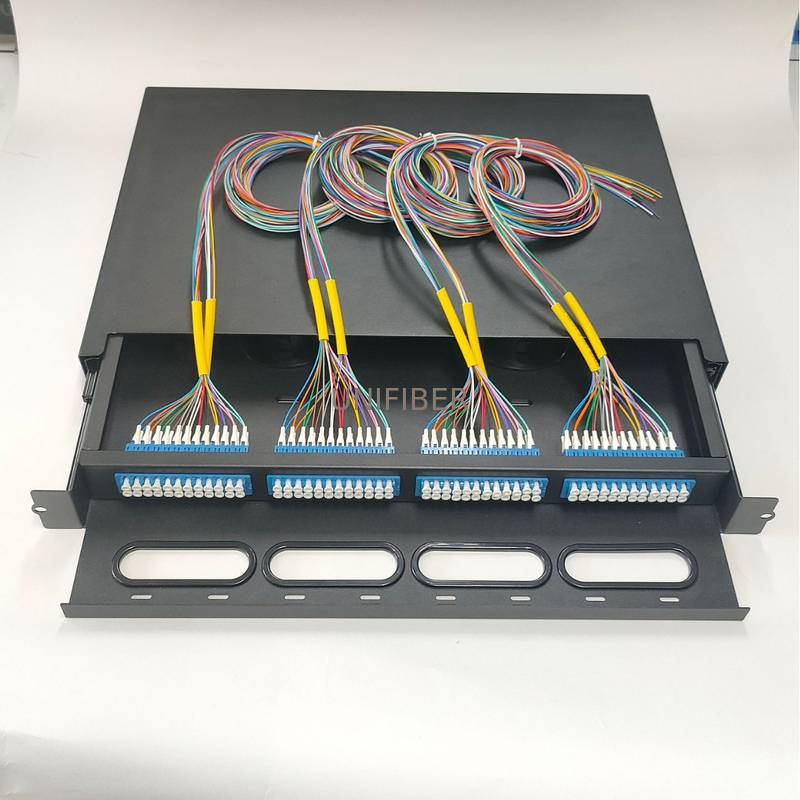

1U 19-inch 96 Ports LC Fiber Distribution Panel

This 1U 96 Port HD Fiber Optic Patch Panel supports 4 interchangeable adapter modules for LC or SC connectors. It can accommodate fiber splicing for up to 96 fibers with 2x 48F splicing trays and also supports 4x MPO/MTP cassette modules. This panel provides an ideal high-density cable management solution for modern data center environments.

Applications

Data Center Infrastructure
Fiber Channel Networks
Storage Area Networks
Emerging 40G and 100Gbps Protocols (Compatible)

Key Features

Supports MPO/MTP cassette modules for high-density applications
Accommodates up to 96 single fiber splices
Includes 2 splice trays, each supporting 48 fiber splices
Features 4 separate interchangeable adapter plates
Standard unit structure compatible with various cabinets and racks
Multiple optical cable entry points with enlarged inlets for easy cable routing
Secure cable fixation using optical cable fixing columns or metal reinforcements

Technical Specifications

Model Number	1U 96 Port HD Fiber Optic Patch Panel
Max Capacity	96 Ports
Cassettes Compatible	4x 24 adapter module
Connector Type	Duplex LC, SC or MPO/MTP
Pre-Connection	Optional
Material	SPCC (Cold Rolled Steel Sheet)
Finishing	Powder Coated Matt Black
Dimension (mm)	482.6363.21U/2U
Operation Temperature	-20℃ ~ 70℃
