40CH PM AAWG Module Gaussian C21~C60 FC/APC Slow Axis working

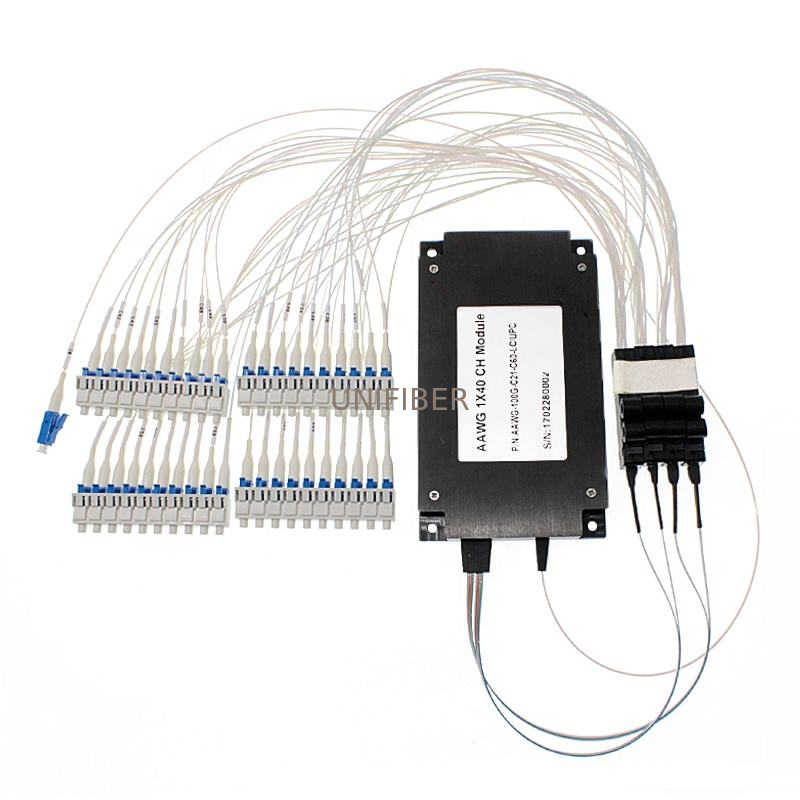

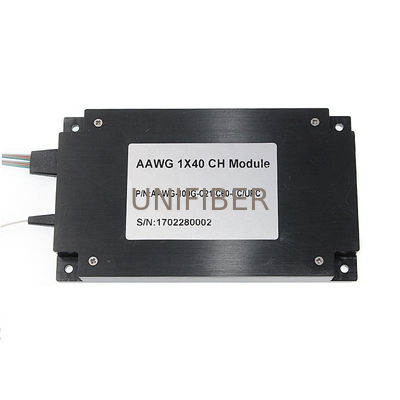

Large Image : 40CH PM AAWG Module Gaussian C21~C60 FC/APC Slow Axis working

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	PM AAWG Athermal AWG Module

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	40CH PM AWG Module	Number Of Channels::	40CH
Wavelength:	C21~C60	Channel Spacing:	100G
Filter Shape:	Flat Top Or Gaussian	In/Out Connector:	LC/UPC
Fiber Length:	0.5m, 1m ,1.5m 2m	Package:	Module Or Rack Mounted
Highlight:	40CH PM AAWG Module Gaussian C21-C60 , Wavelength Division Multiplexer FC/APC , Slow Axis working PM AAWG Module

40CH PM AAWG Module Gaussian C21~C60 FC/APC Slow Axis Working

Polarization Maintaining fiber PM AAWG Module is a planar lightwave circuit (PLC) device that multiplexes or demultiplexes dozens of wavelengths in the C-band (1525-1565nm) with ultra-fine spacing down to 50GHz (0.4nm). Built on silica waveguide technology and integrated with PM fiber pigtails, it delivers flat-top or Gaussian filtering for coherent telecom, datacom, and test systems.

Key Features

Up to 96 channels @ 50GHz/100GHz/150GHz spacing
Low port insertion loss, High isolation
Compact 1U rack-mount or housing options
C-Band ITU Grid Compatibility
Environmental Reliability

Applications

Coherent Optical Transport — 100G/400G/800G DWDM systems
Data Center Interconnect (DCI)
Dense Optical Communication Networks
Optical Amplifier & EDFA Systems
Optical Test & Measurement
Polarization-Sensitive Optical Platforms

Technical Specifications

Parameter	Unit	Value
Operating Wavelength	nm	1525~1565
Center Wavelength	nm	ITU Grid(C13 ~C64) or Customized
Channel Port	nm	32,40 \| 32,40,44,48,60 \| 80,88,96
Channel Spacing	nm	150GHz (1.2nm) \| 100GHz (0.8nm) \| 50GHz(0.4nm)
Channel Passband	Min	nm	±0.11 \| ±0.11 \| ±0.05
Technology	-	Flat-top \| Flat-top \| Gaussian \| Flat-top
Pass band @1dB	Min	nm	0.92 \| 0.38 \| 0.2 \| 0.2
Pass band @3dB	Min	nm	1.2 \| 0.58 \| 0.4 \| 0.26
Port Insertion Loss	Max	dB	5.5 \| 5.5 \| 3.8 \| 6.0
Isolation Adjacent	Min	dB	≥11 \| ≥25 \| ≥27 \| ≥25
Isolation Non-adjacent	Min	dB	≥23 \| ≥29 \| ≥30 \| ≥29
Uniformity	Max	dB	1.5
Ripple	Max	dB	0.5 \| 0.5 \| 1.5 \| 0.5
Extinction Ratio	Min	dB	18 \| 18 \| 18 \| 16
Return Loss	Min	dB	40
Directivity	Min	dB	50
Power Handling	Max	mW	300
Fiber Type	-	PM 1550 Fiber
Fiber Coating	um	250 µm / 900 µm loose tube
Fiber to fan-out Length	L1	mm	500
Fan-out to Connector Length	L2	mm	500
Connector	-	LC/UPC or Customized
Dimensions (HxWxD)	mm	120x70x11,482x250x44, 482x230x44
Operating Temperature	°C	-5~65
Storage Temperature	°C	-40~85
