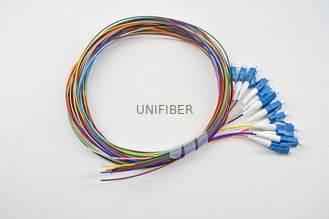

12 Strand Single Mode Fiber Optic Pigtail 0.9mm Tight Buffered Ribbon LC SC FC ST Connector

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

12 Strand Single Mode Fiber Optic Pigtail 0.9mm Tight Buffered Ribbon LC SC FC ST Connector

12 Strand Single Mode Fiber Optic Pigtail 0.9mm Tight Buffered Ribbon LC SC FC ST Connector
12 Strand Single Mode Fiber Optic Pigtail 0.9mm Tight Buffered Ribbon LC SC FC ST Connector 12 Strand Single Mode Fiber Optic Pigtail 0.9mm Tight Buffered Ribbon LC SC FC ST Connector 12 Strand Single Mode Fiber Optic Pigtail 0.9mm Tight Buffered Ribbon LC SC FC ST Connector

Large Image :  12 Strand Single Mode Fiber Optic Pigtail 0.9mm Tight Buffered Ribbon LC SC FC ST Connector

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: UNFPLC-12
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Individual package
Delivery Time: 3~5 business days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Pigtail Color: 12 Colors Fiber Type: G652D G657A
Length: 1m,1.5m,3m Or Customized Fiber Count: 4/6/8/12 Fibers
Connector: LC SC FC ST Polish Type: UPC Or APC
High Light:

optical fiber pigtail

,

duplex pigtail

LC fibre optic pigtail, 12 strand single mode,0.9mm tight buffered ribbon/fan-out fiber optic cable color code​



APPLICATION

Telecommunications

CATV, LAN, MAN, WAN, Test &Measurement

Military industry

Medical



FEATURES
SC,LC,FC,ST connector for option.

Any length is available: 1m,1.5m or other length you required.

Different fiber diameter for option: 0.9mm, 2mm or 3mm

Telecom level and insertion loss below 0.3 db.

The pigtail corresponds to the international standard IEC 874-10.



UNIFIBER provide various of fiber optic pigtails for your splicing application, includes 1fiber, 4/6/8/12 fiber pack with different connectors of SC, LC,FC, ST , with UPC or APC polish  type. These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket.







Parameters

Parameter Singlemode Fiber Multimode Fiber
PC UPC APC PC
Insertion Loss(dB) ≤0.3 ≤0.2 ≤0.3 ≤0.3
Return Loss(dB) ≥45 ≥50 ≥60 ≥20
Exchangeability(dB) ≤0.2
Plug-pull life(times) >1000
Operating temperature(℃) -40~+75
Storage temperature(℃) -45~+80
Fiber model φ0.9mm, φ2.0mm, φ3.0mm



12 Strand Single Mode Fiber Optic Pigtail 0.9mm Tight Buffered Ribbon LC SC FC ST Connector 012 Strand Single Mode Fiber Optic Pigtail 0.9mm Tight Buffered Ribbon LC SC FC ST Connector 112 Strand Single Mode Fiber Optic Pigtail 0.9mm Tight Buffered Ribbon LC SC FC ST Connector 2
