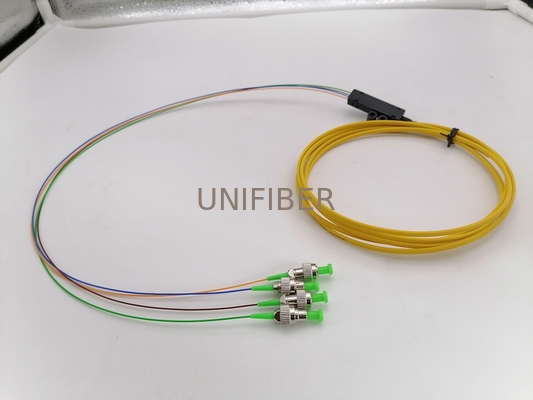

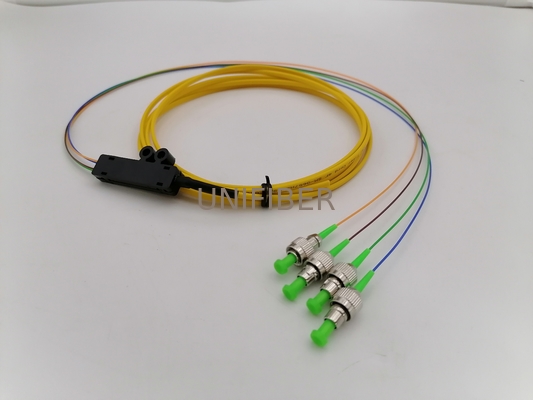

4 Core Single Mode G657A2 FC/APC Ribbon Fiber Pigtail 2.5m

Large Image : 4 Core Single Mode G657A2 FC/APC Ribbon Fiber Pigtail 2.5m

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	4 Fiber Ribbon Pigtail

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	100pcs/day

Contact Now

Detailed Product Description

Product:	FC/APC Ribbon Fiber Pigtail	Fiber Type:	G657A2
Fiber Counts:	4 Core	Connector:	FC/APC
Pigtail Length:	1.5M 2.5M Or Others	OEM Brand:	Support

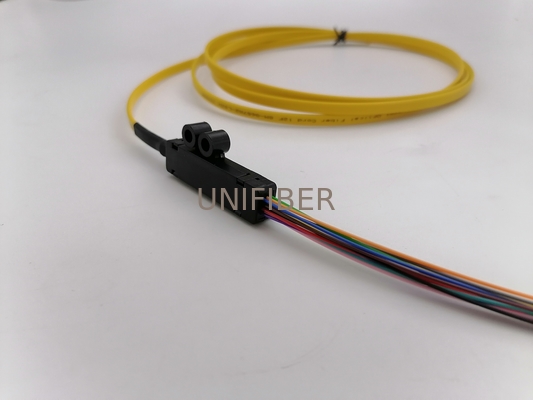

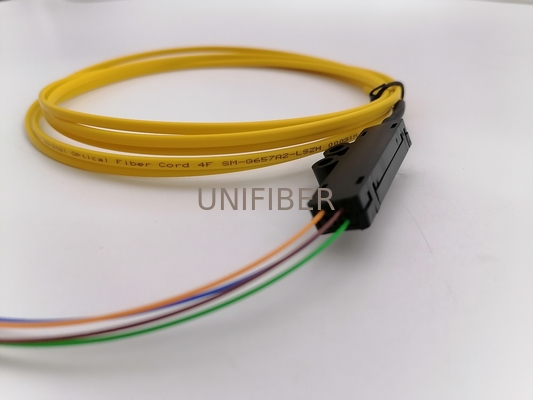

The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.

Feature

1.Low cost

2.Low Insertion Loss & PDL

3.High return loss (low amounts of reflection at the interface)

4.Factory-terminated and Tested

5.Ease of installation

6.Reliability

7.Low environmental sensitivity

8.Connector with Ceramic Ferrules

Application

1.Access Network

2.Telecom/CATV Systems

3.Active device termination

4.Local Area Networks (LANs)

5.Metro

6.Test equipment

7.Data processing networks

8.Wide Area networks (WANs)

9.FTTX

Specification

Parameter	Singlemode Fiber			Multimode Fiber
Parameter	PC	UPC	APC	PC
Insertion Loss(dB)	≤0.3	≤0.2	≤0.3	≤0.3
Return Loss(dB)	≥45	≥50	≥60	≥20
Exchangeability(dB)	≤0.2
Plug-pull life(times)	＞1000
Operating temperature(℃)	-40~+75
Storage temperature(℃)	-45~+80
Fiber model	φ0.9mm, φ2.0mm, φ3.0mm
