Product Details:
Payment & Shipping Terms:
|

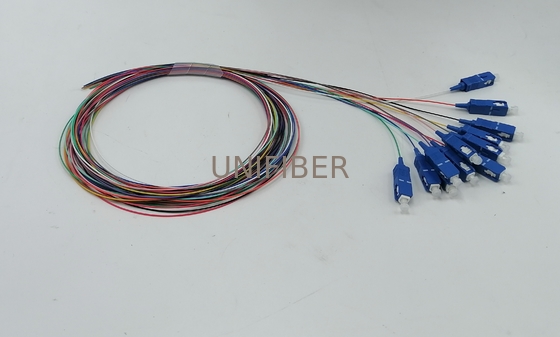

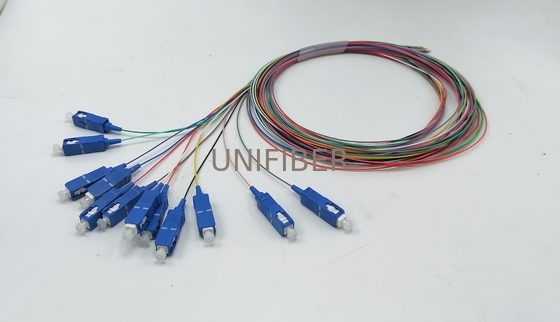

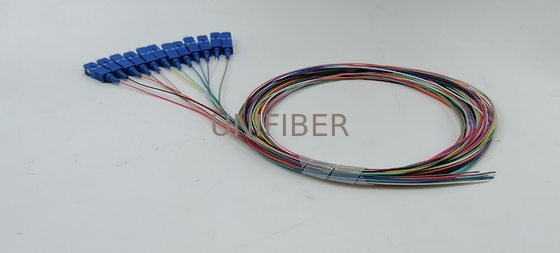

| Product: | 12 Fibers Optic Pigtails | Fiber Mode: | OS2 Single Mode |
|---|---|---|---|
| Fiber Type: | G657A1 | Connector: | SC UPC |
| Length: | 1m | Jacket Color: | 12-Color |
| Highlight: | SC UPC fiber pigtail unjacketed 0.9mm,12 fibers color-coded fiber optic pigtail,1m fiber pigtail with warranty |
||
| Attribute | Value |
|---|---|
| Product | 12 fibers optic pigtails |
| Fiber Mode | OS2 Single Mode |
| Fiber Type | G657A1 |
| Connector | SC UPC |
| Length | 1m |
| Jacket Color | 12-Color |
12 fibers optic pigtails are ideal for fusion splicing the required fiber connectivity for structured cabling systems including Data Centers, Broadband CATV, PON (Passive Optical Network), WDM or DWDM multiplexing, FTTH and voice services in ATM and SONET metropolitan and access networks. The OS2 bend insensitive fiber optic pigtails have less attenuation when bent or twisted compared with traditional fiber optic pigtails and this will make the installation and maintenance more efficient.
| Parameter | Singlemode Fiber | Multimode Fiber | ||
|---|---|---|---|---|
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
