1.5M SC/APC 12 fiber optic fanout pigtails OS2 Single Mode G657A2 Bend Insensitive Riser (OFNR) 0.9mm Yellow

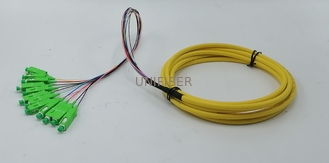

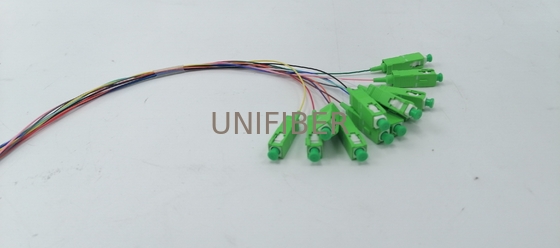

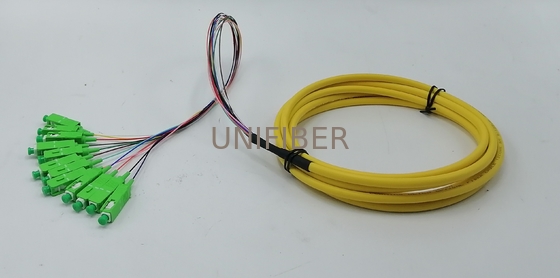

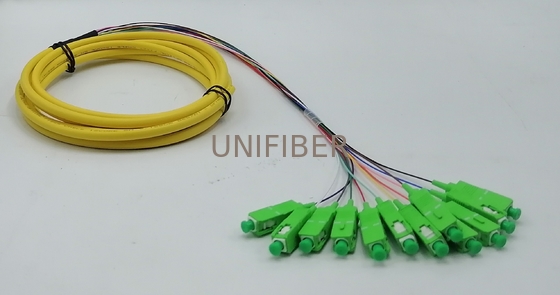

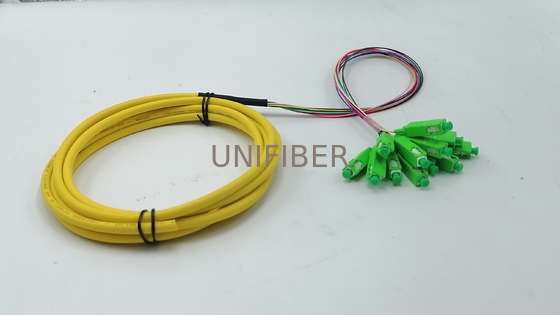

Large Image : 1.5M SC/APC 12 fiber optic fanout pigtails OS2 Single Mode G657A2 Bend Insensitive Riser (OFNR) 0.9mm Yellow

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	12 fiber optic pigtail

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	12 Fibers Optic Pigtails	Fiber Counts:	12 Fibers
Fiber Type:	OS2 9/125μm	Fiber Length:	1.5m
Jacket Color:	Yellow	Cable Jacket:	Riser (OFNR)
Cable Type:	Tight-Buffered

12 fibers optic pigtails are ideal for fusion splicing the required fiber connectivity for structured cabling systems including Data Centers, Broadband CATV, PON (Passive Optical Network), WDM or DWDM multiplexing, FTTH and voice services in ATM and SONET metropolitan and access networks. The OS2 bend insensitive fiber optic pigtails have less attenuation when bent or twisted compared with traditional fiber optic pigtails and this will make the installation and maintenance more efficient.

Features

High-quality tight-buffered fiber optic pigtail protects the fiber optic core, and is easy to strip for splicing.

Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.

G.657.A2 low loss fiber and 7.5mm Min. bend radius provide improved flexibility for limited space setups.

The high-precision zirconia ceramic ferrule has a long life and ensures stability and interchangeability

Application

Optical fiber pigtails can be used in optical fiber communication systems optical fiber data transmission, optical fiber CATV, optical test equipment, fiber optic sensors, etc..

Specification

Model Number	Fiber Pigtail	Connector Type	SC/APC
Place of Origin	Guangdong, China	Brand	OEM/ODM
Wavelength	1310 nm/1550 nm	Fiber Mode	9/125 μm
Min. Bend Radius	10mm	Fiber Grade	G.657.A2
Fiber count:	12	Polish Type	APC
Insertion loss	≤0.3dB	Return loss	APC≥60dB
Cable Jacket:	PVC/OFNR/LSZH/Plenum(OFNP)	Jacket Color	12-Color
Cable Diameter	0.9mm	Length	Customized
Interchangeability	≤0.2 dB	Vibration	≤0.2 dB
Operating Temperature (° C)	-40~ + 75	Storage Temperature (° C)	-45 ~ +85
