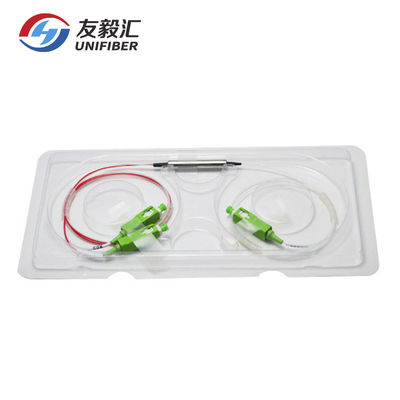

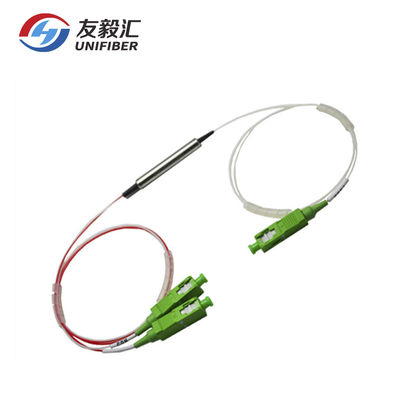

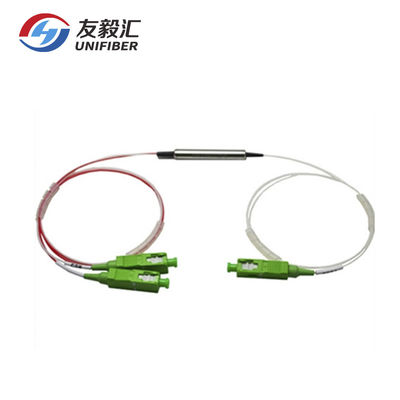

SC/APC 1550nm 3 Port Optical Circulator 900um For Wavelength Drop

Large Image : SC/APC 1550nm 3 Port Optical Circulator 900um For Wavelength Drop

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	3 port optical circulator 1550nm

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Blister Case
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	Polarization Insensitive 1550nm 3 Port Optical Circulator SC/APC	Ports:	3 Ports
Wavelength:	1550nm	Pigtail:	900um
Pigtail Length:	1m	Connector:	SC/APC
High Light:	1550nm 3 Port Optical Circulator , SC/APC 3 Port Optical Circulator , 900um Polarization Insensitive Optical Circulator

Polarization Insensitive 1550nm 3 Port Optical Circulator utilizes proprietary designs and metal bonding micro optics packaging. It’s a compact, highperformance components, with high isolation, low insertion loss, low PDL, high stability and reliability. It is widely used in combination with fiber gratings and other reflective components in DWDM systems, wavelength add/drop, high speed systems, bi-direction communication systems, dispersion compensation, EDFA application and optical time domain reflectometer (OTDR) measurements.

Features

Low Insertion LossWide Band High Isolation
Low PDL
High Stability and Reliability

Epoxy-free on Optical Path

Application

Optical Amplifier
Metro Area Network

Wavelength Add/Drop

Dispersion Compensation

Bi-Direcation Communication

Specification


			Parameter

			P Grade

			Configuration

			Port 1 to Port 2 to Port 3

			Operation Wavelength (nm)

			1310±30 or 1550±30

			Insertion Loss (dB)

			Typical

			0.6

			Maximum

			0.8

			Typical Isolation (dB)

			≥50

			Minimum Isolation (dB)

			≥40

			Cross Talk (dB)

			≥50

			Polarization Dependent Loss (dB)

			≤0.15

			Polarization Mode Dispersion(dB)

			≤0.1

			Return Loss(dB)

			≥50

			Power Handling (mW)

			300

			Opterating Temperature (℃)

			-10~+75

			Package dimension (mm) (Steel tube)

			Φ5.5xL50

			Package dimension (mm) (ABS box)

			90x20x10

SC/APC 1550nm 3 Port Optical Circulator 900um For Wavelength Drop 0
