Product Details:
Payment & Shipping Terms:
|
| Product: | High Isolation 1550nm Polarization-Insensitive Dual Stage Optical Isolator | Isolator Type: | Dual Stage |
|---|---|---|---|
| Package: | 5.5*30mm Steel Tube | Grade: | P Grade |
| Pigtail Style: | 0.9mm | Pigtail Length: | 1m |
| Wavelength: | 1550nm | ||
| High Light: | Polarization Insensitive Fiber Optical Isolator,Low PDL Fiber Optical Isolator,1550nm Dual Stage Optical Isolator |
||

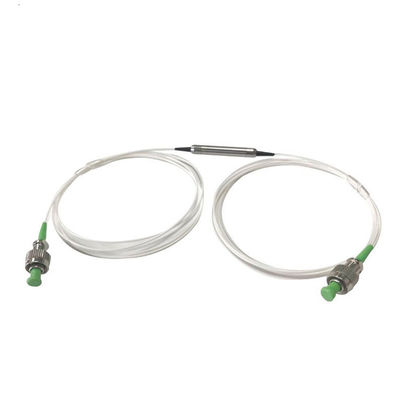

High Isolation 1550nm Polarization-Insensitive Dual Stage Optical Isolator
1310nm 1550nm Single stage/Dual stage Polarization-Insensitive Optical Isolator utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction at any polarization sate.The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters and other fiber optic communication equipments to suppress back reflection and back scattering.
Features
High Isolation
Low Insertion Loss
Ultra Low PDL & PMD
Low Polarization Sensitivity
Epoxy-free Optical Path
Application
Fiber optic Amplifiers
CATV Fiber optic Links
Fiber optic Systems Testing
Fiber optic LAN Systems
Telecommunications
Specification
| FISO Series Optical Isolator | Single Stage | Dual Stage | |||||||
| P Grade | A Grade | P Grade | A Grade | ||||||
| Operating Wavelength Bandwidth |
nm | 1310, 1480 or 1550 | |||||||
| nm | ±15 | ±30 | |||||||
| Typ. Isolation | dB | ≥40 | ≥36 | ≥50 | ≥48 | ||||
| Min. Isolation | dB | ≥32 | ≥30 | ≥46 | ≥43 | ||||
| Typical Insertion Loss | dB | 0.4 | 0.6 | 0.65 | 0.7 | ||||
| Max Insertion Loss | dB | 0.55 | 0.7 | 0.75 | 0.8 | ||||
| Return Loss (In/Out) | dB | 60/55 | 60/55 | 60/55 | 60/55 | ||||
| PDL Loss | dB | 0.5 | 0.1 | 0.1 | 0.15 | ||||
| PMD | dB | 0.15 | 0.5 | ||||||
| Operating Temperature | °C | -5~+70 | |||||||
| Storage Temperature | °C | -40~+85 | |||||||
| fiber Type | Corning SMF-28 | ||||||||
| Max Optical Power | mW | 500 | |||||||
| Package Dimension | mm | 5.5 x L30 (L38 for 900um Jacket) | |||||||
