Product Details:
Payment & Shipping Terms:
|
| Product: | Mini Size Polarization Insensitive Optical Fiber Isolator 1310nm 1550nm | Isolator Type: | Single/Dual Stage |
|---|---|---|---|
| Package: | Φ3.0x25mm | Grade: | P Grade |
| Pigtail Style: | 0.9mm | Pigtail Length: | 1m |
| Wavelength: | 1310,1480,1550 Or Customer | ||
| High Light: | Mini Polarization Optical Fiber Isolator,1310nm Dual Stage optical isolator,EDFA Optical Fiber Isolator |
||

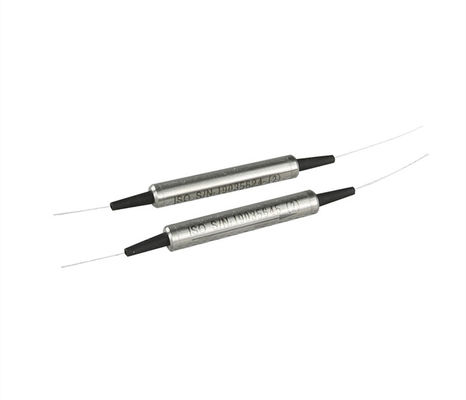

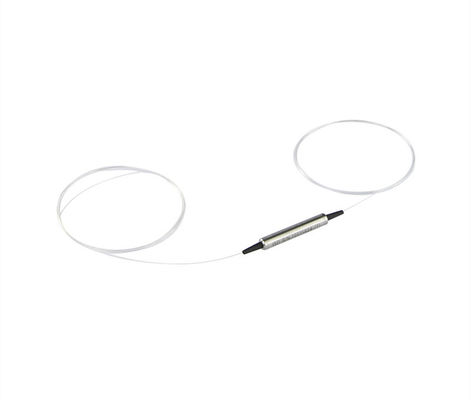

Mini Size Polarization Insensitive Optical Fiber Isolator Dual Stage 1310nm 1480nm 1550nm For EDFA
Mini size polarization Insensitive optical fiber isolator dual stage 1310nm 1480nm 1550nm utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction at any polarization sate.The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters and other fiber optic communication equipments to suppress back reflection and back scattering.
Features
High Isolation
Polarization Dependent
Compact Size
Low insertion loss
Application
Fiber Amplifier
CATV fiber optic network
Fiber Optic Link
Telecommunications
Specification
| Parameter | P Grade | A Grade |
| Operating Wavelength (nm) | 1310,1480,1550 or customer | |
| Typical Isolation (dB) | 56 | 56 |
| Isolation (Min)?(dB) | ≥42 | ≥40 |
| Insertion Loss (Typ.) (dB) | ≤0.5 | ≤0.6 |
| Insertion Loss (Max.) (dB) | ≤0.6 | ≤0.7 |
| Return Loss (In/Out) (dB) | ≥55/55 | ≥55/55 |
| Polarization Dependent Loss (dB) | ≤0.1 | ≤0.15 |
| polarization mode dispersion(ps) | 0.05 | |
| Bandwidth(nm) | ±30 | |
| Operating Temperature(℃) | -10~+75 | |
| Storage Temperature(℃) | -40~+85 | |
| Fiber Type | Corning SMF-28 | |
| Fiber Length (Min.) | 1 meter each end | |
| Package Dimension (mm) | Φ3.0x25 | |
| Power Handling (mW) | 300 | |
