| Product: | Free Space Optical Isolators | Isolator Type: | Single Stage Or Dual Stage |
|---|---|---|---|
| Wavelength: | 1310nm 1550nm | Clear Apeture: | 0.8mm Or Custom |
| Optical Power: | 500mw | Application: | Optical Transmitter And Transceivers |
| High Light: | 1550nm Fiber Optical Isolator,Transmitter Fiber Optical Isolator,500mw Free Space Optical Isolators |
||

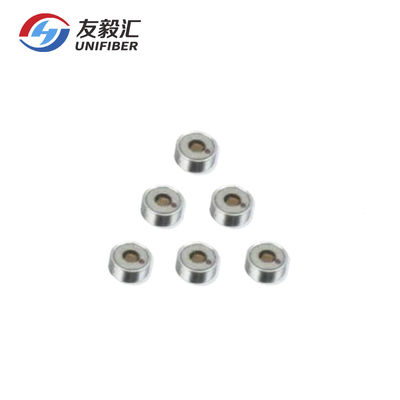

The Free Space Isolator is designed for integration within laser diode package to prevent back reflection. The high isolation, low insertion loss and large aperture features make it flexible to fit with different diode laser packaging requirements.
Features
High Isolation and low insertion loss
Polarization Dependent
Compact size
RoHS 6/6 compliant
Application
Optical Transmitter
Laser Diode Package
Specification
| Specifications | |||
| Parameter | Unit | Single Stage | Dual Stage |
| Center Wavelength (λc) | nm | 1310 or 1550 | |
| Typ. Insertion Loss | dB | 0.10 | 0.20 |
| Max. Insertion Loss | dB | 0.20 | 0.30 |
| Peak Isolation | dB | 42 | 55 |
| Min. Isolation, 23 ℃ | dB | 30 | 40 |
| Clear Aperture | mm | 0.4-0.9 | |
| Max. Optical Power (Continuous Wave) | mW | 300 | |
| Polarization Plane of Input | As Indicated | ||
| Tilt Angle of Input Plane | degree | 0 or Specify | |
| Operating Temperature | ℃ | 0 to +60 | |
| Storage Temperature | ℃ |
-40 to +85 |
|
