Product Details:
Payment & Shipping Terms:
|
| Product: | Polarization Maintaining Optical Circulator | Ports: | 3 Ports Or 4 Ports |
|---|---|---|---|
| Wavelength: | 1310/1550nm | Pigtail: | 900um |
| Pigtail Length: | 0.5m | Connector: | SC/UPC Or Others |
| Highlight: | 4 Port Polarization Fiber Optical Circulator,SC UPC Polarization Fiber Optical Circulator,1310nm Polarization Insensitive Circulator |
||

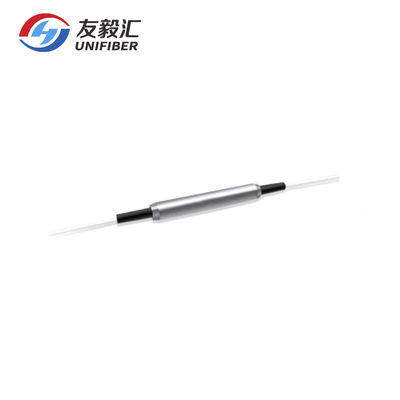

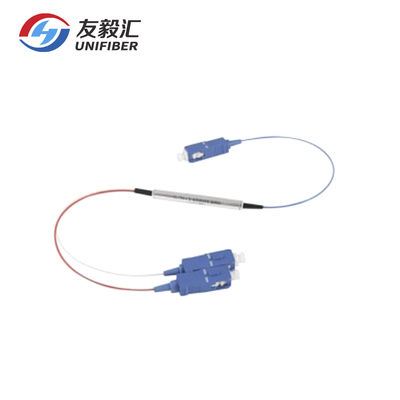

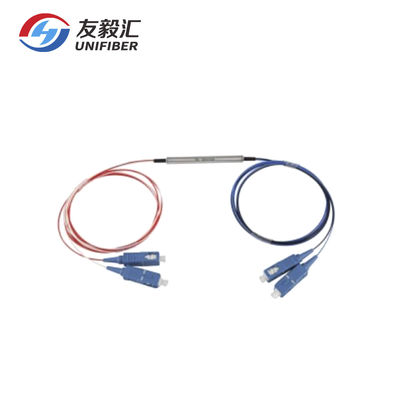

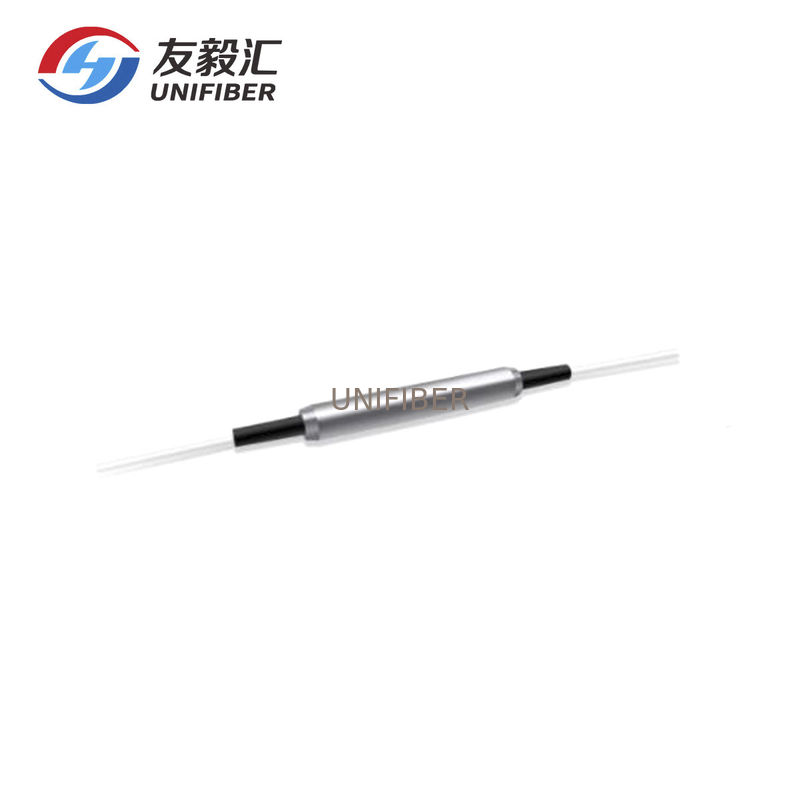

The Polarization Maintaining Optical Circulator is a compact high performance lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3. The component provides high isolation, low insertion loss, high extinction ratio, and excellent environment stability.
Features:
Low Insertion
LossWide Band High Isolation
Low PDL
High Stability and Reliability
Epoxy-free on Optical Path
Applications:
Optical Amplifier
Metro Area Network
Wavelength Add/Drop
Dispersion Compensation
|
Specifications |
|||
|
Parameter |
Unit |
Type A |
Type B |
|
Center Wavelength (λc) |
nm |
1310 or 1550 |
|
|
Operating Wavelength Range |
nm |
λc ± 30 |
λc ± 20 |
|
Typ. Insertion Loss, λc, 23 ℃ |
dB |
0.7 |
0.6 |
|
Max. Insertion Loss |
dB |
0.9 |
0.8 |
|
Peak Isolation |
dB |
52 |
40 |
|
Typ. Isolation, λc, 23 ℃ |
dB |
46 |
30 |
|
Min. Isolation, 23 ℃ |
dB |
40 |
20 |
|
Min. Extinction Ratio |
dB |
22 |
20 |
|
Min. Crosstalk |
dB |
50 |
|
|
Min. Return Loss |
dB |
50 |
|
|
Max. Optical Power (Continuous Wave) |
mW |
300 |
|
|
Max. Tensile Load |
N |
5 |
|
|
Operating Temperature |
℃ |
-5 to +70 |
|
|
Storage Temperature |
℃ |
-40 to +85 |
|
