| Product: | High Power Polarization Maintaining (PM) Optical Isolator 20W 850nm/980nm/1060nm | Wavelength: | 850nm/980nm/1060nm/1310nm/1550nm |
|---|---|---|---|
| Maximum Power Handling (continuous Wave): | 1, 5, 10, 20, 30, 50 | Fiber Type: | HI1060, PM980 Fiber, 10/125 SC,PM1060L Or Other |
| Pigtail Type: | 250μm Bare Fiber Or 900μm Loose Tube | Name: | Dual Stage Optical Isolator |
| High Light: | PM Dual Stage Optical Isolator,1550nm Dual Stage Optical Isolator,10KW Optical Fiber Isolator |
||

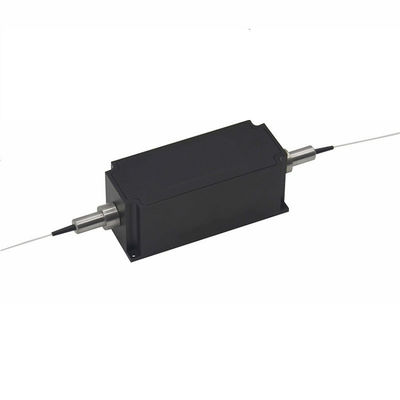

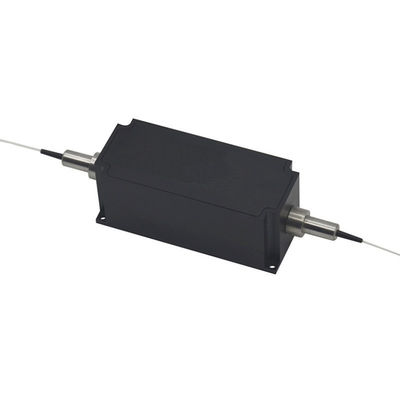

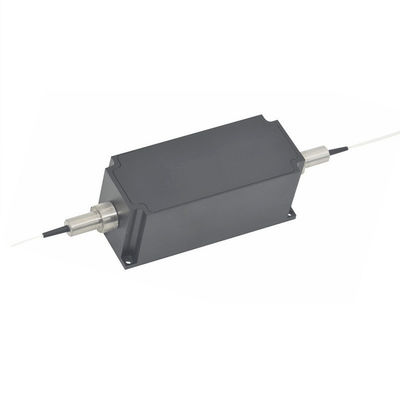

High Power Polarization Maintaining (PM) Optical Isolator series includes in-line type, beam expanded isolator, fiber in and free space out isolator and free space isolator etc. They’re characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. Optical Isolators are optical devices that allow light to be transmitted in one direction only. They are most often used to prevent any reflected light from entering the source, thus preventing any feedback problems, it has been widely used in fiber laser system.For wavelength of 980nm, PM and non-PM types are available, fiber can be customized, with power conditions of CW or Pulse and Power Handling of 5W, 10W, 20W, 30W, 50W can be customized.
FEATURES OF HIGH POWER OPTICAL ISOLATOR
Polarization Independent
Low Insertion Loss
High Isolation and Return Loss
High Reliability and Stability
APPLICATIONS OF HIGH POWER OPTICAL ISOLATOR
Fiber Amplifier
Fiber Laser
Testing Instruments
Mopa Fiber Laser
Specification
| Parameters | Values | Unit | |||
| Stage | Single | Dual | - | ||
| Grade | P | A | P | A | - |
| Operation Wavelength | 1310nm/1550nm | nm | |||
| Operating wavelength range | ±20 | nm | |||
| Typ. Peak Isolation | 42 | 40 | 58 | 55 | dB |
| Min.Isolation at 23℃ | 30 | 29 | 46 | 45 | dB |
| Typ. Insertion Loss at 23℃ | 0.35 | 0.5 | 0.4 | 0.6 | dB |
| Max. Insertion Loss at 23℃ | 0.5 | 0.7 | 0.6 | 0.9 | dB |
| Min.Extinction Ratio only for PM | 20 | 18 | 20 | 18 | dB |
| Min.Extinction Ratio(only for F type) | 25 | 23 | 25 | 23 | dB |
| Max. Polarization Dependent Loss at 23℃, only for PI | 0.15 | dB | |||
| Min. Return Loss (input/output) | 55/50 | dB | |||
| Max. Average Optical Power(CW) | Type A: 5, Type B: 20 | W | |||
| Max. Peak Power for ns Pulse | 10 | kW | |||
| Max.Tensile Load | 5 | N | |||
| Fiber TypeMin. | PM Panda Fiber | - |
|||
