ST UPC Hybrid Polarization Maintaining Tap Isolator Dual Stage 1310/1480nm

ST UPC Hybrid Polarization Maintaining Tap Isolator Dual Stage 1310/1480nm
ST UPC Hybrid Polarization Maintaining Tap Isolator Dual Stage 1310/1480nm ST UPC Hybrid Polarization Maintaining Tap Isolator Dual Stage 1310/1480nm

Large Image :  ST UPC Hybrid Polarization Maintaining Tap Isolator Dual Stage 1310/1480nm

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: Hybrid Polarization Maintaining Tap Isolator
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable

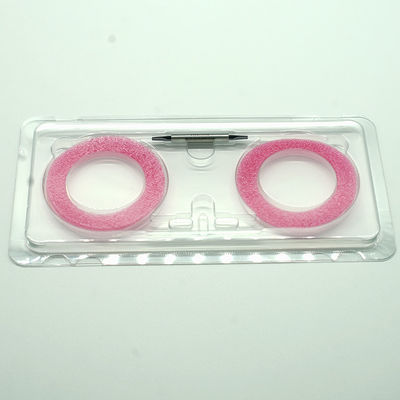

Packaging Details: Blister Case
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: Hybrid Polarization Maintaining Tap Isolator Dual Stage 1310/1480/1550 Nm Stage: Single/Dual Stage
Wavelength: 1310, 1480 Or 1550nm Fiber: 250um
Connector: ST/UPC Package: Steel Tube
High Light:

Hybrid Polarization Maintaining Tap Isolator

,

ST UPC Maintaining Tap Isolator

,

1480nm Dual Stage Optical Isolator

The Polarization Maintaining Tap Isolator combines a tap coupler and polarization sensitive isolator into a single compact package. It has high ER and very low insertion loss. The component is ideal for fiber amplifier and fiber optic system where signal monitoring is required.



Features
High lsolation
Low lnsertion Loss
High stability and reliability


Applications
Fiber Lasers
Optical transmitters&Transceivers
Fiber Amplifiers&Fiber Sensors



Specifications
Parameter Unit Single Stage - Dual Stage
Center Wavelength (λc) nm - 1310, 1480 or 1550
Operating Wavelength Range nm - λc ± 15 -
Max. Excess Loss dB 0.8 - 0.9
Tap Ratio % - 1 ± 0.2, 2 ± 0.4, 4 ± 0.8, 5 ± 1.0, 10 ± 2.0 -
Typ. Peak Isolation dB 40 - 55
Min. Isolation, λc ± 10 nm, 23℃, all polarization states dB 30 - 48
Min. Extinction Ratio dB - 20
Min. Return Loss dB - 50 -
Min. Directivity dB - 50 -
Max. Optical Power (Continuous Wave) mW - 300 -
Max. Tensile Load N - 5 -
Operating Temperature - -5 to +70 -
Storage Temperature - -40 to +85 -
Fiber Type - -

SMF-28 or PM Panda fiber for tap port

PM Panda fiber for input & ouput ports

-

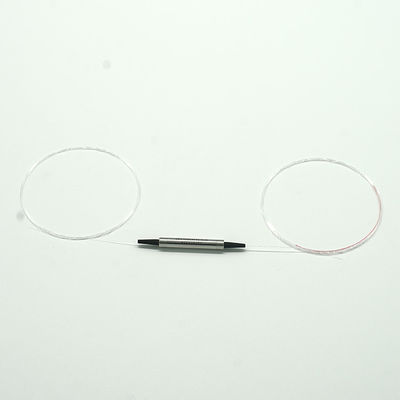

ST UPC Hybrid Polarization Maintaining Tap Isolator Dual Stage 1310/1480nm 0ST UPC Hybrid Polarization Maintaining Tap Isolator Dual Stage 1310/1480nm 1
