1550nm Inline Fiber Optic Polarizer SM PM Fiber Out FC APC High Isolation

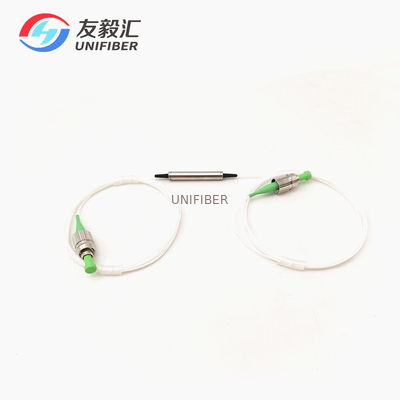

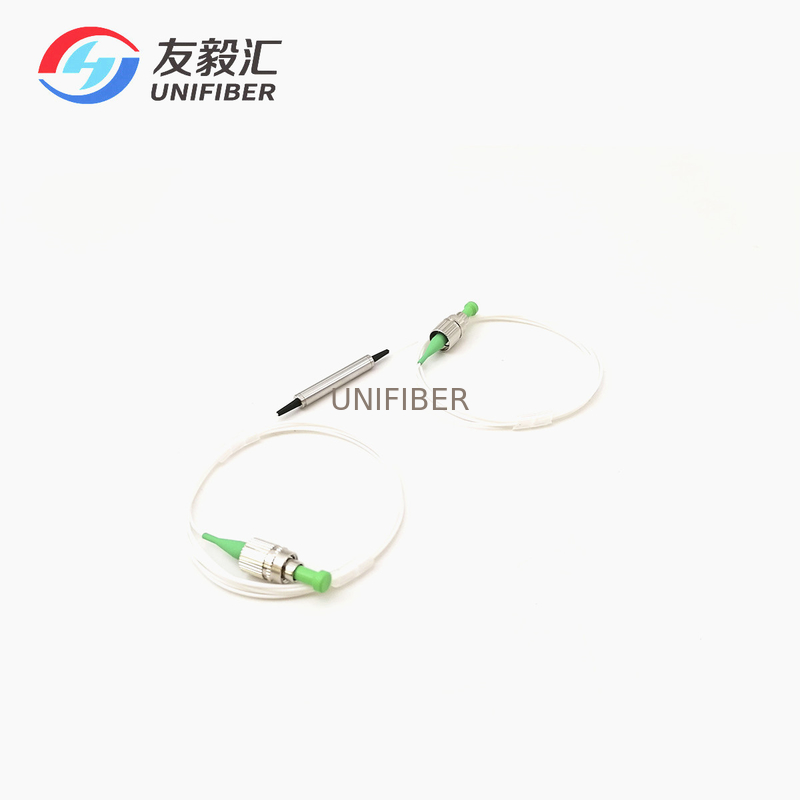

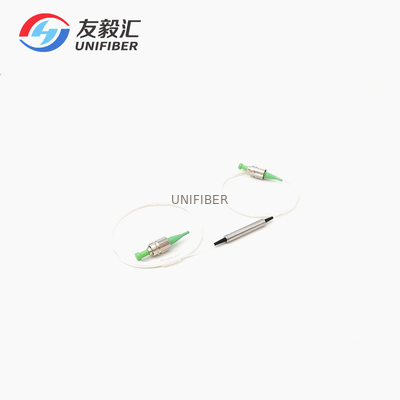

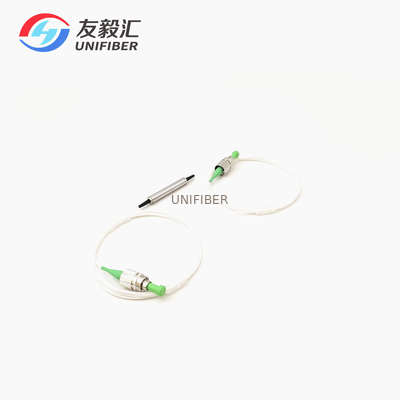

Large Image : 1550nm Inline Fiber Optic Polarizer SM PM Fiber Out FC APC High Isolation

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	1550nm Inline Fiber Optic Polarizers

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Blister case
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	1550nm Inline Fiber Optic Polarizers	Wavelength:	1310nm,1480nm Or 1550nm
Fiber:	SMF-28e Fiber Or PM Panda Fiber	Pigtail Style:	900um Loose Tube
Fiber Length:	1.5m	Connector:	FC/APC
High Light:	1550nm Inline Fiber Optic Polarizer , SM PM Fiber Optic Polarizer , FC APC Ethernet Optical Isolator

The In-line Polarizer is designed to pass light with one specific polarization while blocking the other polarization. It can be
used to convert unpolarized light into polarized light with high extinction ratio. It can also be used to enhance the extinction ratio of signals with its excellent polarization properties. It is ideal for high speed communication systems and test instrumentations where high polarization extinction ratio is required.

Features:

Low Insertion Loss
High Return Loss

High Isolation
High stability and reliability
Epoxy free on optical path

Application

Optical network

Power monitoring
Fiber sensor

Fiber optic Amplifiers

Specification

Parameter	Specification
Center Wavelength(nm)	1310,1480 or 1550
Bandwidth(nm)	±40
Typical Insertion Loss at 23℃(dB)	0.3
Max.Insertion Loss at 23℃(dB)	0.5
Typical Extinction Ratio at 23℃(dB)	30
Min.Extinction Ratio at 23℃(dB)	28
Min.Return Loss(dB)	50
Operation Temperature(℃)	-5~+70
Storage Temperature(℃)	-40~+85
Fiber	SMF-28e fiber or PM panda fiber
Dimension(mm)	Φ5.5×L35
