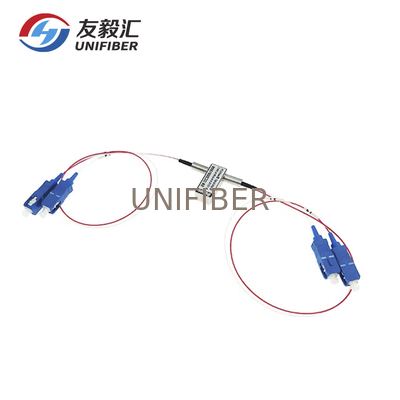

2x2B Bypass Mechanical Fiber Optical Switch 1310nm 1550nm Single Mode

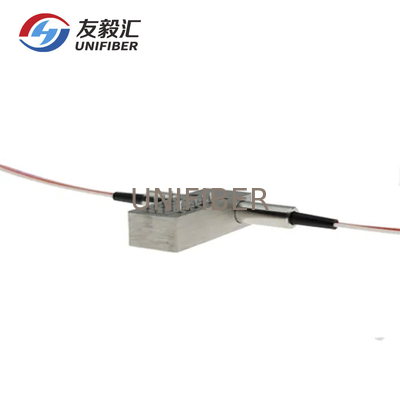

2x2B Bypass Mechanical Fiber Optical Switch 1310nm 1550nm Single Mode
2x2B Bypass Mechanical Fiber Optical Switch 1310nm 1550nm Single Mode 2x2B Bypass Mechanical Fiber Optical Switch 1310nm 1550nm Single Mode

Large Image :  2x2B Bypass Mechanical Fiber Optical Switch 1310nm 1550nm Single Mode

Product Details:
Place of Origin: CHINA
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: 2x2 bypass optical switch
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Blister Case
Delivery Time: 5~8days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs
Detailed Product Description
Product: Mechanical Optical Switch Port: 1x2 Or 2x2
Control Type: Latching Or Non-Latching Voltage: 3V Or 5V
Wavelength: 1310/1550nm Connector: SC/UPC
High Light:

2x2B Bypass Fiber Optical Switch

,

1550nm Fiber Optical Switch

,

1310nm Mechanical Optical Switch

2x2B Bypass Mechanical Fiber Optical Switch 1310nm 1550nm Single Mode



Description of 1x2 2x2 Bypass Mechanical Optical Switch Non-latching 3V/5V

2x2B mechanical Fiber Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. Its working with Singlemode wavelength 1260~1650nm or Multimode 850/1310nm. This is using a opto-mechanical proprietary configuration and activated via an electrical control signal. The 2x2Bypas mechanical Fiber Optical Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The 2x2B mechanical Fiber Optical Switch are true switching solution for optical networking applications.



Features

Fast Switching Time

Low Insertion Loss
High Stability & Reliability
Wide Wavelength Range
Low Crosstalk
Epoxy-free on Optical Path
Compact Size
Latching or Non-latching type





Application

R&D in Laboratory
System Monitoring
OADM
MAN (Metropolitan Area Network)



Specification

Parameter
Unit
2x2B Single Mode Mechanical Optical Fiber Switch
Wavelength Range
nm
850±40/1300±40
1260~1650
Operating Wavelength
nm
850/1300
1310/1550
Insertion Loss
dB
<1.2
<1.0
Return Loss
dB
MM≥30 SM≥50
Crosstalk
dB
MM≥35 SM≥55
Polarization Dependent Loss
dB
0.05
WDL
dB
≤0.25
TDL
dB
≤0.25
Repeatability
dB
≤±0.02
Power Supply
V
3.0 or 5.0
Lifetime
times
≥107
Switch Time
ms
≤8
Optical Power
mW
≤500
Operating Temperature
-20~+75 (-40~+85 available)
Storage Temperature
-40~+85
Dimension
mm
(L)27.0×(W)12.0×(H)8.2

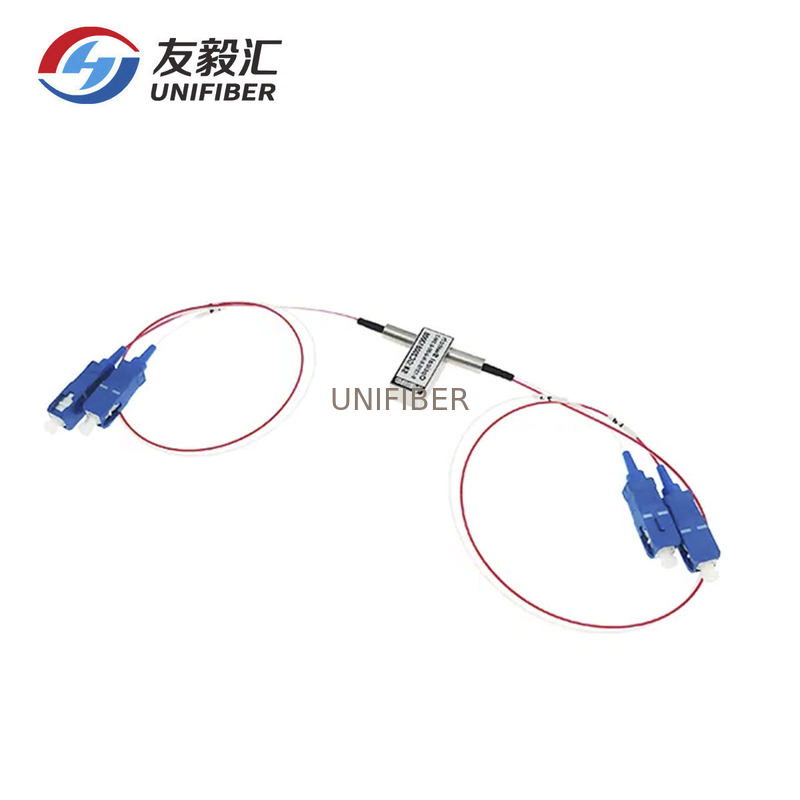

Picture of 2x2 SM 1310/1550nm Bypass Mechanical Fiber Opitc Switch

2x2B Bypass Mechanical Fiber Optical Switch 1310nm 1550nm Single Mode 0
