2x2 Bypass Mechanical Optical Switch 1310nm/1550nm No-Latching 3V SC/UPC

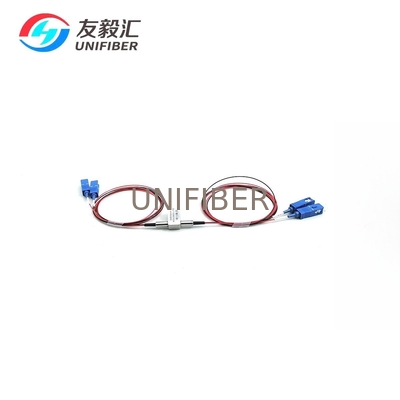

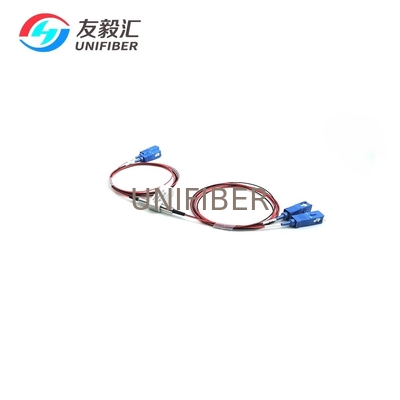

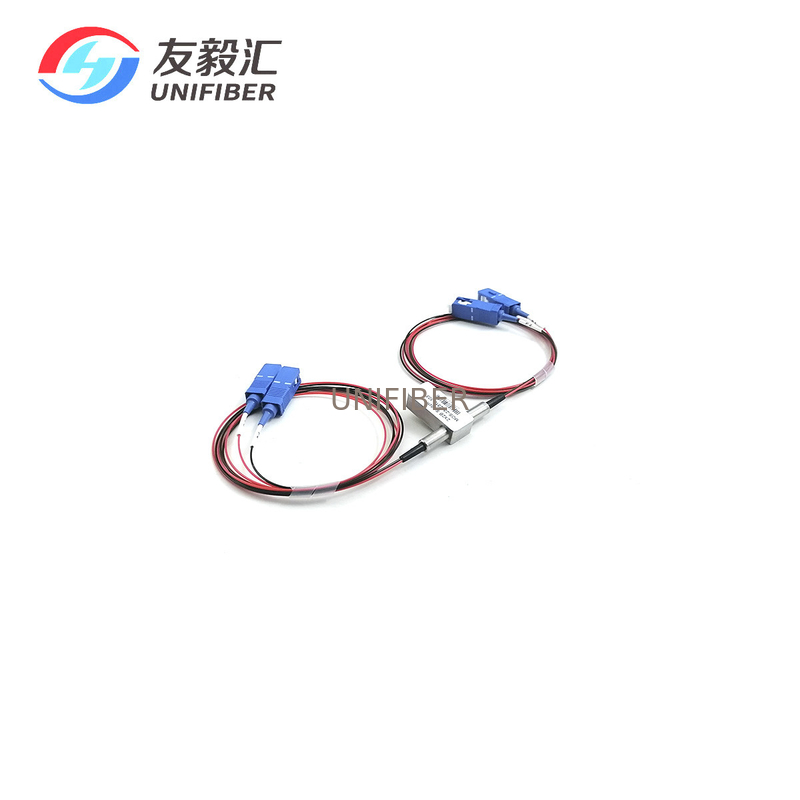

Large Image : 2x2 Bypass Mechanical Optical Switch 1310nm/1550nm No-Latching 3V SC/UPC

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	2x2 Mechanical Bypass Optical Switch

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Blister Case
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	100pcs/day

Contact Now

Detailed Product Description

Product:	Bypass Mechanical Optical Switch	Wavelength:	1310nm/1550nm
Power Supply:	3V Or 5V	Control Model:	Non-Latching
Fiber Diameter:	900um Loose Tube	Connector:	SC/UPC

2x2B Mechanical Optical Switch is used to turn on, turn off and switch optical signal. The 2x2B Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.

Features:

Short switching time

Highly Stable & Reliable
Compact design, Miniature size
Low Insertion Loss
Wide operating wavelength Range
Fail-Safe Latching and Non-latching
Single mode or Multimode optional

Application

System Monitor
Configurable OADM
Metropolitan Area Network
R&D in Laboratory

Specification

Parameter	2×2B-MM/SM
Wavelength Range(nm)	850±40	1260~1650
Operating Wavelength	850	1310/1490/1550/1625/1650
Insertion Loss(dB)	Typ:0.8 Max:1.2	Typ:0.6 Max:0.8
Return Loss(dB)	MM≥30?SM≥50
Crosstalk(dB)	MM≥45?SM≥55
Polarization Dependent Loss(dB)	≤0.05
WaveLength Dependent Loss(dB)	≤0.25
Temperature Dependent Loss(dB)	≤0.25
Repeatability(dB)	≤±0.02
Power Supply(V)	3.0 or 5.0
Lifetime(time)	≥10^7
Switch Time(ms)	≤8
Transmission Power(mW)	≤500
Operating Temperature(℃)	-20~+70
Storage Temperature(℃)	-40~+85
Weight(g)	16
Dimension(mm)	(L)27.0×(W)12.0×(H)8.2
