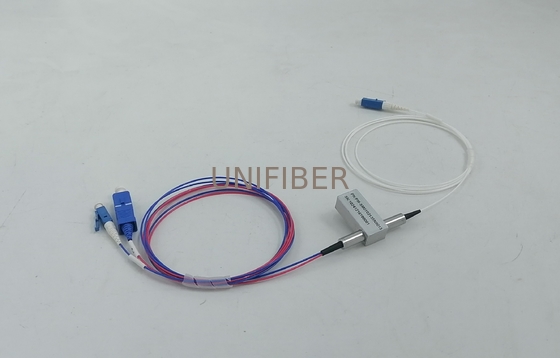

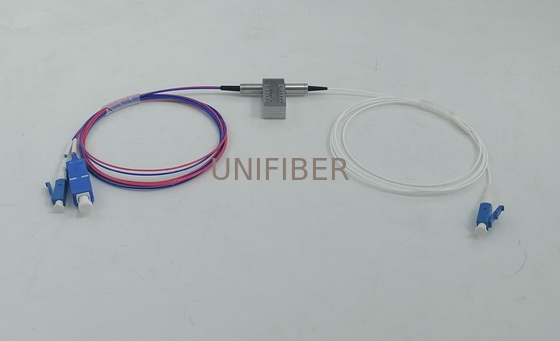

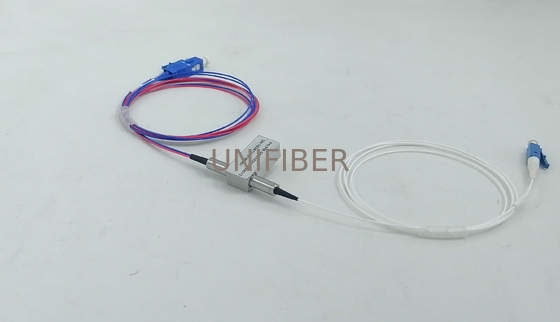

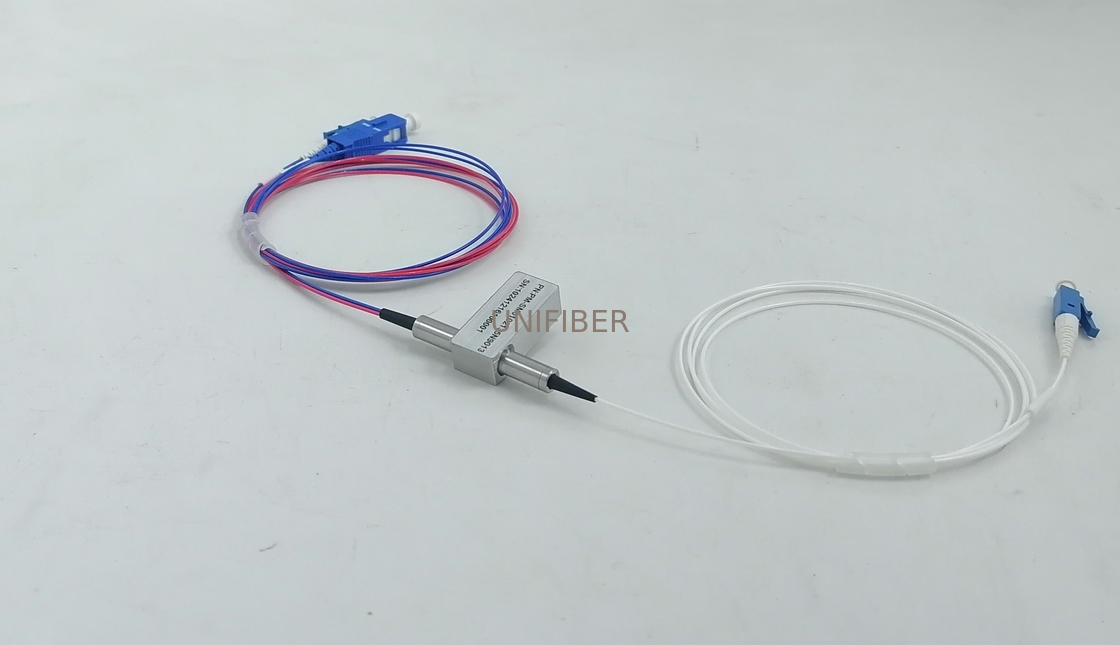

| Product: | 1x2 Polarization Maintaining Mechanical Optical Switch | Wavelength: | 1310nm Or 1550nm |
|---|---|---|---|
| Power Supply: | 3V Or 5V | Control Model: | Non-Latching |
| Fiber Diameter: | 900um Loose Tube | Fiber Length: | 1m |
| Use: | System Testing And Protection. |
Polarization Maintaining Optical Switch (PM Fiber Switches) is a passive component possessing two or more ports that selectively transmits, redirects or blocks optical signals from a given input port to a given output port in an optical fiber transmission line. Unifiber’s polarization maintaining (PM) fiber switches are fabricated from PM panda fibers and high-quality connectors that are compatible with industry standards. They are able to maintain a well-defined state of polarization (SOP) of the light.
Features
Low cost
Low insertion loss
High stability and reliablility
Epoxy free on optical path
Application
OADM
System monitoring
Optical network protection
Equipement
Specification
| Parameters | Specification |
| Operating Wavelength(nm) | 1310z±30 or 1550±30 |
| Insertion Loss(dB) | Typ: 0.6 Max: 0.8 |
| Return Loss(dB) | ≥50 |
| Cross Talk(dB) | ≥55 |
| Extinction Ratio(dB) | ≥18 |
| WDL(dB) | ≤0.25 |
| TDL(dB) | ≤0.25 |
| Repeatability(dB) | ≤0.02 |
| Power Supply(V) | 3.0 or 5.0 |
| Lifetime(Times) | ≥107 |
| Switch Time(ms) | ≤8 |
| Transmission Power(mW) | ≤300 (High power is available) |
| Operating Temperature(℃) | -20 ~ +70 |
| Storage Temperature(℃) | -40 ~ +85 |
| Fiber Typle | Panda PM fiber |
| Dimension(mm) | L27 x W12 x H8.2 |
