Product Details:
Place of Origin: China
Brand Name: Unifiber or OEM
Certification: Rohs
Model Number: Polarization Maintaining Optical Switch 2x2
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable

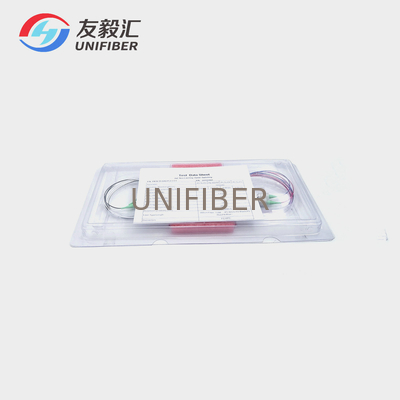

Packaging Details: Blister Case
Delivery Time: 3~5days
Payment Terms: L/C, T/T
Supply Ability: 1000
Detailed Product Description
Product: PM 2x2 Mechanical Optical Switch Fiber: PM 1310 Or PM 1550nm Pand Fiber
Voltage: 3V Or 5V Control Type: Non-Latching Or Latching
Connector: FC/APC Application: Optical Network Protection
High Light:

Mechanical Fiber Optic Switch

,

FC APC Connector Fiber Optic Switch

,

Mechanical Optical Fiber Switch

FC APC Connector Mechanical Fiber Optic Switch Non Latching Control Type



2x2 Polarization Maintaining PM Mechanical Fiber Optic Switch build by PM Panda Fiber, It is a passive component possessing two or more ports that selectively transmits, redirects or blocks optical signals from a given input port to a given output port in an optical fiber transmission line. it widely used for protection, restoration, testing & measurement, and monitoring in telecom applications and many PM fiber-optic systems.



Features

High stability and reliablility

Epoxy-free on Optical Path

Low insertion loss



Application

Optical Network Monitoring

Optical Signal Switching and Routing

Military Communications

Testing of Fiber Optic Component



Specification

Items
2x2 Polarization Maintaining PM Mechanical Optical Switch Non-Latching
Operating Wavelength (nm)
1310± 40
1550±40
Insertion Loss (dB)
IL ( P Grade)
< 1.2
< 1.2
Wavelength Dependent Loss (WDL) (dB)
≤ 0.30
≤ 0.30
PDL (dB)
≤ 0.05
≤ 0.05
TDL(dB)
< 0.25
< 0.25
Crosstalk(dB)
>55
>55
Repeatability(dB)
< ± 0.02
Extinction Ratio (dB)
> 18
Return Loss(dB)
> 55
Switch Time (ms)
<10 (Typ.4)
Resistance (pin 1-5 or 6-10) (ohms)
178 ± 10%
Power Supply (V)
5
Transmission Power (mW)
500
Lifetime(times)
>10 million
Operating Temperature(°C)
0 ~ +70
Storage Temperature (°C)
-45 ~ +85
Fiber Type
PM1310 / PM1550
Fiber Length (m)
1.0 +/- 0.1
Dimensions (LxWxH) (mm)
28.3 × 12.0 × 8.5

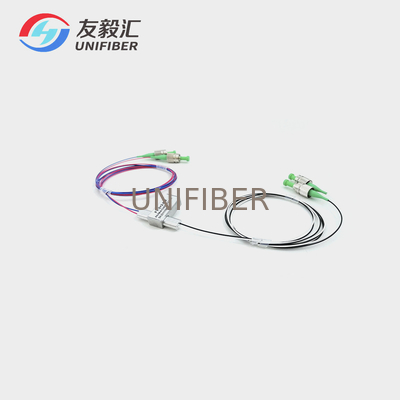

Picture of 2x2 1310nm 1550nm Polarization Maintaining PM Mechanical Optical Switch

FC APC Connector Mechanical Fiber Optic Switch Non Latching Control Type 0
