CATV / LAN Telecom Fiber Optic Pigtail

CATV / LAN Telecom Fiber Optic Pigtail

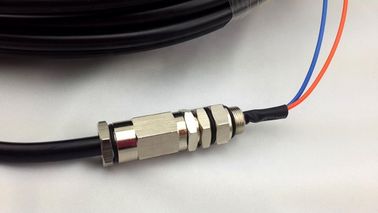

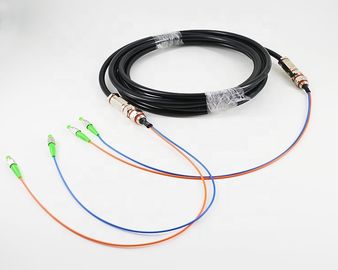

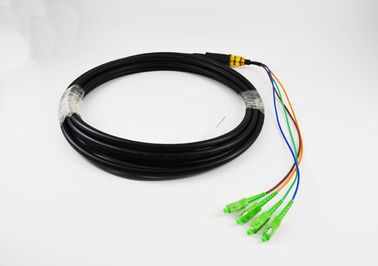

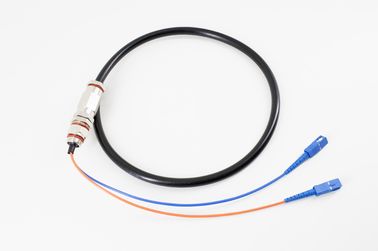

CATV / LAN Telecom Fiber Optic Pigtail CATV / LAN Telecom Fiber Optic Pigtail CATV / LAN Telecom Fiber Optic Pigtail CATV / LAN Telecom Fiber Optic Pigtail

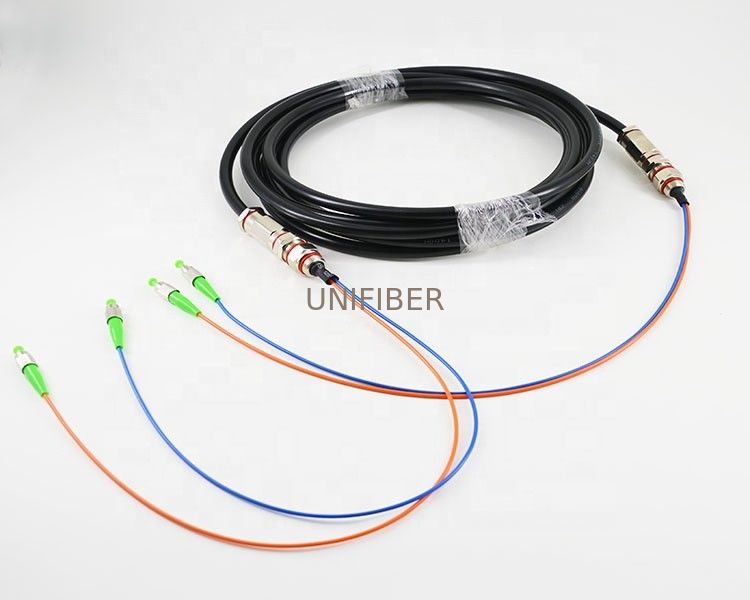

Large Image :  CATV / LAN Telecom Fiber Optic Pigtail

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Payment Terms: T/T, Western Union
Detailed Product Description
Connector: LC SC FC ST Fiber Type: G652D G657A
Fiber Count: 2/4/6/8/12 Fibers Cable Jacket: PVC, LSZH, OFNP, OFNR,PE
High Light:

optical fiber pigtail

,

duplex pigtail

LAN Telecom Fiber Optic Pigtail, FC/SC connector, 2//4/6cores,China outdoor waterproof pigtail cable manufacture

Fiber optic waterproof pigtails can be used in harsh environment. It is mainly used in outdoor connection of the optical transmitter. Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables.

Key Features

Good reliability and stabilityExcellent water-resistance performanceWaterproof, rigid and anti-corrosive copper connectorSimple installation

Applications

Optic fiber communications systemsOptical CATV & LANTelecommunication networksOptical communication networksConnecting with backbone optical cable and RX

Specification

Parameters

Parameter Singlemode Fiber Multimode Fiber
PC UPC APC PC
Insertion Loss(dB) ≤0.3 ≤0.2 ≤0.3 ≤0.3
Return Loss(dB) ≥45 ≥50 ≥60 ≥20
Exchangeability(dB) ≤0.2
Plug-pull life(times) >1000
Operating temperature(℃) -40~+75
Storage temperature(℃) -45~+80
Fiber model φ0.9mm, φ2.0mm, φ3.0mm



Custom Information

UNIFIBER offers custom-made pigtails/patch cord with a wide variety of options:
a. "Unjacketed" fiber pigtails usually installed inside ODF unit.
b. Multi-Strand fiber pigtails without a jacket are ideal for fusion splicing.
c. Multi-Strand fiber pigtails with fan-out are designed for patch panels or cable ducts where space-saving is required.
d. 2, 4, 6, 8, 12, 24 and 48 Strand fiber counts available.
Note :All pigtails can be customized in any fiber type, length, connectors and fiber counts for your requirement.

CATV / LAN Telecom Fiber Optic Pigtail 0CATV / LAN Telecom Fiber Optic Pigtail 1CATV / LAN Telecom Fiber Optic Pigtail 2CATV / LAN Telecom Fiber Optic Pigtail 3
