Product Details:
Payment & Shipping Terms:
|
| Pigtail Color: | 6/12 Colors | Fiber Type: | OM3 50/125 μm |
|---|---|---|---|
| Length: | 1m,1.5m,3m Or Customized | Fiber Count: | 4/6/8/12 Fibers |
| Connector: | LC SC FC ST | Polish Type: | UPC Or APC |
| High Light: | 6 core optical fiber pigtail,125um ftth fiber optic cable |
||

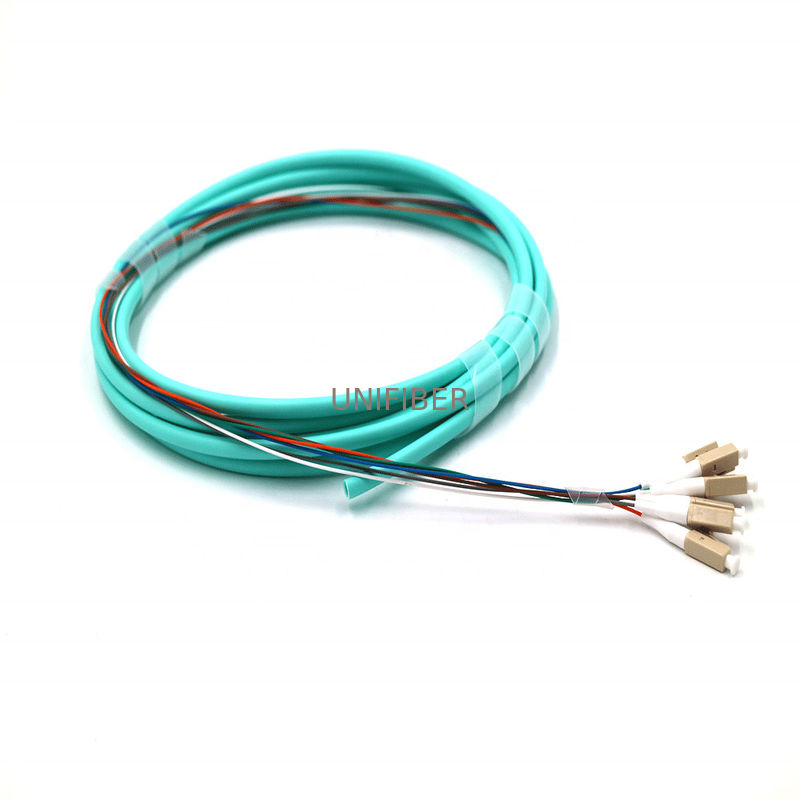

6 core OM3 fiber pigtail LC/UPC Multimode 50/125um Bunch PVC (OFNR) 0.9mm 1.5m (5ft) for fusion or mechanical splicing
UNIFIBER fiber optic pigtails includes 1fiber, 4/6/8/12 fiber pack with different connectors of SC, LC,FC, ST , with UPC or APC polish type. These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket. Widely used in10G-10G Structured Fiber Cabling Accomplished by Deploying Bunch Fiber Optic Pigtail and FHD Series Cable Management
FEATURES
SC,LC,FC,ST connector for option.
Any length is available: 1m,1.5m or other length you required.
Different fiber diameter for option: 0.9mm, 2mm or 3mm
Telecom level and insertion loss below 0.3 db.
APPLICATION
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
