Product Details:
Payment & Shipping Terms:
|
| Pigtail Color: | 12 Colors | Fiber Type: | G652D G657A |
|---|---|---|---|
| Length: | 1m,1.5m,3m Or Customized | Fiber Count: | 4/6/8/12 Fibers |
| Connector: | LC SC FC ST | Polish Type: | UPC Or APC |
| High Light: | g652d g657a optical fiber pigtail,12 core pigtail fiber optic cable |
||

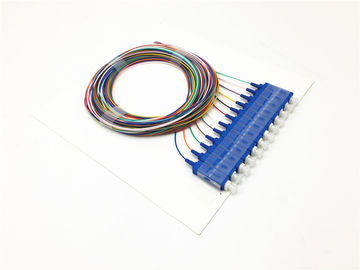

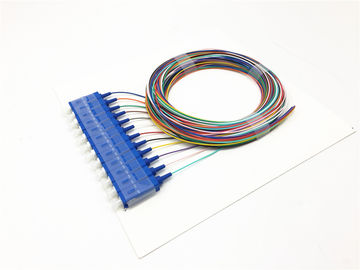

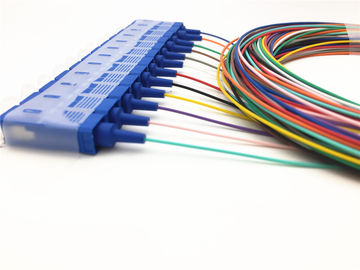

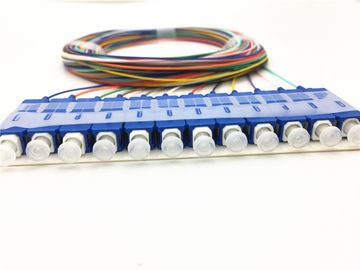

12 Fibers SC/UPC Single-Mode Color-Coded Fiber Optic Pigtail 1.5m 3m, 900um Unjacketed for fiber distribution box
UNIFIBER 250um,900um 4/6/8/12 core multi-fiber fan-out pigtails with different connectors of SC, LC,FC, ST , it come with UPC or APC polish. the pigtails can be singlemode, multimode or OM3, with PVC or LSZH jacket. Widely used in CATV, FTTH/FTTX, telecomunication networks, premise installations, Data processing networks, LAN/WAN network, and more.
FEATURES
Single fiber or Multi-fiber 4/6/8/12 core Optional
Different fiber diameter of 250um bare fiber,0.9mm, 2mm or 3mm
SC,LC,FC,ST connector with UPC or APC polished
Any length is available: 1m,1.5m or other length you required.
Faster connector identification with color-coded pigtail kits.
Tight buffer pigtail for ease of splicing.
APPLICATION
Optical distribution Frame
FHD fiber enclosure
Fiber Distribution Box
Data Center
Telecommunications
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
