Product Details:
Payment & Shipping Terms:
|
| Voltage: | 3V 5V | Control Model: | Latching Or Non-Latching |
|---|---|---|---|
| Fiber Type: | SM Or MM | Fiber Diameter: | 250um 900um Or 2.0/3.0mm |
| Wavelength: | 850nm 1310nm 1490nm 1550nm ..... | Connector: | FC SC LC ST... |
| High Light: | OADM Mechanical Switch,1x2 Mechanical Optical Switch |
||

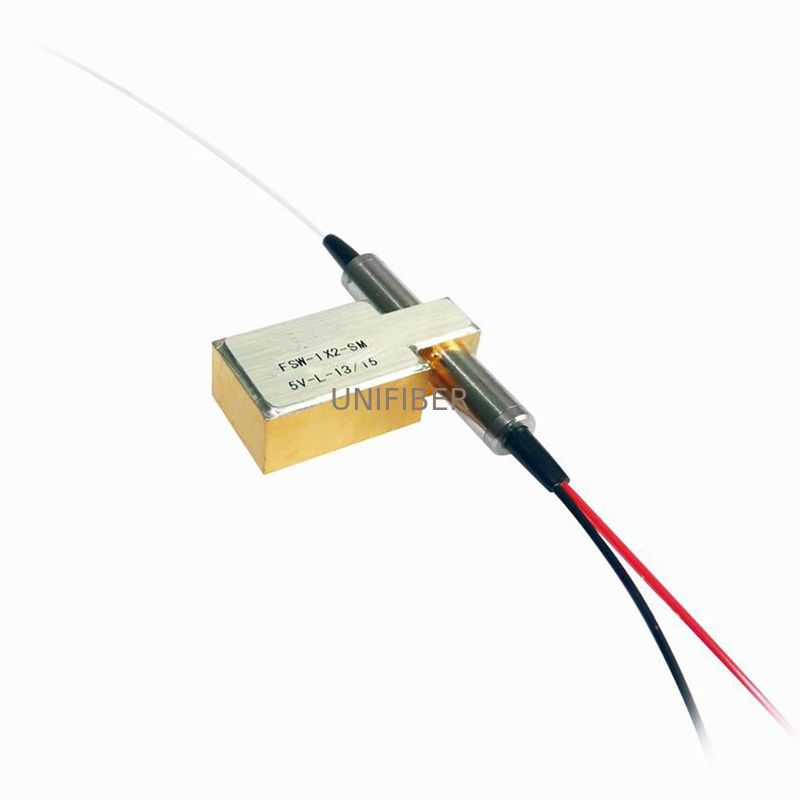

1x2 Fiber Optical Mechanical Switch, 5V, Non-latching control, 1310/1550nm, for OADM or System Monitoring
1x2 Mechanical Optical Switch support all wavelength at 1260nm~1650nm, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
|
Features ♦ Low Insertion loss ♦ Wide Wavelength Range ♦ Low Crosstalk ♦ High Stability, High Reliability ♦ Epoxy-free on Optical Path ♦ Latching and Non-latching |
Applications ♦ Channel Blocking ♦ Configurable Add/Drop ♦ System Monitoring ♦ Instrumentation |
Technical Paremeter
| Parameters | FSW-1×2 | ||
| Wavelength Range | nm | 850±40 / 1300±40 | 1260~1650 |
| Operating Wavelength | nm | 850/1300 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.5 Max:1.0 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | V | 3.0 or 5.0 | |
| Lifetime | Time | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20~+80 | |
| Storage Temperature | ℃ | -40~+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27×(W)12.0×(H)8.2 | |
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.
Pins
| Control Model | Optical Path | Electric Drive | Status Sensor | ||||||
| 1×2 | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 | |
| Latching | P1-P2 | -- | -- | GND | V+ | Close | Open | Open | Close |
| P1-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
| Non-latching | P1-P2 | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P3 | V+ | -- | -- | GND | Open | Close | Close | Open | |
Optical Route
| Status One | Status Two |
|
|
|
Electric
| Specifications | Voltage | Current | Resistance |
| 5V Latching | 4.5~5.5 | ≥50mA | 125Ω |
| 5V Non-latching | 4.5~5.5 | ≥40mA | 175Ω |
| 3V Latching | 2.7~3.3 | ≥70mA | 50Ω |
| 3V Non-latching | 2.7~3.3 | ≥50mA | 70Ω |
Ordering Information
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
|
S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
00=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LP/APC X=Others |
