Product Details:
Payment & Shipping Terms:
|
| Connector: | LC SC FC ST | Fiber Type: | G652D G657A1 G657A2 G657B3 |
|---|---|---|---|
| Fiber Count: | 1/4/6/8/12 Fibers | Pigtail Color: | 12 Colors |
| Jacket: | PVC/LSZH | Diameter: | 0.9mm 1.2mm 1.6mm 2.0mm 3.0mm |
| High Light: | G657A1 Fiber Pigtail Single Mode,1.5m Pigtail Fiber Optic |
||

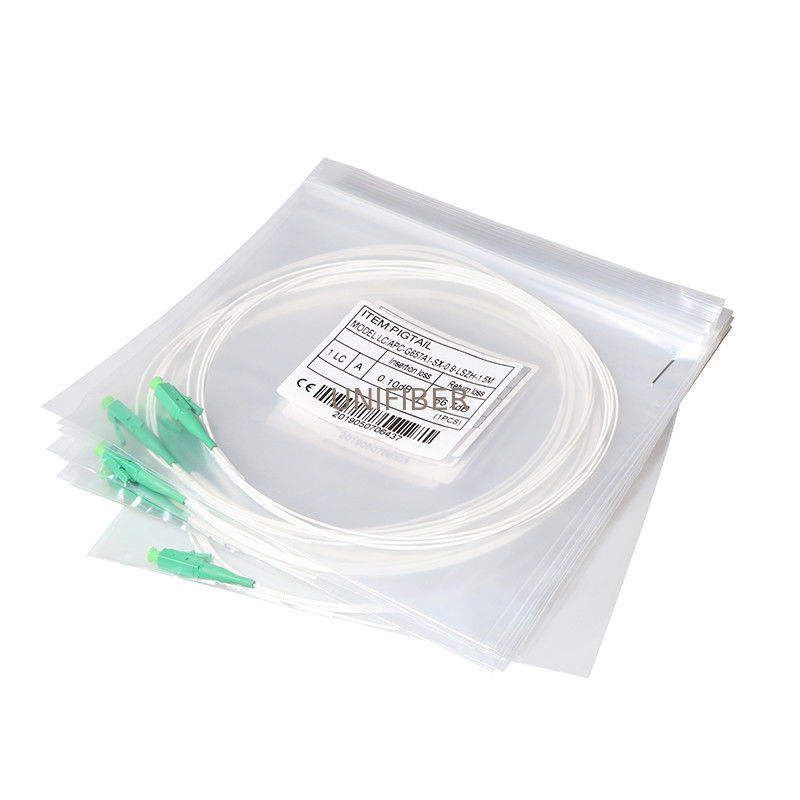

Pigtail LC/APC, G657A1 fiber, Single mode, OS2, 9/125, 0,9mm, LSZH, white or yellow color 1.5m
UNIFIBER build virious of fiber optic pigtails with 1F 4F 6F 8F 12F with standard connectors LC, FC, SC, ST, MU, MTRJ, MPO, D4, DIN, SMA, E2000, ect, UPC or APC polished. They are widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more.
Features
Low Insertion Loss & PDL
High return loss (low amounts of reflection at the interface)
Factory-terminated and Tested
Ease of installation
Low environmental sensitivity
APPLICATION
Access Network
Telecom/CATV Systems
Active device termination
Local Area Networks (LANs)
Metro
Test equipment
Data processing networks
Wide Area networks (WANs)
FTTX
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
