Single Mode FC/APC FC/UPC 0.9mm Optical Fiber Pigtail

Single Mode FC/APC FC/UPC 0.9mm Optical Fiber Pigtail
Single Mode FC/APC FC/UPC 0.9mm Optical Fiber Pigtail Single Mode FC/APC FC/UPC 0.9mm Optical Fiber Pigtail Single Mode FC/APC FC/UPC 0.9mm Optical Fiber Pigtail Single Mode FC/APC FC/UPC 0.9mm Optical Fiber Pigtail

Large Image :  Single Mode FC/APC FC/UPC 0.9mm Optical Fiber Pigtail

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: FC
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: PE bag
Delivery Time: 3~5 business days
Payment Terms: T/T, Western Union
Supply Ability: 10000pcs/day
Detailed Product Description
Connector: LC SC FC ST Fiber Type: G652D G657A1 G657A2 G657B3
Fiber Count: 1/4/6/8/12 Fibers Pigtail Color: 12 Colors
Jacket: PVC/LSZH Diameter: 0.9mm 1.2mm 1.6mm 2.0mm 3.0mm
High Light:

0.9mm Single Mode Fiber Pigtail

,

FC/UPC Pigtail Fiber Optic

Optical pigtail FC/APC FC/UPC, 0.9mm, single mode, 9/125um, PVC/LSZH, 2m

Fiber optic pigtails are typically used to link the fiber optic cable with fiber optic equipment. The connector side of the pigtail is used to link the equipment, while the other side is fusion spliced together with the fiber cable. By splicing together, the fiber glasses, it can reach a minimum insertion loss.


Features:
Individually bagged with individual test certificates;
Can be labelled and packaged to your requirements;
Fire Performance - LSZH applications flame resistance IEC 60332-1;
Ferrule Material - Full zirconia;
Low insertion loss, Low back reflection loss;
Flexible and easy to strip fiber buffering;
Identifiable fiber buffer colors under all lighting conditions;
Reduces installation time;
Avoids incorrect patching by possible fiber flipping.


Applications:
Optical fiber communication systems engineering.
Fiber optic data communication network.
Fiber CATV engineering.
Other optical technology tests.



Parameters

Connector Type LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, MU/APC,etc...
Fiber Type Single mode /Multimode
50/125µm, 62.5/125µm (Multimode) OM2&OM1
50/125µm, 10G (Multimode) OM3
Cable Type Simplex, Duplex
Φ3.0mm, Φ2.0mm, Φ0.9mm
Jacket: PVC or LSZH
Insertion Loss ≤0.10dB (For Single mode Master)
≤ 0.25dB (For Single mode Standard)
≤ 0.25dB (For Multimode)

Return Loss

(Single mode)



UPC ≥ 50dB
SPC ≥ 55dB
APC ≥ 60dB (typ.65dB)
Repeatability ±0.10dB
Operating temperature -40°C ~ +85°C

Geometry Requirement

(Single mode)







Ferrule End face Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30μm (For Master)
Apex Offset ≤ 50μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm





Cable Diameter Connector Type Fiber Type Cable Type Polish Cable Length
0.9mm LC 9/125µm SM Simplex PC 1M
2.0mm FC 50/125µm MM Duplex APC 2M
3.0mm SC 62.5/125µm MM Multi-fiber UPC 3M
  ST OM3 Ribbon   5M
  MU OM4     .........
  D4       Customized
  MTRJ
  MPO
  DIN

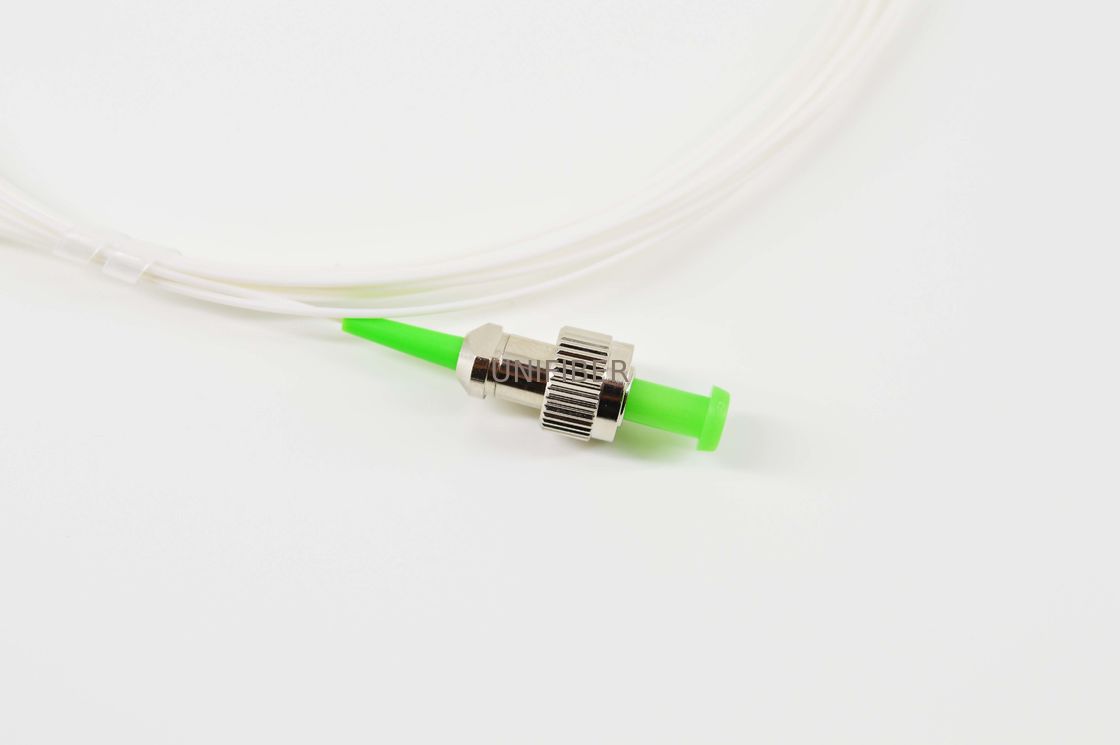

Single Mode FC/APC FC/UPC 0.9mm Optical Fiber Pigtail 0

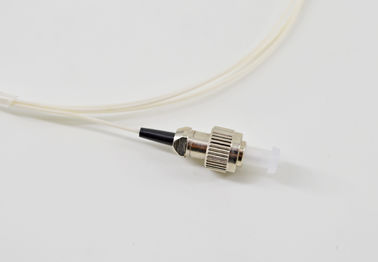

 Single Mode FC/APC FC/UPC 0.9mm Optical Fiber Pigtail 1
