FTTH Optitap SC APC Pre Connectorized Fiber Optic Pigtail

Name: FTTH Optitap SC APC Pre Connectorized Fiber Optic Pigtail
Brand: UNIFIBER-OEM
SKU: MINI SC
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (182 reviews)

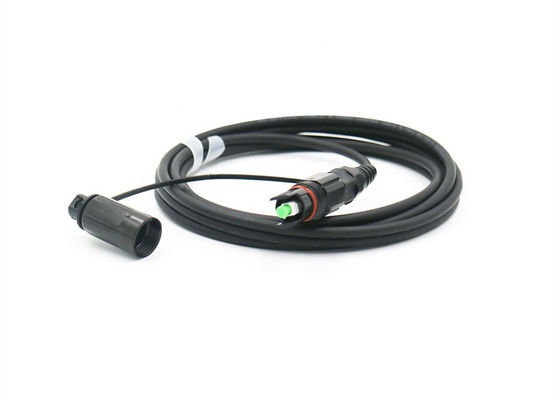

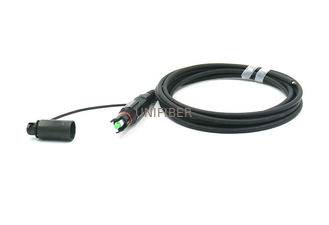

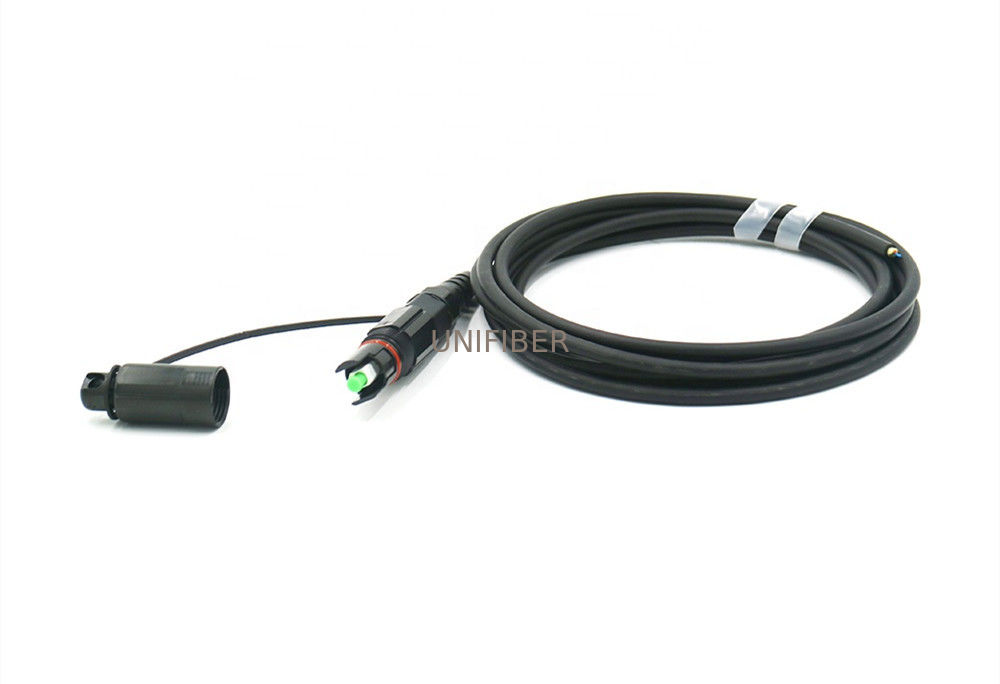

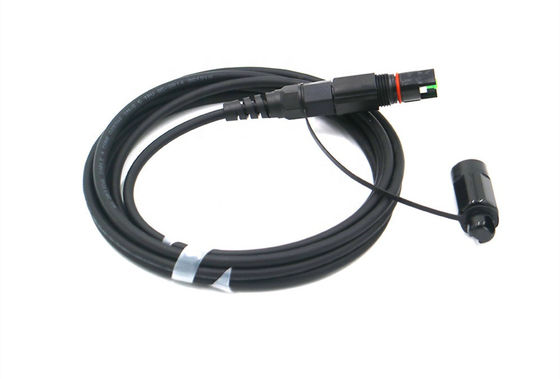

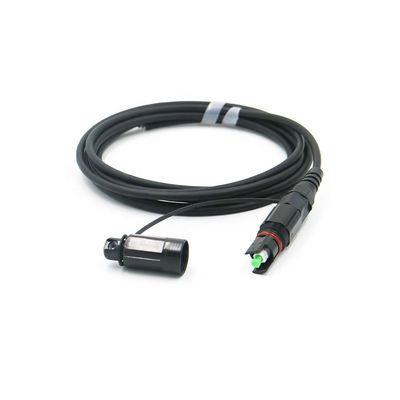

Large Image : FTTH Optitap SC APC Pre Connectorized Fiber Optic Pigtail

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	MINI SC

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Cable Diameter:	4.8mm/7.0mm	Cable Jacket:	LSZH,PE,TPU,UV Resistance
Cable Length:	1/3/5/10m Or Customized	Fiber Count:	Single Fiber
Fiber:	G657A	Connectors:	Mini SC/APC
High Light:	Pre Connectorized Fiber Optic Pigtail , FTTH Optitap Fiber Optic Pigtail , SC APC Drop Cable Pigtail

FTTH Optitap Compatible H-Connector mini SC/APC Pre Connectorized Drop Cable Fiber optic pigtail

Outdoor Corning OptiTap H connector SC / FC /ST / LC Fiber Optic Patch Cord Cable Optical Fiber optitap waterproof outdoor 4.6mm/4.8mm/ 5.0mm/4.5*8.1mm patch cords cables, optitap optical connectors are match with Corning devices. Fiber Optic Corning Jumper patch cables. optitap optical connector waterproof fiber optic patch cords assembly for FTTA.FTTH

Application
Outdoor Areas

FTTH

Harsh Environment

Feature

Single fiber, SC-based connector

No installation tools required

In-line connection available

Bird proof and rodent resistant IP67 water and dust protection

Low profile in-line receptacle available

Cable diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥30dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

FTTH Optitap SC APC Pre Connectorized Fiber Optic Pigtail 0
