Product Details:
Payment & Shipping Terms:
|
| Product: | Set Of E2000 Fiber Optic Pigtail | Fiber: | G652D/G657A/OM2/OM3/OM4/OM5 |
|---|---|---|---|
| Connector: | E2000/APC | Fiber Count: | 12 Core |
| Pigtail Type: | 0.9mm Tight Bufferred | Pigtail Length: | 1.5m |
| Package: | Blister Case | OEM: | Support |
| High Light: | 1.5m Length Optical Fiber Pigtail,OM4 Optical Fiber Pigtail,OS2 Pigtail Fiber Optic Cable |
||

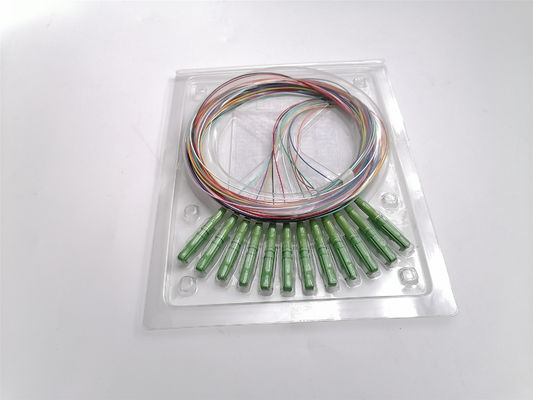

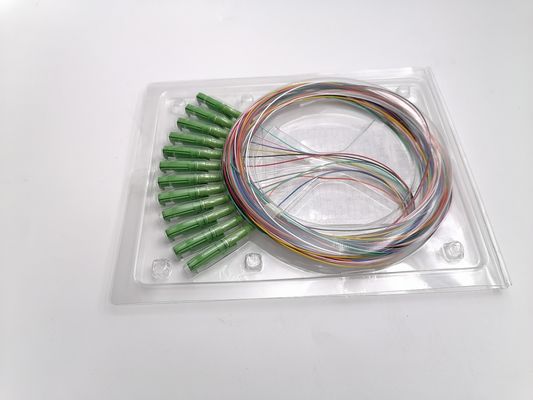

Single mode OS2 9/125um 12 core color coded fan-out E2000 fiber optic pigtail set
Fiber optical pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other. UNIFIBER offer kinds of pigtails, such as standard type LC, FC, SC, ST, MU, MTRJ, MPO, D4, DIN, SMA, E2000, ect, also provide bundle multi-fiber pigtails.
Application:
Widely used in CATV, FTTH/FTTX
Telecommunication networks,premise installations
Data processing networks, LAN/WAN network
Features:
SC,LC,FC,ST connector with UPC or APC polished
Zirconia Ceramic Ferrule Optimum IL and RL.
Faster connector identification with color-coded pigtail kits.
Tight buffer pigtail for ease of splicing.
Single fiber or Multi-fiber 4/6/8/12 core Optional
Any length is available: 1m,1.5m or other length you required.
Application:
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
