Product Details:
Payment & Shipping Terms:
|
| Product: | SC UPC 12 Fibers Unjacketed Color-Coded Fiber Optic Pigtail | Fiber: | G652D/G657A/OM2/OM3/OM4/OM5 |
|---|---|---|---|
| Connector: | SC/UPC | Fiber Count: | 12 Fibers |
| Pigtail Type: | 0.9mm Unjacketed Color-Coded | Pigtail Length: | 1m |
| Package: | Blister Case | OEM: | Support |
| High Light: | Unjacketed Fiber Optic Pigtail,SC UPC Fiber Optic Pigtail,3ft Single Mode Fiber Pigtail |
||

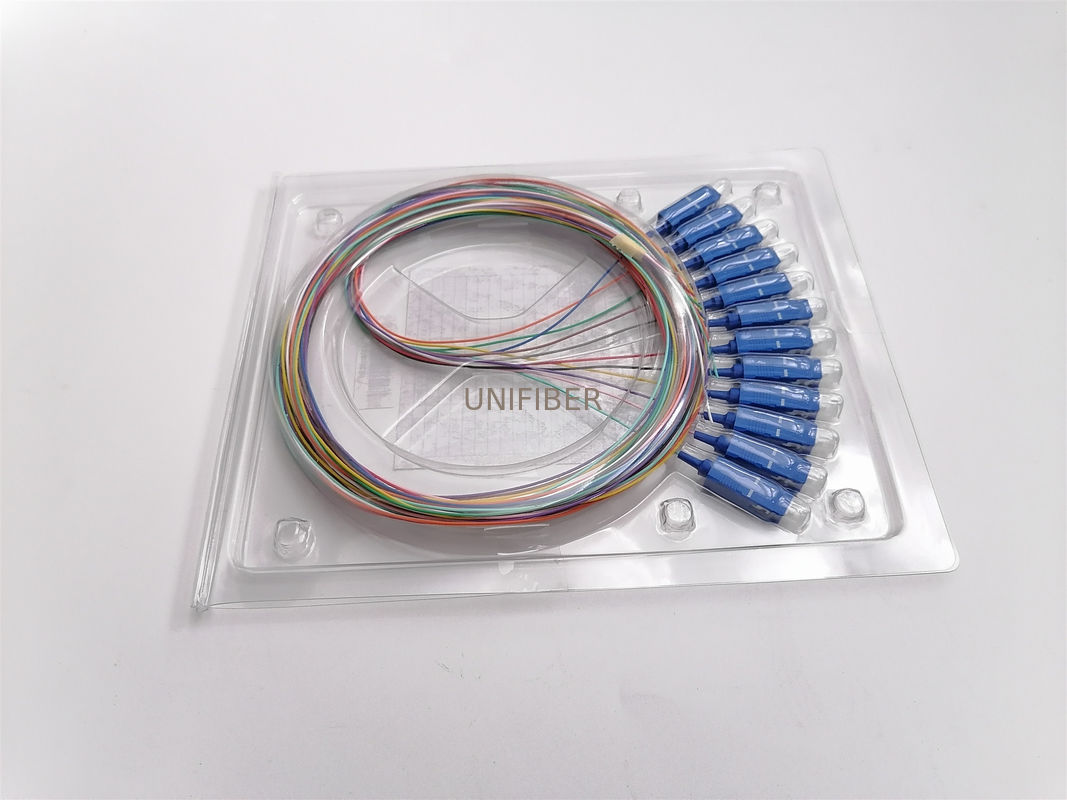

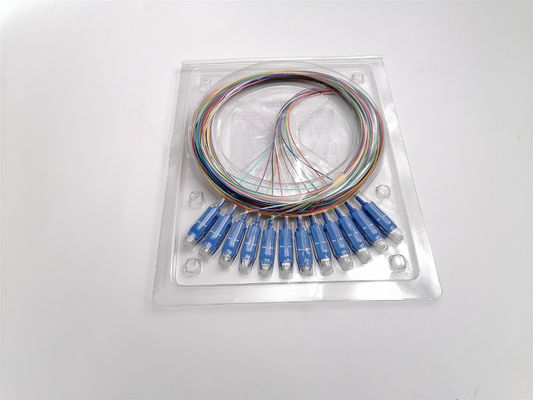

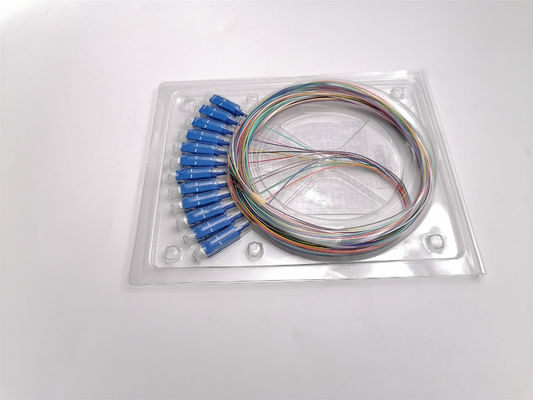

1m (3ft) SC UPC 12 Fibers OS2 Single Mode Unjacketed Color-Coded Fiber Optic Pigtail
Fiber optic pigtails the typical use is to link the fiber optic cable with fiber optic equipment, the fiber optic pigtail with connector side is used to link the equipment, while the other side of the pigtail is melted together with the fiber cable, by melting together the fiber glasses, iCommon types of fiber optic pigtails are usually with 0.9mm fiber cable diameter, and usually installed inside ODF unit. most commonly used types are SC fiber optic pigtail, ST fiber optic pigtail,FC fiber optic pigail, LC fiber optic pigtail ,MT-RJ fiber optic pigtail,SC/APC fiber optic pigtail, FC/APC fiber optic pigtail and E2000 fiber optic pigtail.UNIFIBER offer kinds of pigtails from 1F/4F/6F/8F/12F for options.
Application:
Widely used in CATV, FTTH/FTTX
Telecommunication networks,premise installations
Data processing networks, LAN/WAN network
Features:
Single fiber or Multi-fiber 4/6/8/12 core Optional
Any length is available: 1m,1.5m or other length you required.
Faster connector identification with color-coded pigtail kits.
Tight buffer pigtail for ease of splicing.
SC,LC,FC,ST connector with UPC or APC polished
Zirconia Ceramic Ferrule Optimum IL and RL.
Application:
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
