Product Details:
Payment & Shipping Terms:
|
| Product: | 12 Fibers SC/APC 0.9mm Color-Coded Fiber Optic Pigtail | Fiber: | G652D/G657A/OM2/OM3/OM4/OM5 |
|---|---|---|---|
| Connector: | SC/APC | Fiber Count: | 12 Fibers Color-Coded |
| Pigtail Type: | 0.9mm Tight Buffered | Pigtail Length: | 1m |
| Package: | Blister Case | OEM: | Support |
| High Light: | 0.9mm Fiber Optic Pigtail,Unjacketed Fiber Optic Pigtail,SC/APC Drop Cable Pigtail |
||

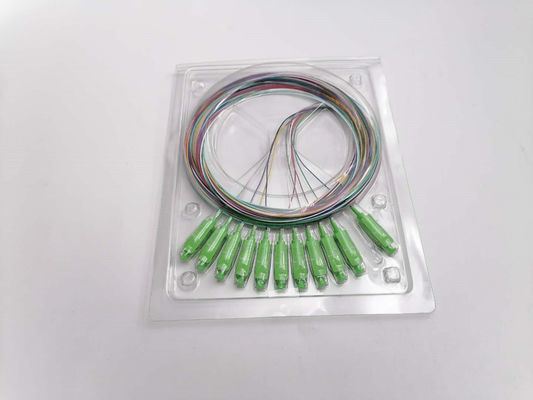

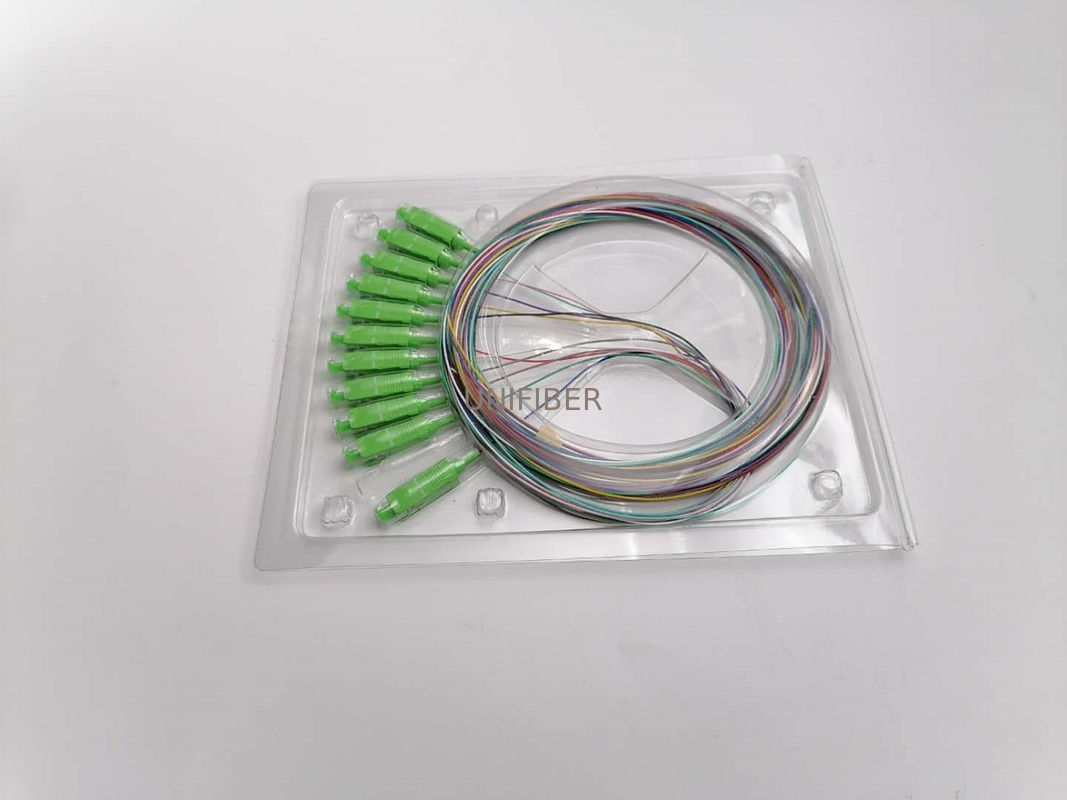

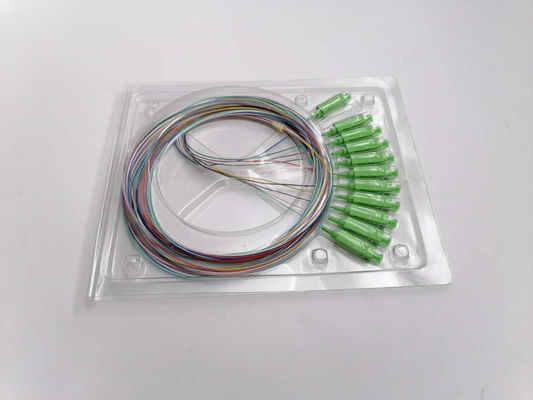

12 Fibers SC/APC Single-Mode 0.9mm Color-Coded Fiber Optic Pigtail, Unjacketed,1m
Fiber optic pigtails the typical use is to link the fiber optic cable with fiber optic equipment, the fiber optic pigtail with connector side is used to link the equipment, while the other side of the pigtail is melted together with the fiber cable, fiber optic pigtails are usually with 0.9mm fiber cable diameter, and usually installed inside ODF unit. most commonly used types are SC fiber optic pigtail, ST fiber optic pigtail,FC fiber optic pigail, LC fiber optic pigtail ,MT-RJ fiber optic pigtail,SC/APC fiber optic pigtail, FC/APC fiber optic pigtail and E2000 fiber optic pigtail.UNIFIBER offer kinds of pigtails from 1F/4F/6F/8F/12F for options.
Features:
Different fiber diameter for option: 0.9mm, 2mm or 3mm
Telecom level and insertion loss below 0.3 db.
SC,LC,FC,ST connector for option.
Any length is available: 1m,1.5m or other length you required.
Application:
Widely used in CATV, FTTH/FTTX
Telecommunication networks,premise installations
Data processing networks, LAN/WAN network
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
