Product Details:
Payment & Shipping Terms:
|
| Product: | 6 Fibers SC/APC 0.9mm Color-Coded Fiber Optic Pigtail | Fiber: | G652D/G657A/OM2/OM3/OM4/OM5 |
|---|---|---|---|
| Connector: | SC/APC | Fiber Count: | 6 Fibers Color-Coded |
| Pigtail Type: | 0.9mm Tight Buffered | Pigtail Length: | 1m |
| Package: | Blister Case | OEM: | Support |
| Highlight: | 0.9mm Pigtail Fiber Optic Cable,SC/APC Pigtail Fiber Optic Cable,125um Single Mode Pigtail Cable |
||

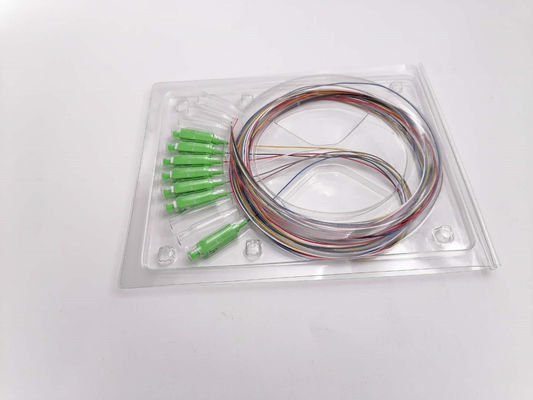

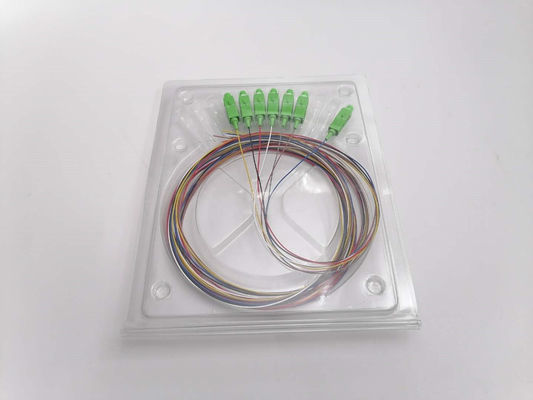

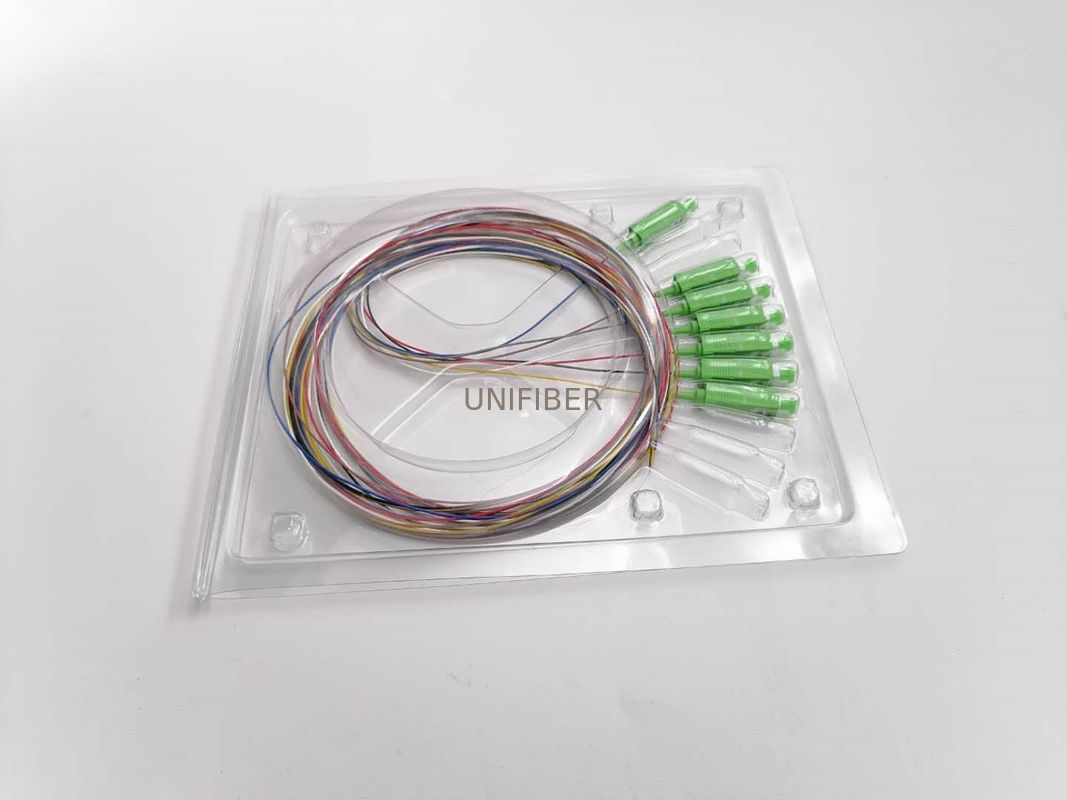

4/6/8 core fiber optic pigtail cables, SC/APC OS2 9/125um single-Mode 0.9mm tight buffered 1m
UNIFIBER provide various of fiber optic pigtails for your splicing application, includes 1fiber, 4/6/8/12 fiber pack with different connectors of SC, LC,FC, ST , with UPC or APC polish type. These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket.
Features:
SC,LC,FC,ST connector for option.
Different fiber diameter for option: 0.9mm, 2mm or 3mm
Telecom level and insertion loss below 0.3 db.
Any length is available: 1m,1.5m or other length you required.
Application:
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
