Product Details:
Payment & Shipping Terms:
|
| Product: | 2x2B Mechanical Fiber Optic Switch | Wavelength: | 1310/1550nm |
|---|---|---|---|
| Power Supply（V）: | 3V/5V | Control Model: | Non-Latching Or Latching |
| Fiber Diameter: | 900um | Fiber Length: | 1m Or Specify |
| Connector: | SC/UPC SC/APC | Optical Route: | P1-P2 P1-P3 |
| High Light: | 1310nm 5V Fiber Optic Switch,2x2B Mechanical Fiber Optic Switch,SC/UPC Connector Optical Fiber Switch |
||

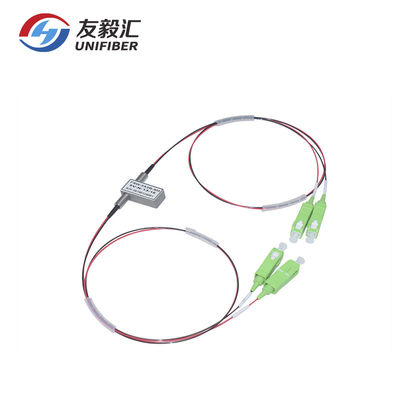

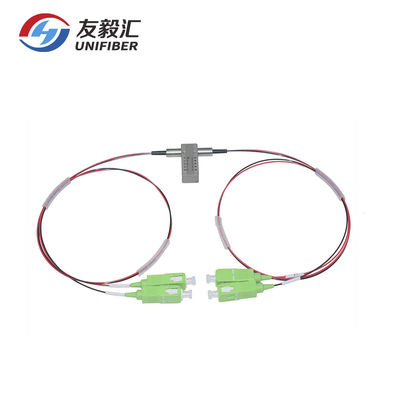

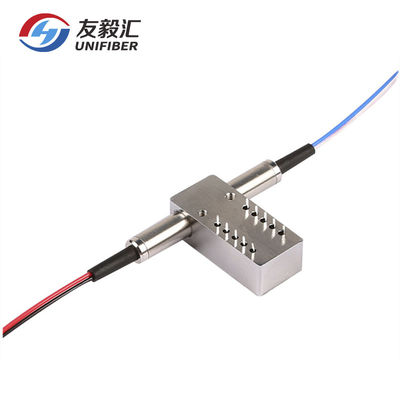

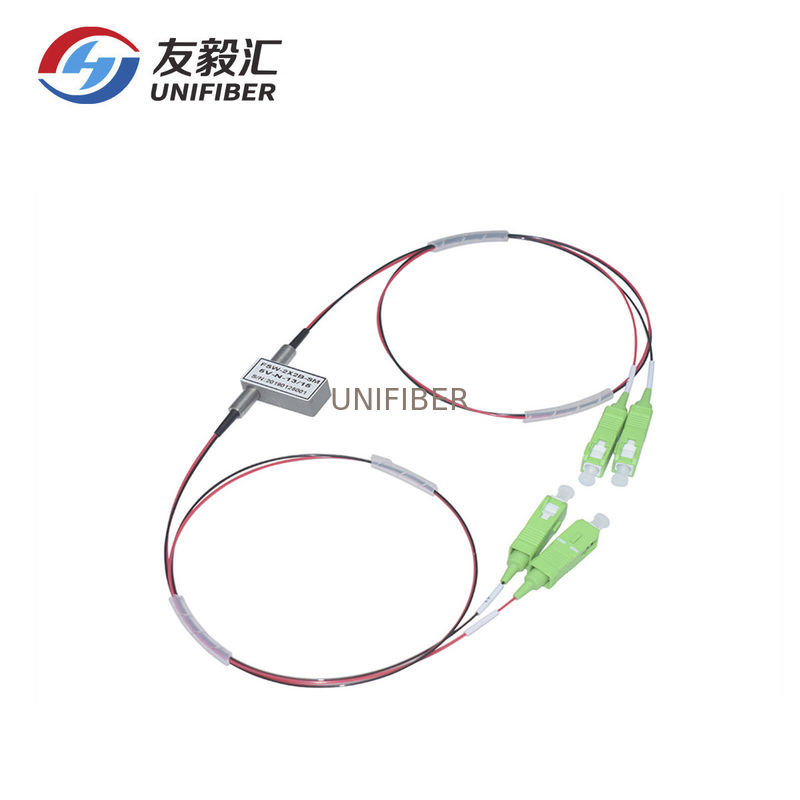

1310/1550nm Non Latching 5V 2x2B Mechanical Fiber Optic Switch
2x2B Mechanical Optical Switch is used to turn on, turn off and switch optical signal. The 2x2B Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.
Features
Low Insertion Loss
High Channel Isolation
Fast Switching Speed
Latching and Non-latching
High Stability, High Reliability
Epoxy-free on Optical Path
Unmatched Low Cost
Application
Optical Network Monitoring
Transmission equipment protection
Test & Measurement Equipment
Re-configurable OADM
Wavelength router
Network Test System
Sub-system Integration
Route Fiber Test System
Specification
| Parameter | 2×2B-MM/SM | |
| Wavelength Range(nm) | 850±40 | 1260~1650 |
| Operating Wavelength | 850 | 1310/1490/1550/1625/1650 |
| Insertion Loss(dB) | Typ:0.8 Max:1.2 | Typ:0.6 Max:0.8 |
| Return Loss(dB) | MM≥30?SM≥50 | |
| Crosstalk(dB) | MM≥45?SM≥55 | |
| Polarization Dependent Loss(dB) | ≤0.05 | |
| WaveLength Dependent Loss(dB) | ≤0.25 | |
| Temperature Dependent Loss(dB) | ≤0.25 | |
| Repeatability(dB) | ≤±0.02 | |
| Power Supply(V) | 3.0 or 5.0 | |
| Lifetime(time) | ≥10^7 | |
| Switch Time(ms) | ≤8 | |
| Transmission Power(mW) | ≤500 | |
| Operating Temperature(℃) | -20~+70 | |
| Storage Temperature(℃) | -40~+85 | |
| Weight(g) | 16 | |
| Dimension(mm) | (L)27.0×(W)12.0×(H)8.2 | |
1,Specifications may change without notice.
2,Above specification are for device without connector.
