Pre Loaded 24 Port Lc Fiber Optic Pigtail Single Mode G657A1

Large Image : Pre Loaded 24 Port Lc Fiber Optic Pigtail Single Mode G657A1

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	12 colored fiber optic pigtails

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	24 Port Lc Fiber Adapter Panels Pre-loaded With 12 Colored Fiber Optic Pigtails Single Mode G657A1	Connector:	Quad LC
Fiber Counts:	12/24	Fiber Type:	Single Mode G657A1
Fiber Length:	1M	Fiber Diameter:	0.9mm
Highlight:	Pre Loaded Fiber Optic Pigtail , Single Mode G657A1 Fiber Optic Pigtail , 24 Port Lc Fiber Optic Pigtail

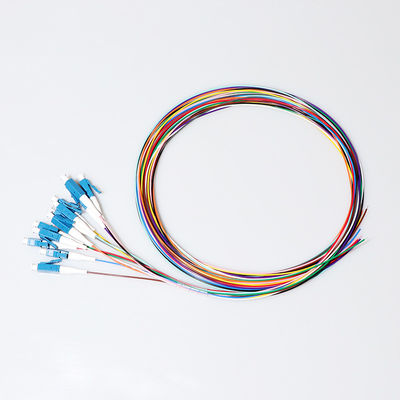

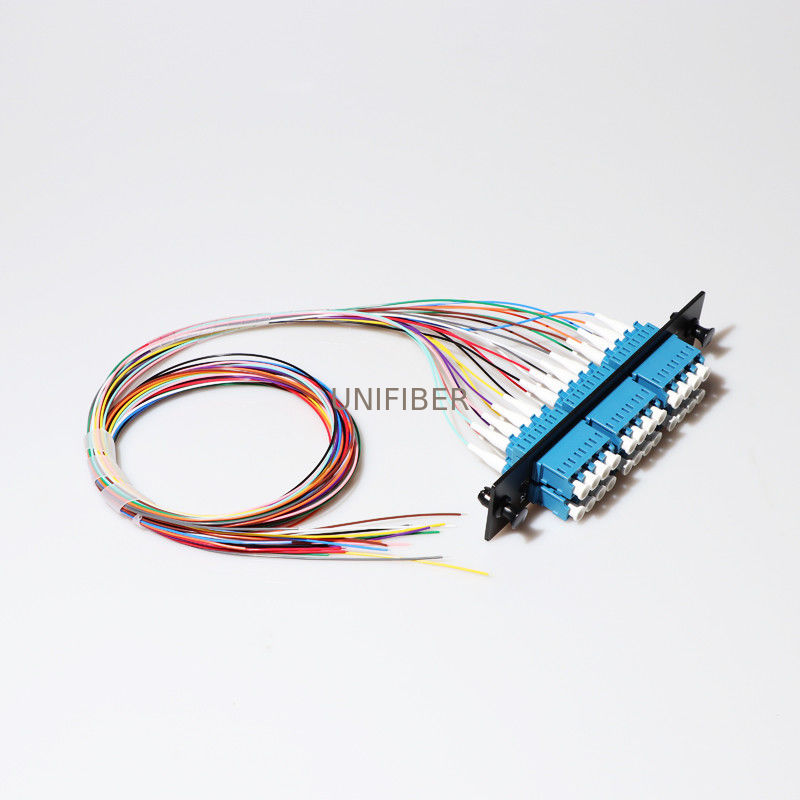

24 Port Lc Fiber Adapter Panels Pre-Loaded With 12 Colored Fiber Optic Pigtails Single Mode G657A1

Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Pigtail series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

APPLICATION

Access Network

Telecom/CATV Systems

Active device termination

Local Area Networks (LANs)

Metro

Test equipment

Data processing networks

Wide Area networks (WANs)

FTTX

FEATURES

Low cost

Low Insertion Loss & PDL

High return loss (low amounts of reflection at the interface)

Factory-terminated and Tested

Ease of installation

Reliability

Low environmental sensitivity

Connector with Ceramic Ferrules

Fiber Patch Cable Options:

1) Connector type: FC, SC, LC, ST 2) Ferrule End-face: PC, UPC, APC 3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um) 4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores,etc 5) Cable Diameter: 3.0mm,2.0mm,0.9mm 6) Cable Length: 1, 2, 3 meter or customized 7) Cable type: PVC, LSZH, OFNP


			Product Specification

			Fiber count

			12

			Fiber Mode

			9/125μm

			Connector Type1

			SC/APC

			Connector Type2

			Unterminated

			Fiber Mode

			SM

			Breakout length

			0.5m

			Wavelength

			1310/1550nm

			Jacket Material

			PVC/LSZH

			Insertion loss

			≤0.3dB

			Interchangeability

			≤0.2dB

			Return loss

			≥50dB

			Vibration

			≤0.2dB

			Operating temperature

			-40~75°C

			Storage temperature

			-45~85°C

			Fiber type

			Single mode:

			(1)9/125-G652D

			(2)9/125-G655

			(3)9/125-G657A,G657A2

			(4)9/125-G657B3

			Multimode:

			(5)50/125-OM2

			(6)62.5/125-OM1

			(7)50/125-OM3

			(8)50/125-OM4

			(9)50/125-OM5

			Fiber Brand

			YOFC, Corning, Sumitomo, Fujikura

			Connector

			SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC

			Cord type

			Simplex ,Duplex

			Cable diameter

			0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm

			Cable jacket

			PVC, OFNR, LSZH, OFNP

			length(M)

			0.5m,1m,2m,5m,10m,25m,50m,100m…Customized
