| Product: | FTTH G657B3 SC/APC Fiber Optic Pigtails | Connector: | SC/APC Or SC/UPC |
|---|---|---|---|
| Cable Diameter: | 3.0mm | Cable Jacket: | PVC/OFNR)/LSZH |
| Jacket Color: | White Or Black | Length: | 1m |
| Fiber Type: | G657B3 G657A2 G657A1 | ||
| Highlight: | Double Sheath Fiber Optic Pigtails,SC APC Fiber Optic Pigtails,G657B3 FTTH Fiber Pigtail |
||

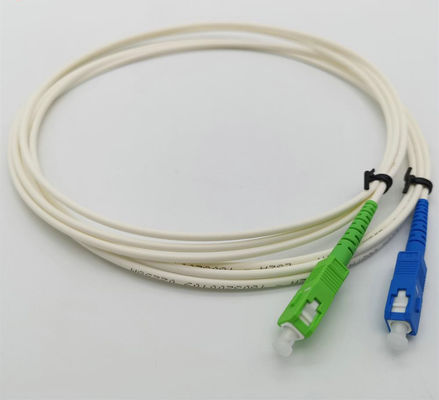

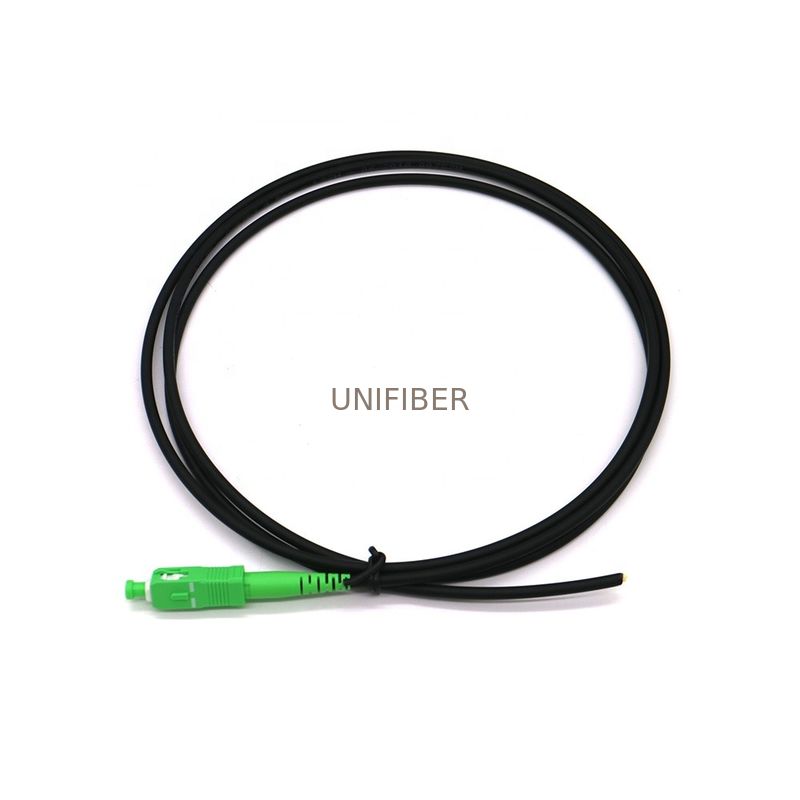

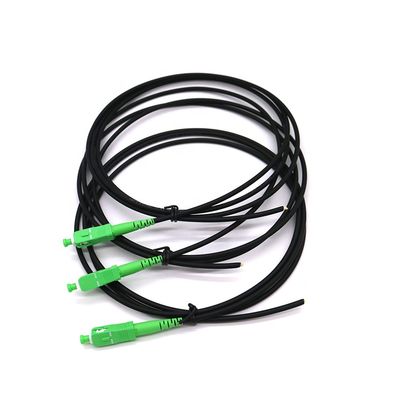

FTTH G657B3 SC/APC Fiber Optic Pigtails with1.9mm inner white LSZH sheath, outer jacket is LSZH/PE Material,it can be used indoor or outdoor ,With outer diameter of 3.5mm, it can be stripped more easily if customer need use inside 1.9mm cable to connector with patch panels,terminal box and make splicing installation .The fiber we used G657A fiber.For this type Patch cord/ pigtail length always come as 20M,30M,40M,60M,80M,100M,120M or others.
Features
Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeability
Application
Fiber optic communications in harsh outdoor environments
Outdoor communication equipment connection
Optitap connector waterproof fiber equipment SC port
Remote wireless base station
FTTx wiring project
Specification
| Fiber Mode | Singlemode or Multimode |
| Fiber Count | 1 |
| Connector Stype | SC,FC,ST,LC,MU,DIN |
| Polish or Ferrule Interface Type | PC,APC,UPC |
| Cable Lengths | Custom Lengths |
| Jacket Materials | PE Material |
| Outer Jacket Color | Black |
| Inner Jacket Color | White |
| Outer Jacket Diameter(mm) | 3.5±0.1 |
| Inner Jacket Diameter(mm) | 1.9±0.1 |
| Storage Temperature | -20°C to 60°C |
| Installation Temperature | -5°C to 50°C |
| Operating Temperature | -20°C to 60°C |
| Crush(N/100mm) | 1000 |
| Maximum Tensile Load (Long term) | 150N |
| Minimum Tensile Load (Short term) | 400N |
