Product Details:
Payment & Shipping Terms:
|
| Product: | Mechanical 2x2 Bypass Optical Switch 1310/1550nm | Wavelength: | 1310/1490/1550/1625/1650nm |
|---|---|---|---|
| Control Model: | Latching Or Non-Latching | Voltage: | 3V 5V |
| Fiber Diameter: | 900um | Connector: | FC SC LC ST... |
| High Light: | 2x2 Bypass Fiber Optical Switch,Non Latching Fiber Optical Switch,1550nm Mechanical Optical Switch |
||

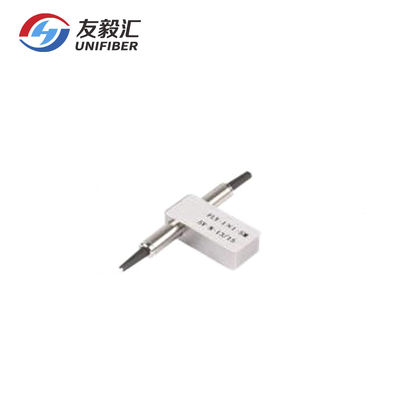

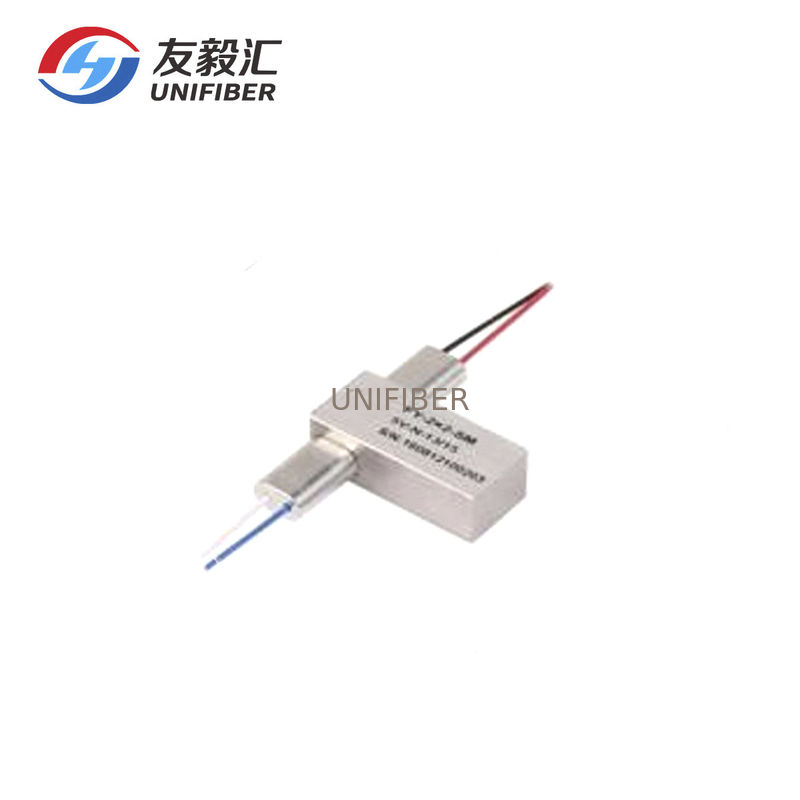

Mechanical 2x2 Bypass Optical Switch Non-Latching 1310/1550nm for Optical Add/Drop
2x2 Mechanical Optical Switch is used to turn on, turn off and switch optical signal. The 2x2 Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.
| Features | Applications |
| Unmatched Low Cost | Optical Network |
| Low Insertion loss | Protection/Restoration |
| High Channel Isolation | Optical Singnal Routing |
| High Stability, High Reliability | Configurable Optical Add/Drop |
| Epoxy-free on Optical Path | Transmitter and receiver protection |
| Latching and Non-latching | Network Test System |
| Status One | Status Two |
 |
|
| Specifications | Voltage | Current | Resistance |
| 5V latching | 4.5~5.5 | 36~44mA | 125Ω |
| 5V non-latching | 4.5~5.5 | 26~32mA | 175Ω |
| 3V latching | 2.7~3.3 | 54~66mA | 50Ω |
| 3V non-latching | 2.7~3.3 | 39~47mA | 70Ω |
| Type | Pin | Electric Drive | Status Sensor | ||||||
| 2×2 | Light Pin | Pin1 | Pin5 | Pin6 | Pin10 | Pin2-3 | Pin3-4 | Pin7-8 | Pin8-9 |
| Latching | P1-P4,P2-P3 | V+ | GND | -- | -- | Open | Close | Close | Open |
| P1-P3,P2-P4 | -- | -- | GND | V+ | Close | Open | Open | Close | |
| Non-latching | P1-P4,P2-P3 | V+ | -- | -- | GND | Open | Close | Close | Open |
| P1-P3,P2-P4 | -- | -- | -- | -- | Close | Open | Open |
Close
|
|
| Parameter | 2×2-MM/SM | |
| Wavelength Range(nm) | 850±40 | 1260~1650 |
| Operating Wavelength | 850±40 | 1310/1490/1550/1625/1650 |
| Insertion Loss(dB) | Typ:0.8 Max:1.2 | Typ:0.6 Max:0.8 |
| Return Loss(dB) | MM≥30 | SM≥50 |
| Crosstalk(dB) | MM≥65 | SM≥70 |
| Polarization Dependent Loss(dB) | ≤0.05 | |
| WaveLength Dependent Loss(dB) | ≤0.25 | |
| Temperature Dependent Loss(dB) | ≤0.25 | |
| Repeatability(dB) | ≤±0.02 | |
| Power Supply(V) | 3.0 or 5.0 | |
| Lifetime(time) | ≥10^7 | |
| Switch Time(ms) | ≤8 | |
| Transmission Power(mW) | ≤500 | |
| Operating Temperature(℃) | -20~+70 | |
| Storage Temperature(℃) | -40~+85 | |
| Weight(g) | 16 | |
| Dimension(mm) | (L)28.0×(W)12.6×(H)8.0 | |
1, Specifications may change without notice.
2, Above specification are for device without connector.
