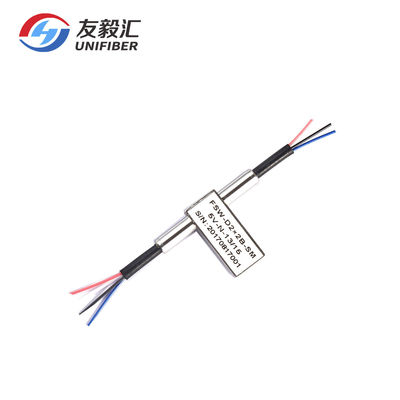

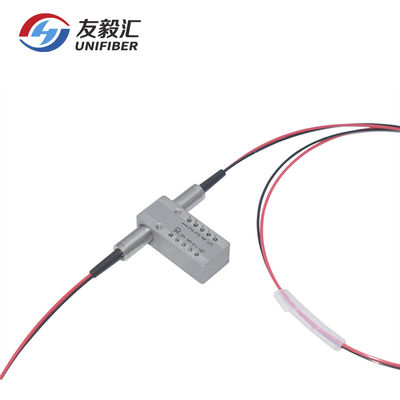

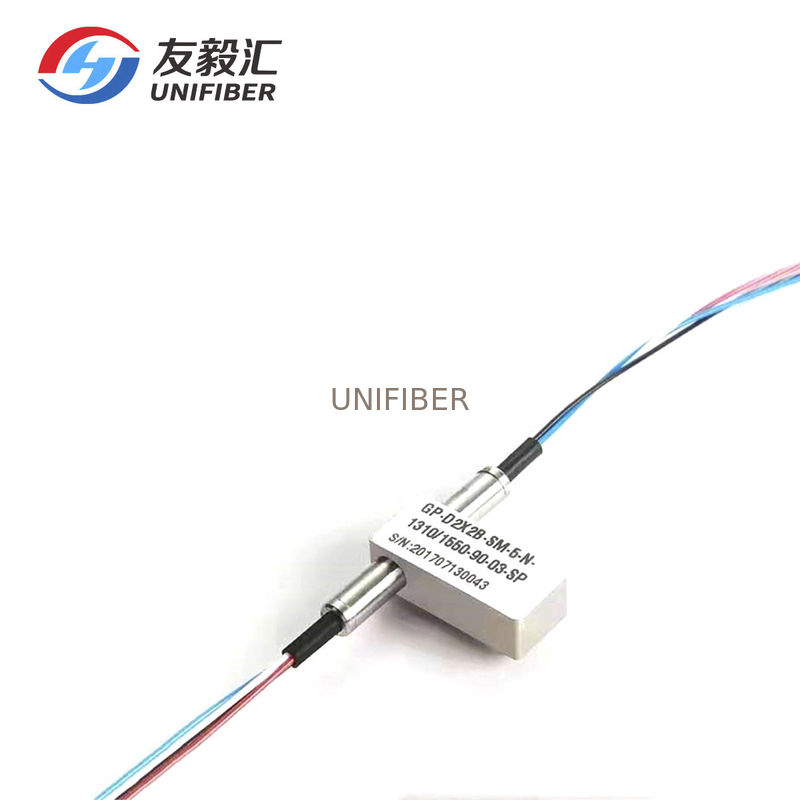

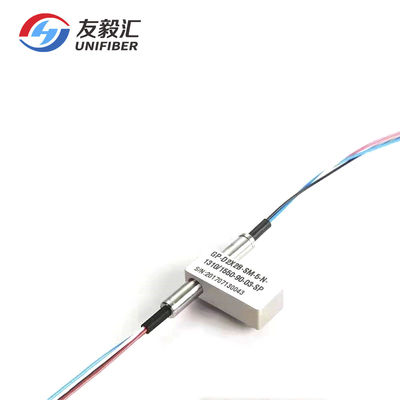

| Product: | 1310/1550nm Single Mode Dual D2x2B Mechanical Fiber Optic Switch Non-Latching | Wavelength: | 1310/1550nm |
|---|---|---|---|
| Control Model: | Non-Latching | Fiber Diameter: | 900um Loose Tube |
| Voltage: | 3V 5V | Connector: | FC SC LC ST... |
| High Light: | 1550nm Mechanical Fiber Optic Switch,Non Latching Fiber Optic Switch,OADM Single Mode Optical Switch |
||
D2×2B Mechanical Fiber Optic Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. The mechanical operation offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MMS fiberoptic switches are true switching solutions for optical networking applications.
Features
Highly Stable & Reliable
Short switching time
Compact design, Miniature size
Low Insertion Loss
Wide operating wavelength Range
Fail-Safe Latching and Non-latching
Single mode or Multimode optional
Application
System Monitor
Configurable OADM
Metropolitan Area Network
Optical Network
Optical Singnal Routing
Transmitter and receiver protection
| Type | Pin | Electric Drive | Status Sensor | ||||||
| D2×2B | Optical Pin | Pin1 | Pin5 | Pin6 | Pin10 | Pin1 | Pin5 | Pin6 | Pin10 |
| Non-latching | P1-P3,P1'-P3' | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P4,P1'-P4',P3-P2,P3'-P2' | V+ | -- | -- | GND | Open | Close | Close | Open | |
| Specifications | Voltage | Current | Resistance |
| 5V latching | 4.5~5.5 | 36~44mA | 125Ω |
| 5V non-latching | 4.5~5.5 | 26~32mA | 175Ω |
| 3V latching | 2.7~3.3 | 54~66mA | 50Ω |
| 3V non-latching | 2.7~3.3 | 39~47mA | 70Ω |
| Parameter | D2x2B Mechanical Fiber Optic Switch | |
| Wavelength Range(nm) | 670~980 | 1260~1650 |
| Operating Wavelength | 670/785/850/980 | 1310/1490/1550/1625/1650 |
| Insertion Loss(dB) | Typ:0.8 Max:1.2 | Typ:0.6 Max:1.0 |
| Return Loss(dB) | MM≥30?SM≥50 | |
| Crosstalk(dB) | MM≥30?SM≥55 | |
| Polarization Dependent Loss(dB) | ≤0.05 | |
| WaveLength Dependent Loss(dB) | ≤0.25 | |
| Temperature Dependent Loss(dB) | ≤0.25 | |
| Repeatability(dB) | ≤±0.02 | |
| Power Supply(V) | 3.0 or 5.0 | |
| Lifetime(time) | ≥10^7 | |
| Switch Time(ms) | ≤8 | |
| Transmission Power(mW) | ≤500 | |
| Operating Temperature(℃) | -20~+70 | |
| Storage Temperature(℃) | -40~+85 | |
| Weight(g) | 16 | |
| Dimension(mm) | (L)27.0×(W)12.0×(H)8.2(±0.2mm) customization is available. | |
