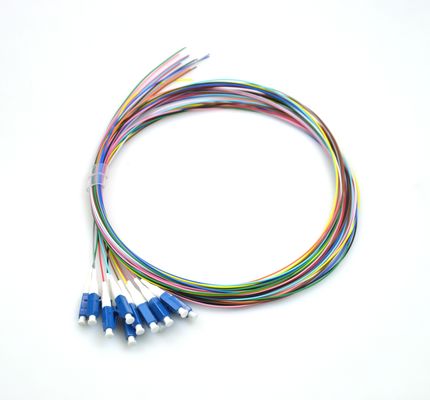

Single Mode OS2 LC UPC Ribbon Fiber Pigtails G657A1 4/6/8/12 Strand

Large Image : Single Mode OS2 LC UPC Ribbon Fiber Pigtails G657A1 4/6/8/12 Strand

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	4/6/8/12 Strand Single Mode OS2 LC/UPC Ribbon Fiber Pigtails

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable

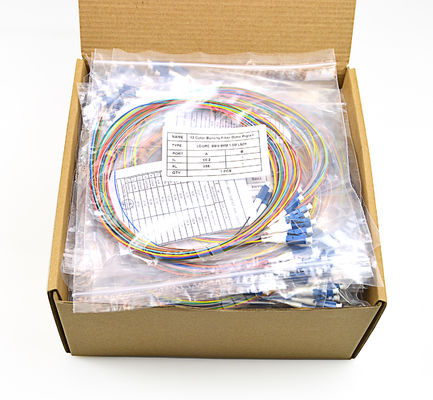

Packaging Details:	PE bag
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	4/6/8/12 Strand Single Mode OS2 LC/UPC Ribbon Fiber Pigtails	Fiber Counts:	4/6/8/12 Strand
Connector:	LC/UPC Or SC/APC	Length:	1.5m
Fiber Type:	Single Mode OS2 G657A1	Name:	Ribbon Fiber Pigtails
High Light:	LC UPC Ribbon Fiber Pigtails , Single Mode Ribbon Fiber Pigtails , G657A1Optical Fiber Pigtail

4/6/8/12 Strand Single Mode OS2 Ribbon Fiber Pigtails with different connectors of SC, LC,FC, ST , with UPC or APC polish type. These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket. Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more.

Features

4/6/8/12 Strand avaliable

SC, LC,FC, ST connectors with UPC or APC polished

Low insertion loss, high return loss
Good in repeatability and exchangeability

Application

Data Centre
Telecommunication networks
CATV
LAN and WAN
FTTX
Broadband network

Specification

Parameter	Singlemode Fiber			Multimode Fiber
Parameter	PC	UPC	APC	PC
Insertion Loss(dB)	≤0.3	≤0.2	≤0.3	≤0.3
Return Loss(dB)	≥45	≥50	≥60	≥20
Exchangeability(dB)	≤0.2
Plug-pull life(times)	＞1000
Operating temperature(℃)	-40~+75
Storage temperature(℃)	-45~+80
Fiber model	φ0.9mm, φ2.0mm, φ3.0mm
