| Product: | 1x4 Mechanical Fiber Optical Switch | Channel: | 1~128 |
|---|---|---|---|
| Voltage: | 3V/5V | Control: | Non-Latching Or Latching |
| Wavelength: | 1550nm | Fiber Type: | 1310nm |
| Highlight: | Polarization Maintaining Fiber Optical Switch,1x4 Mechanical Fiber Optical Switch,1550nm Fiber Optic Ethernet Switch |
||

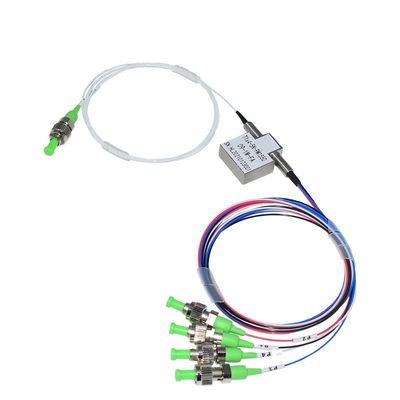

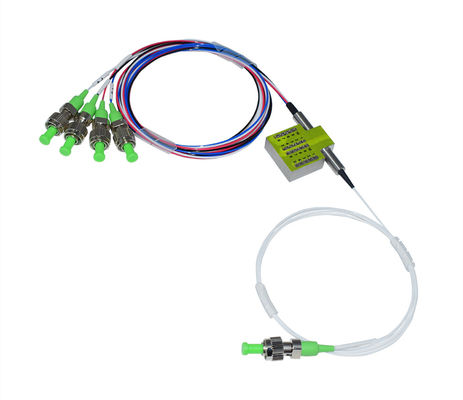

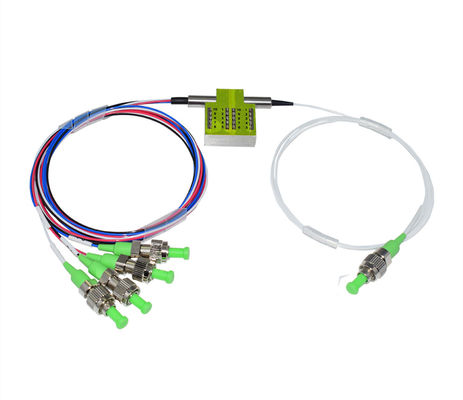

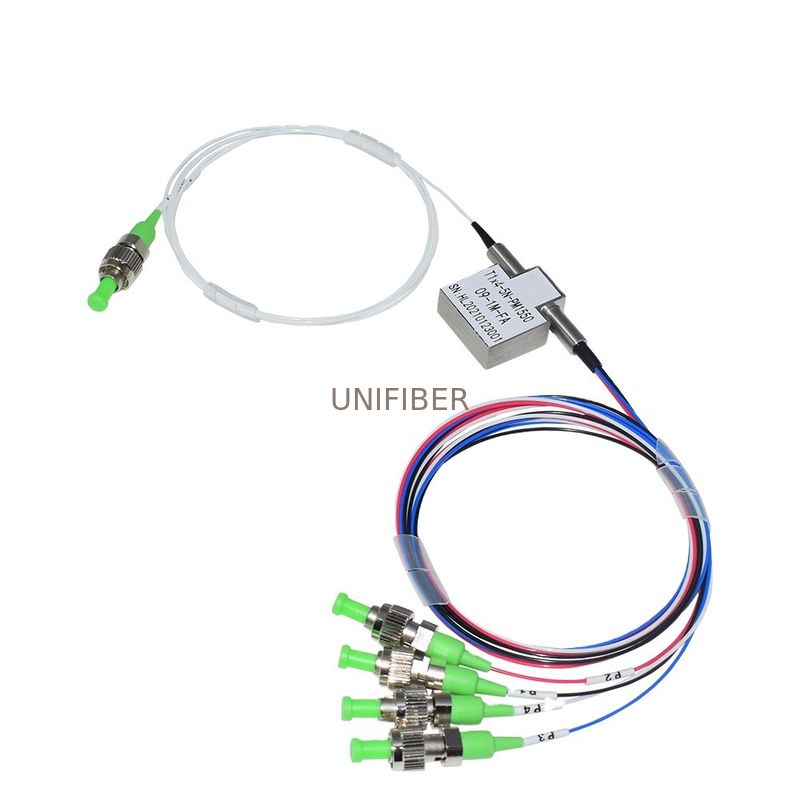

Polarazation Maintaining 1x4 Mechanical Fiber Optical Switch 1550nm connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. The mechanical operation offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MMS fiberoptic switches are true switching solutions for optical networking applications.
Features:
Wide band operation
Low insertion loss
Low PDL
High cross talk
High stability and reliability
Path without epoxy
Application:
OADM
WAN
Laboratory
Monitory & detection
| Parameters | Specifications | Unit |
| Operating Wavelength | 1260~1620(SM),850(MM) | nm |
| Insertion Loss | ≤1.0 | dB |
| Wavelength Dependent Loss | ≤0.25 | dB |
| Polarization Dependent Loss | ≤0.05 | dB |
| Temperature Dependent Loss | ≤0.25 | dB |
| Return Loss | SM≥50 MM≥30 | dB |
| Cross Talk | SM≥55 MM≥50 | dB |
| Switch Time | ≤8 | ms |
| Repeatability | ≤±0.02 | dB |
| Durability | ≥107 | times |
| Operating Voltage | 3 or 5 | V |
| Switch Type | Non-Latching/Latching | |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -40~+85 | ℃ |
| Optical Power | ≤500 | mW |
| Dimension | 23.0L×27.0W×8.2H | mm |
