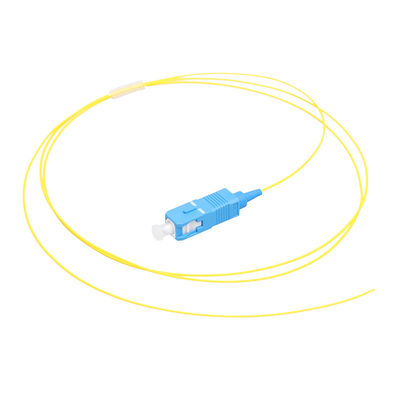

SC UPC Simplex G657A1 Fiber Optic Pigtail 900um Tight Buffer 1m

Large Image : SC UPC Simplex G657A1 Fiber Optic Pigtail 900um Tight Buffer 1m

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	SC fiber optic pigtail 900um tight buffer

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	Negotiable

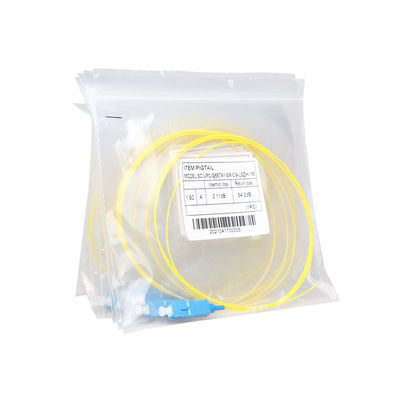

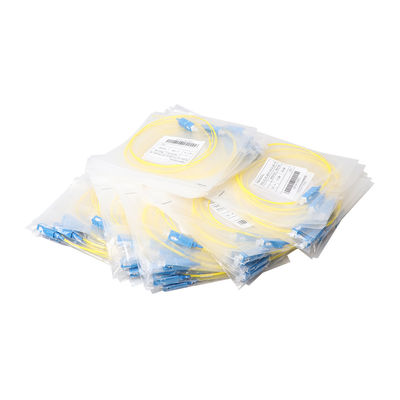

Packaging Details:	PE bag
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Product:	SC/UPC Single Mode Simplex Fiber Optic Pigtail 900um Tight Buffer 1m	Connector:	SC/UPC
Fiber Type:	G657A1	Cable Type:	900um Tight Buffer
Length:	1m	Name:	Optical Fiber Pigtail
High Light:	SC UPC Fiber Optic Pigtail , Simplex G657A1 Fiber Optic Pigtail , 900um Buffer Multimode Fiber Pigtail

Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Features
SC, LC, FC, MU, ST, MT-RJ, E2000 connector available

Superior qualified standard PC, APC, UPC, SPC polishing

φ0.9mm, φ2.0mm, φ3.0mm cable optional

Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available

Available in fiber bunch, ribbon fan-out, pigtail available

Simplex and duplex connector available

Low IL and High RL

Good exchange ability and good durability

Item	SM(Single Mode)			MM(Multimode)
Fiber Cable Type	G652D/G655/G657A1/G657A2			OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125			62.5/125	50/125
Cable OD (mm)	0.9/1.6/1.8/2.0/2.4/3.0
Endface Type	PC	UPC	APC	UPC	UPC
Typical Insertion Loss (dB)	<0.2	<0.15	<0.2	<0.1	<0.1
Return Loss (dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2		<0.3	<0.15
Interchangeability (dB)	<0.1		<0.15	<0.1
Anti-tensile Force (N)	>70
Temperature Range (℃)	-40~+80
